Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 20

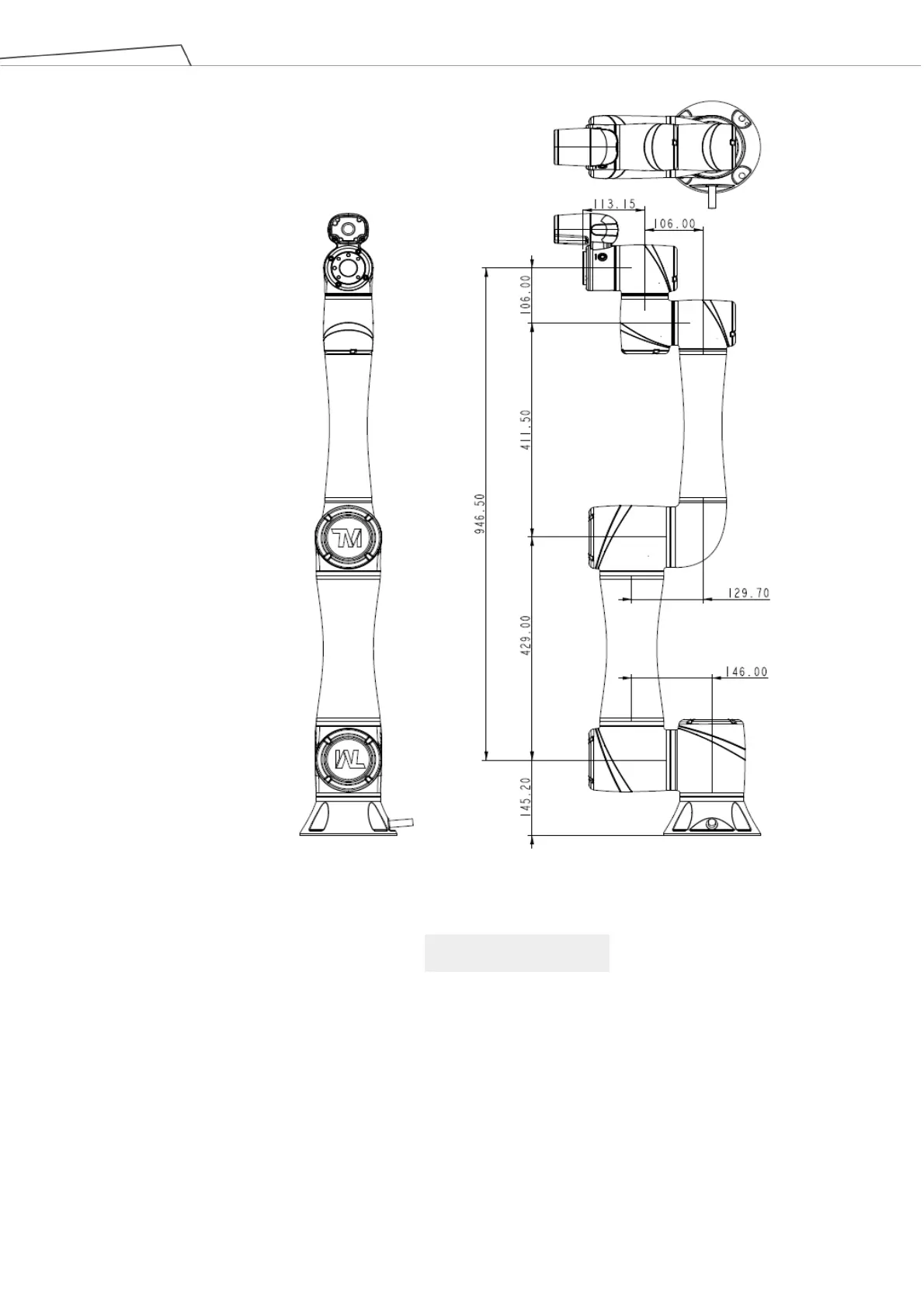

Figure 6: Dimension of TM5-900 / TM5M-900
*All measures are in mm.
TM5-900 / TM5M-900
