Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 62
5.5 Control Box Interfaces

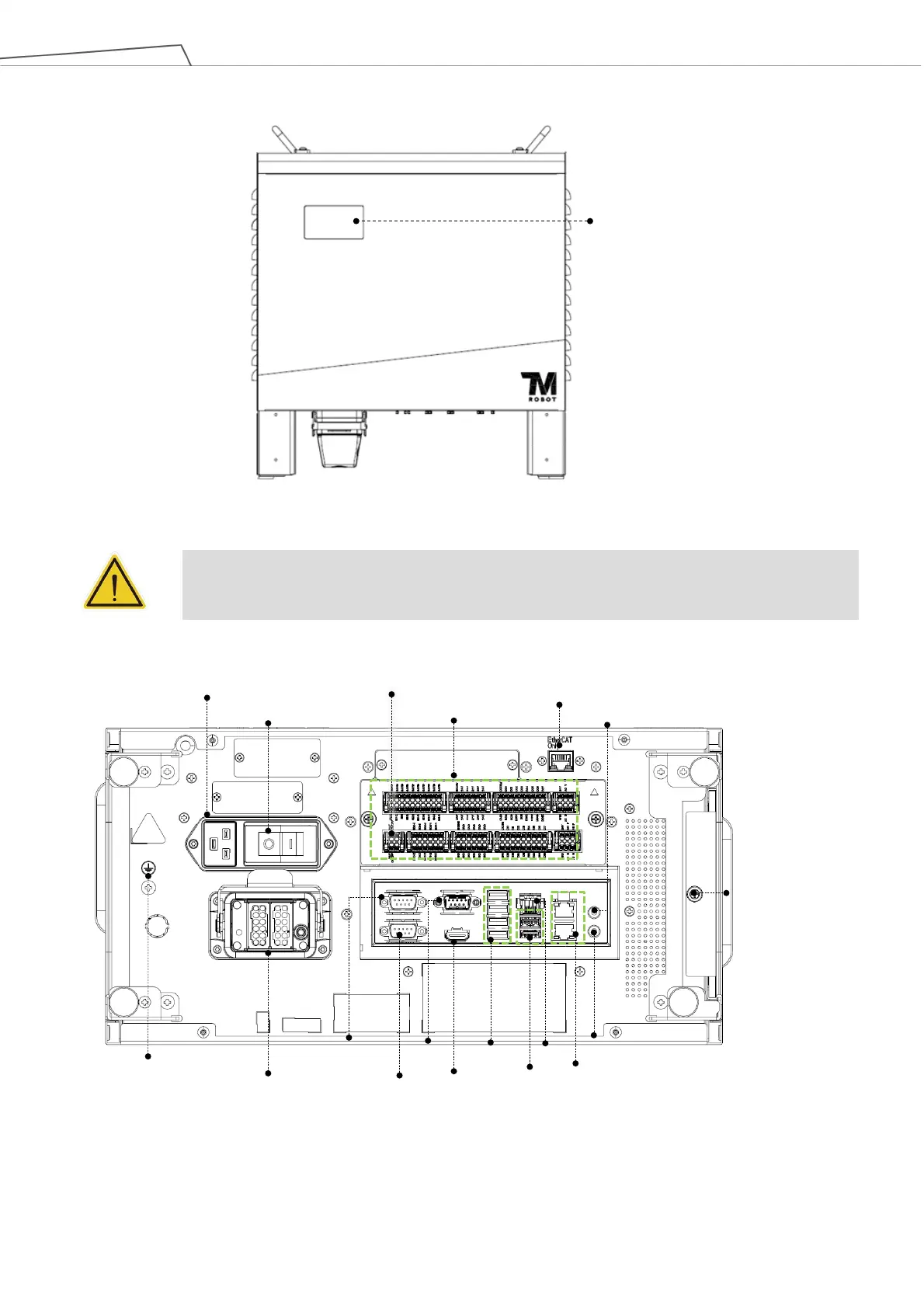

Figure 58: Front View of the Control Box
CAUTION:
The ETHERCAT interface can only be used to connect ETHERCAT devices. Improper
connection may cause the robot to stop.
Figure 59: Interfaces of the TM5-700 / TM5X-700 / TM5-900 / TM5X-900 Series
Robot Status Display
v
USB3.0*2
COM1
Robot Cable Adapter
USB 2.0 *4
HDMI
LAN for GigE Camera*2
EtherCAT
Line-out
Air Filter Screw
AC Adapter
AC Power Switch
Power Remote ON/OFF
COM2
COM3
LAN
Mic-in
I/O Interface
PE
