Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 38

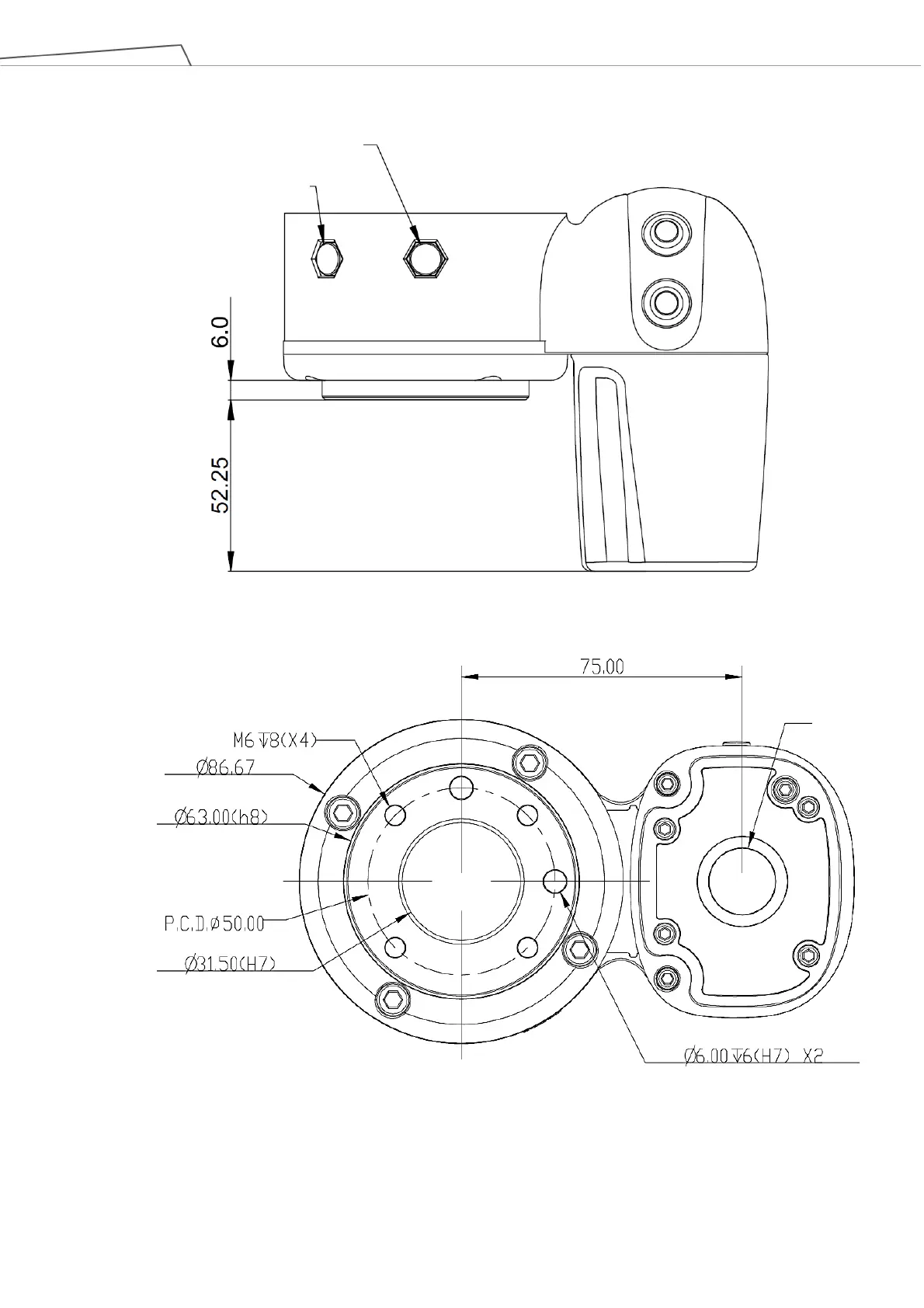

4.2.2.2 End Flange Surface
Figure 27: References of End Flange Surface
*All measures are in mm.
