System Configuration
RFID System
User’s Manual
SECTION 1
Product Overview
• Using a V680-H01 Antenna
The V680-H01 Antenna can be connected only to the V680-CA5D01-V2 ID Controller. It cannot be used with the V680-
CA5D02-V2 ID Controller

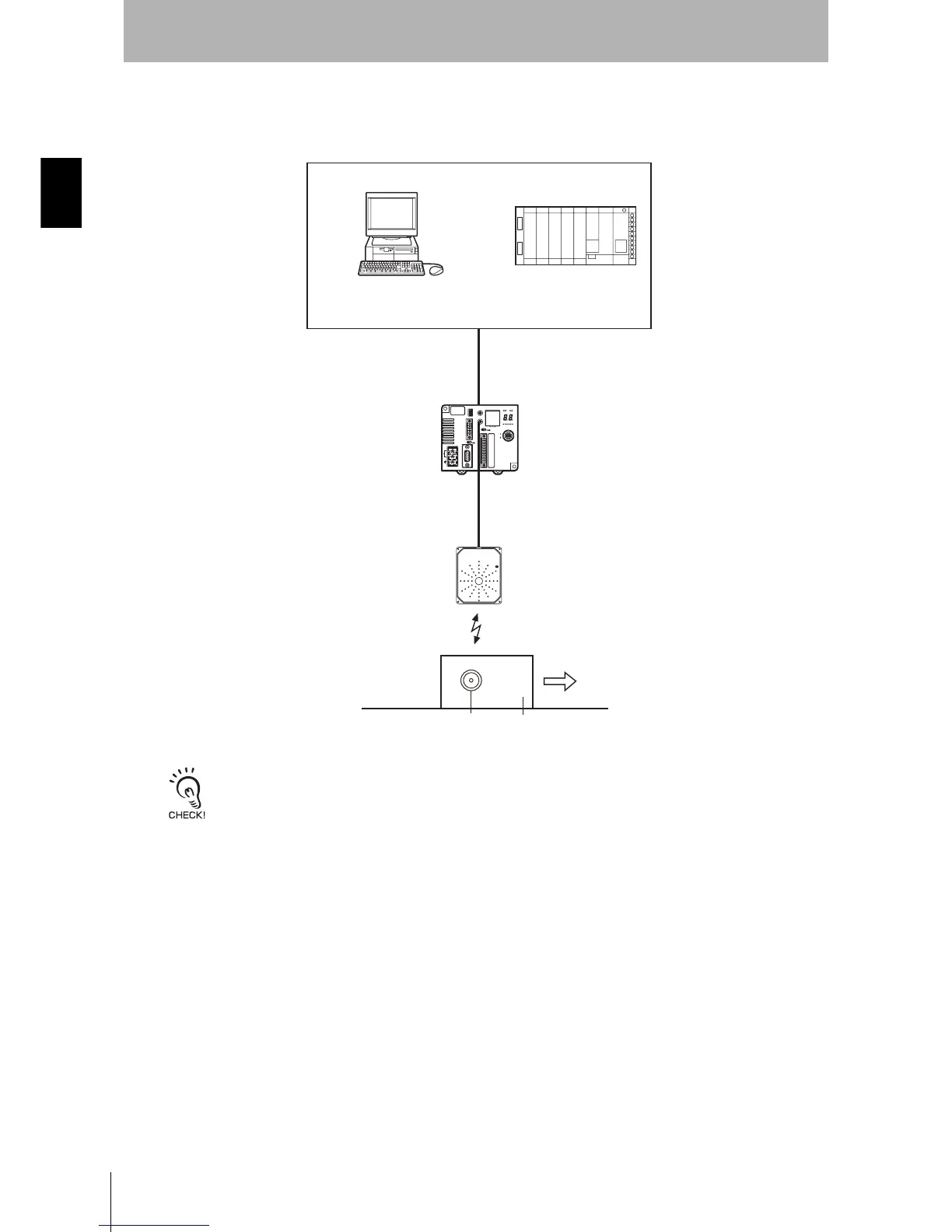

Programmable Controller
Personal computer
RS-232C, RS-422, or
RS-485 interface
Tag
Pallet or other object
ID Controller
V680-CA5D01-V2
(PLC)
Antennas
V680-H01

Omron V680-CA5D01-V2 Specifications

General

Model	V680-CA5D01-V2
Series	V680
Type	RFID Controller
Input Voltage	24 VDC
Frequency	13.56 MHz
Power Supply Voltage	24 VDC ±10%
Communication Ports	RS-232C
Communication Interface	RS-232C
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 65°C
