RFID System
User’s Manual
SECTION 3
Switch Settings
SECTION 3
Preparations for Communications
Responses to the Host Device
· Pin 1 on DIP Switch SW3 Turned OFF (DIP Switch Settings Enabled)
The communications settings from pins 3 to 8 of DIP switch SW3 are output as the response.
· Pin 1 on DIP Switch SW3 Turned ON (Internal Settings Enabled)
The communications settings made with the COMMUNICATIONS SET (TR) command are output as the
response.

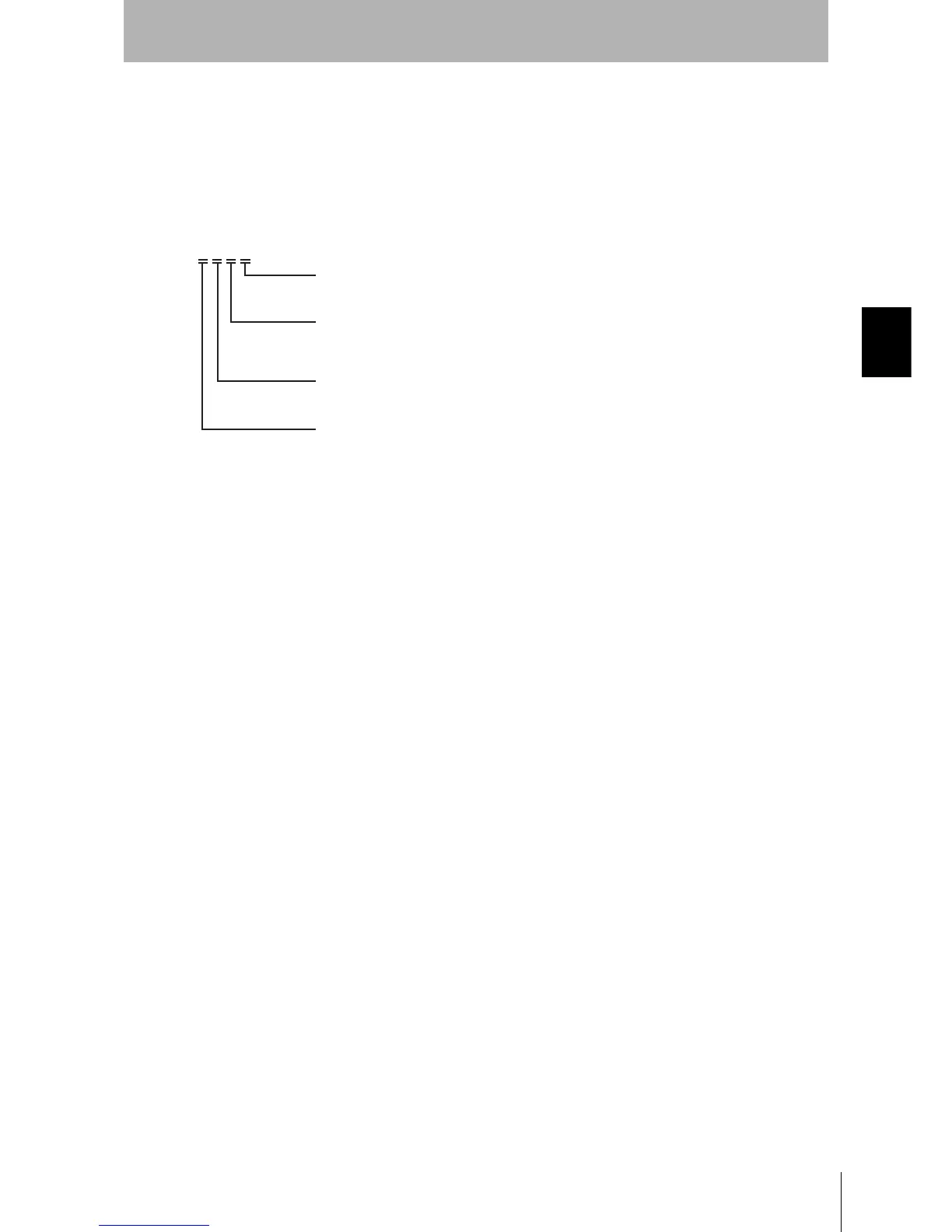

TR 3 7 2 2 * [CR]
Stop bit length
Parity
Data length
Baud rate
"3": 9,600 bps (default)
"4": 19,200 bps
"5": 38,400 bps
"6": 115,200 bps
"7": 7 bits (default)
"8": 8 bits
"0": None
"1": Odd
"2": Even (default)
"1": 1 bit
"2": 2 bits (default)
To Next Page
