Omron V680-CA5D01-V2 User Manual

84
SECTION 4
Write Protection
RFID System
User’s Manual
SECTION 4
Functions

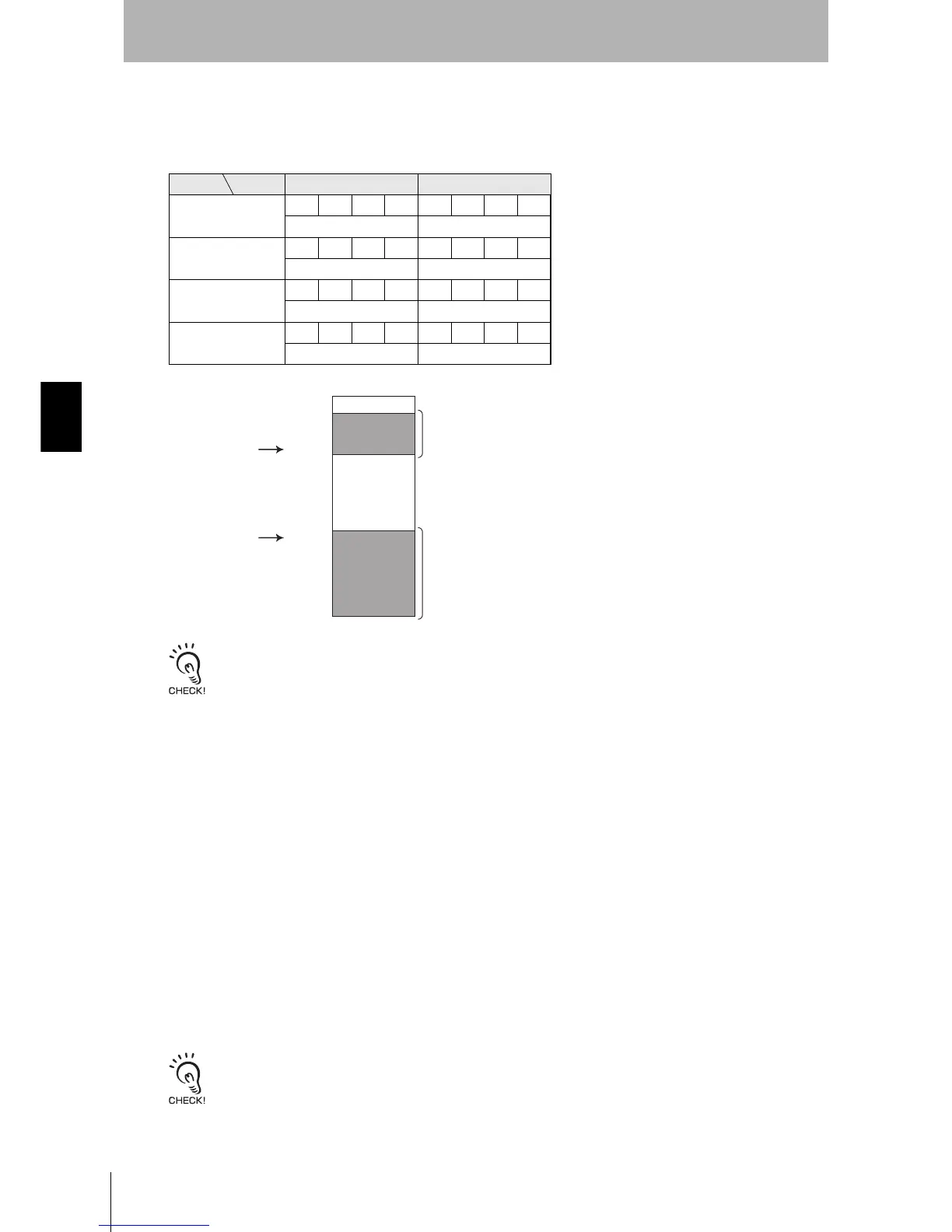

Start Address Is Higher Than End Address
The memory area between the start address and the last ID Tag address, as well as the area between
0004H and the end address will be write-protected.
The write protection setting area of the ID Tag cannot be write-protected.
 Disabling Write Protection When Using V680 Commands
 Disabling ID Tag Write Protection for Part of the Area Being Used:
To temporarily disable write protection when you want to, for example, rewrite data that is being write-
protected, set the most significant bit of address 0000H for the ID Tag memory to “0.”
 Disabling Write Protection for all OMRON-made RFID systems:
To disable write protection in order to, for example, use the entire memory area of the ID Tag as user
memory, use either of the following methods to set all of the ID Controllers.
• Using the DIP Switch (when pin 1 on SW3 is set to OFF):
Pin 7 on SW4: Set write protection to “ON” to disable write protection.
• Using the Internal Setting (when pin 1 on SW3 is set to ON):
PARAMETER SET (SP) COMMAND processing code “H”: Set the write protection setting to ”00” to
disable write protection.
Precautions on Using Write Protection
The write protection function is supported only for these OMRON ID Controllers. It is not valid for reader/writers manu-
factured by other companies.
Address Bit Upper digits Lower digits
0000
H
1 0000001
81
0001
H
00100000
20
0002
H
00000000
00
0003
H
00010101
15
0000H
0004H
03E7H
0015H
0120H
Last address
Start address
Write-protected area
Write-protected area
