Section 2 INSTALLATION & CONNECTION
Section 2
Sensor Head
39
ZFV
User’s Manual
• ZFV-SR50
(Example)
When using a ZFV-SR50 Sensor Head at
a detection range of 25 mm required for
the location of the sensing object, the set-
ting distance of Sensor Head becomes
95mm.

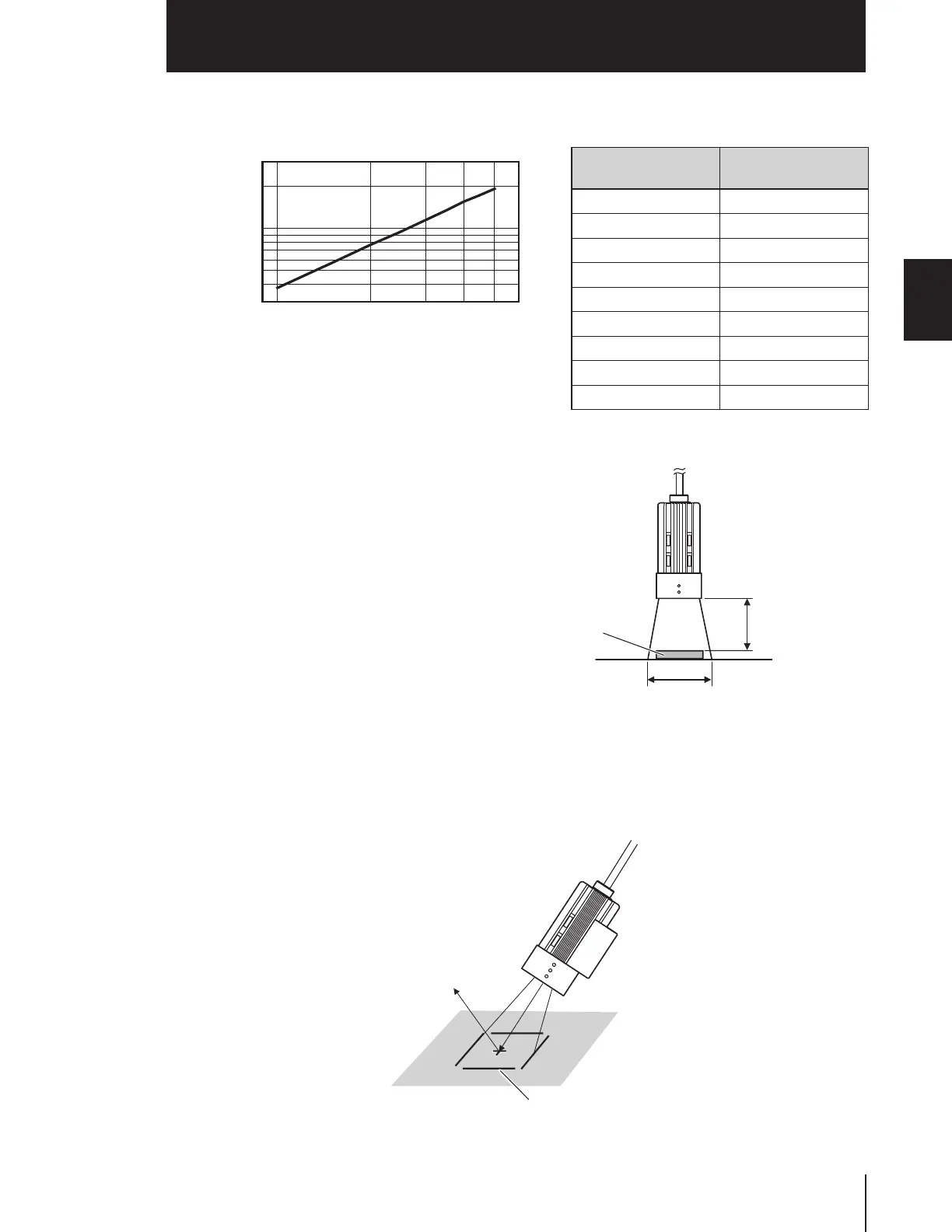

● About installation for reflective workpieces
Install the Sensor Head at an angle to prevent mirror reflection light from being picked
up by the sensor.
Detection range H
(mm)
Setting distance L
(mm)
10 38
15 57
20 76
25 95
30 115
35 134
40 157
45 174
50 194
30
100
300
910 60
Setting distance L (mm)
Detection range H (mm)
Setting
distance L
Detection range H
Workpiece
Mirror reflec-
tion light
Guide light
