Performing Measurement
When the mode is switched to the RUN mode, measurement is executed, and the
measurement result is output to the external device.
■

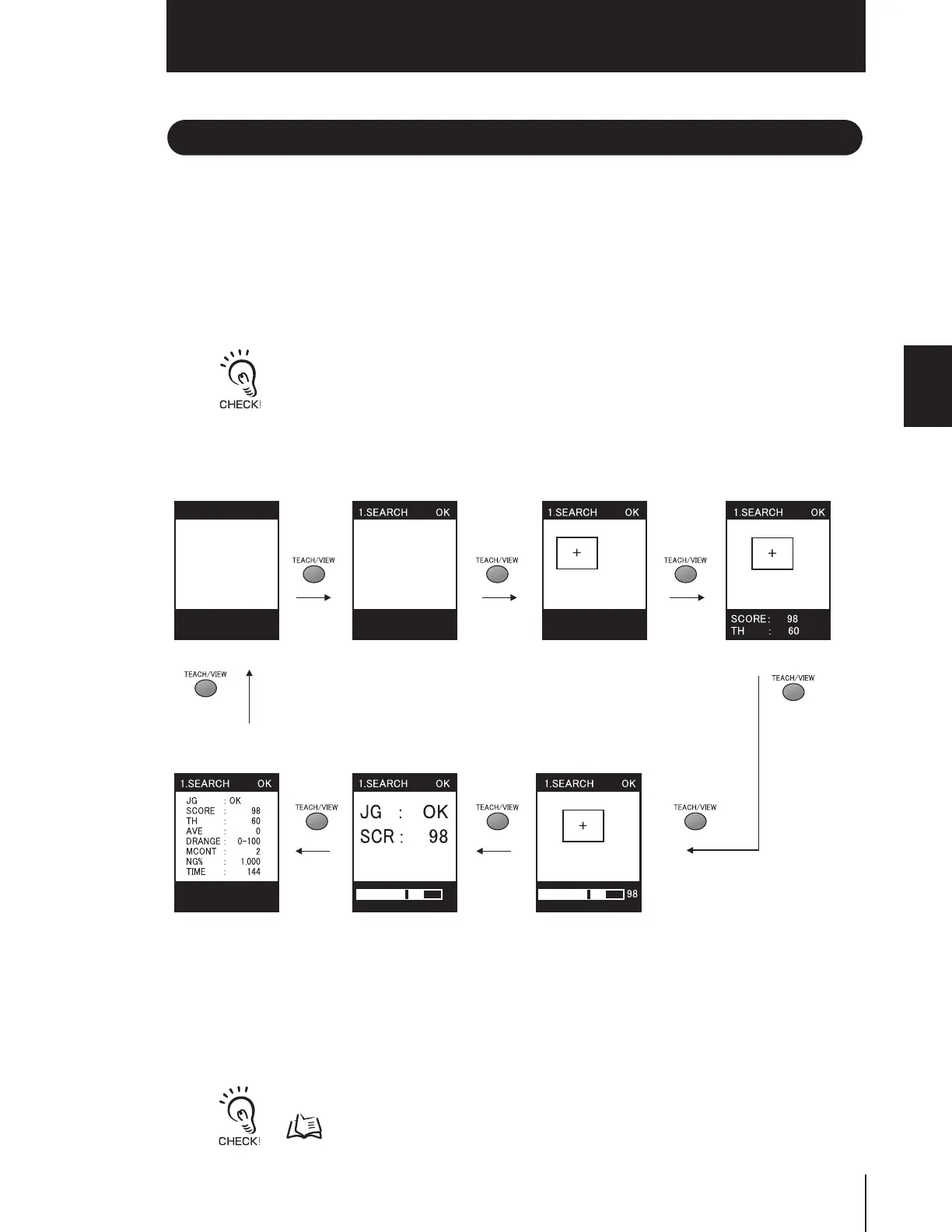

Switching the display during measurement
The display details are switched by pressing the TEACH/VIEW key during measure-
ment.
●Measurement result (*3)
●Teaching area ●Teaching area and mea-
surement result (*1)
●Teaching area and control
bar (*2)
●Enlargement of mea-
surement result and
control bar (*2)
●Only image display ●Judgment result
(image only display + 4 ms) (image only display + 12 ms) (image only display + 18 ms)
(image only display
+ 180 ms)
(image only display
+ 50 ms)
(image only display
+ 33 ms)
(*1): In the case of [BRIGHT], the display can be switched (average density value, density distribution value) by
the LEFT/RIGHT keys.
In the case of [AREA], the display can be switched to binary image by the LEFT/RIGHT keys.
(*2): The control bar shows the measurement result and judgment threshold value.
(*3): The measurement time (TIME) indicated here is the shortest measurement time in “only image display.”
The measurement time differs according to the type of display image. The measurement time for
“only image display” is the fastest. The number in parentheses ( ) serves as a guideline when “only
image display” is taken as the reference.
When the image is switched during measurement, the measurement time changes. For this rea-
son, monitor the ENABLE signal, wait for the ENABLE signal to turn ON, and then input the TRIG
signal.
About meaning of display details in measurement results
p.81
