Section 3 SETUP
Section 3
Changing the Input/output Conditions
61
ZFV
User’s Manual

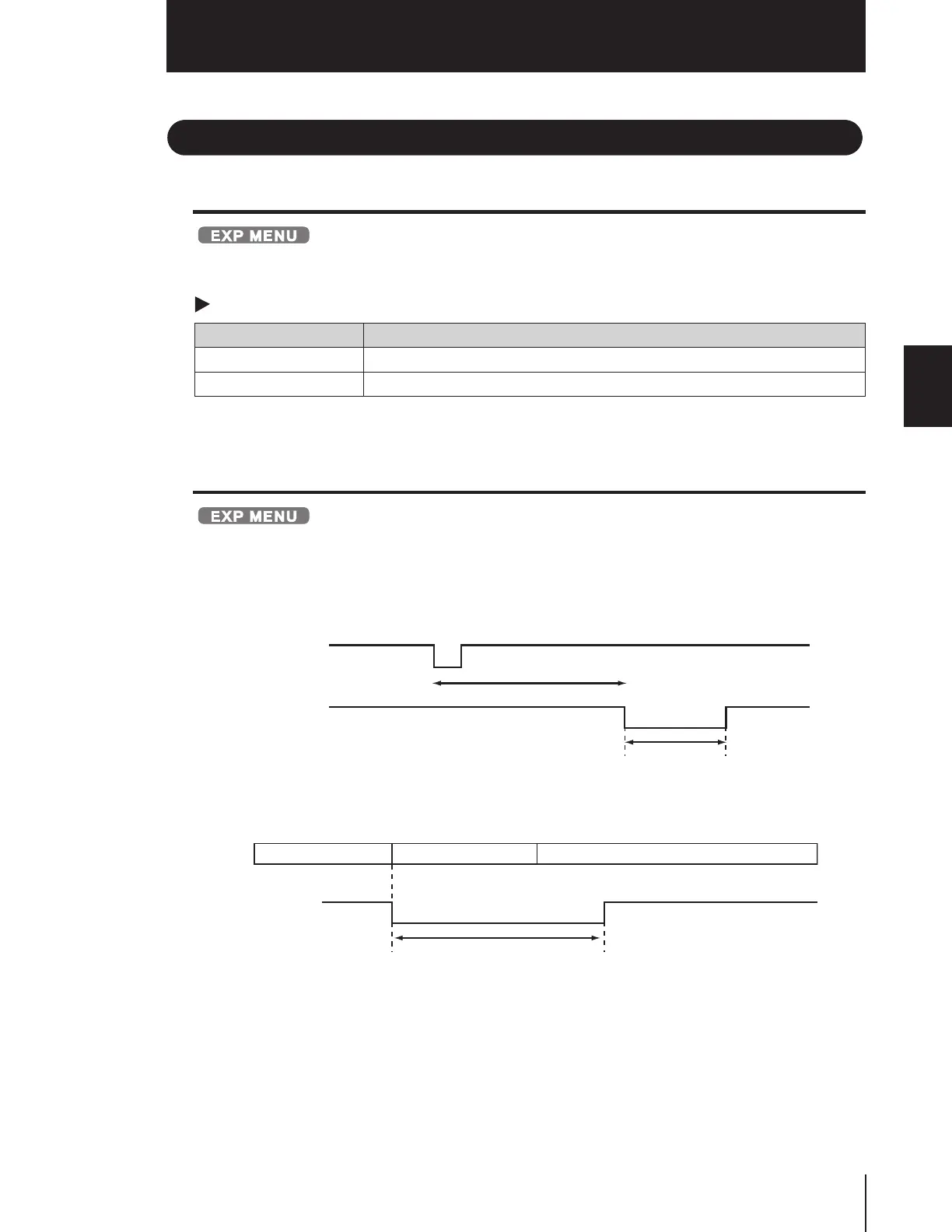

Changing the Input/output Conditions
Selecting the ON conditions
Set whether to turn the OUTPUT signal ON when OK is judged or when NG is judged.
MENU Mode-[SYS2]-[OUTPUT]-[ON STATUS]
One-shot output
OUTPUT turns ON for only the preset output time from when the OUTPUT signal turns
ON.
● Synchronous measurement
● Continuous measurement
Setting Description
OK ON Turns the OUTPUT signal ON when OK is judged.
NG ON (default value) Turns the OUTPUT signal ON when NG is judged.
OFF
ON
TRG
OFF
ON
OUTPUT
Output time
Measurement processing
OFF
ON
OUTPUT
Judged as NG
OUTPUT ON at OK judgment
Output time
Judged as OK Judged as NG
To Next Page
