Section 3 SETUP
Section 3
Customizing Measurement conditions
73
ZFV
User’s Manual
■

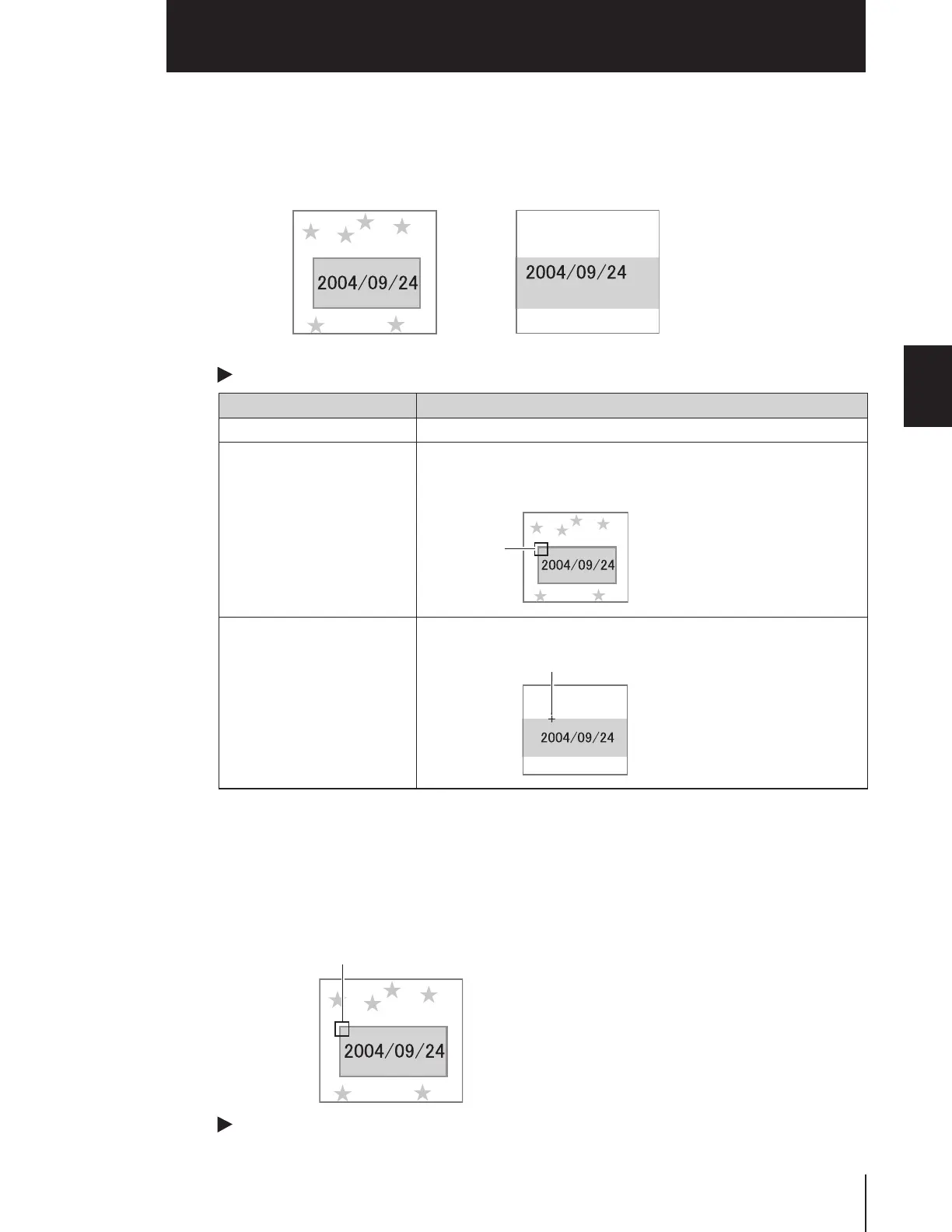

Select whether or not to perform Position compensation
Set Position compensation for improving detection accuracy in the following instances:
MENU Mode-[CUSTM]-[MODE]
■
Select the content of position compensation
●
Registering models
Set this when [MODEL] is selected to [MODE]
Specify the top left coordinate and bottom left coordinate of the model.
MENU Mode-[CUSTM]-[MODE DTL]-[MODEL]
Setting Description
NONE The position is not corrected.
MODEL The model is used to correct the position.
Select this when there is a characteristics part such as a corner of a text
box.
EDGE The edge position is used to correct the position.
When printed text is out of
position
When there is a pattern in
the detection range
Model
Edge
Model
To Next Page
