B-64 Displacement sensors / Width-measuring Sensors

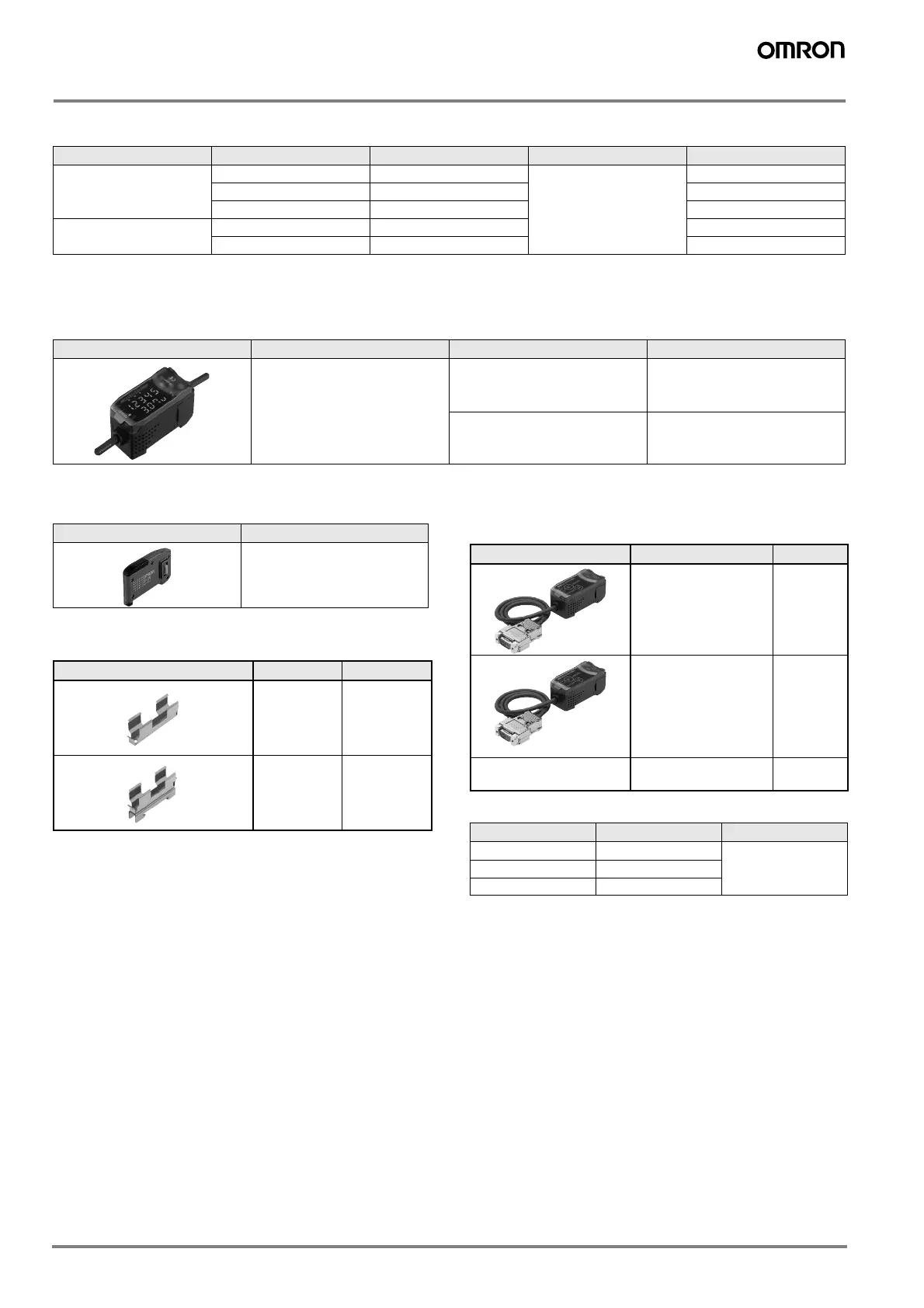

Ordering Information
Sensors
Sensor Heads
*1: For an average count of 4,096.
*2: Models with Protective Spiral Tubes are also available. Add a suffix of “-S” to the above model numbers when ordering.
(Example: ZX-ED01T-S)
Amplifier Units
Note: Compatible connection with the Sensor Head.
Accessories (Order Separately)
Calculating Unit
*Calculating Units are required to connect three or more Sensors.
Amplifier Mounting Brackets
SmartMonitor Sensor Setup Tool for Personal Computer
Connection
Cables with Connectors on Both Ends (for Extension)
Shape Dimensions Sensing distance Accuracy *1 Model
Cylindrical 3 dia. x 18 mm 0.5 mm 1 µm ZX-EDR5T
5.4 dia. x 18 mm 1 mm ZX-ED01T *2
8 dia. x 22 mm 2 mm ZX-ED02T *2
Screw-shaped M10 x 22 mm 2 mm ZX-EM02T *2
M18 x 46.3 mm 7 mm ZX-EM07MT *2
Appearance Power supply Output type Model
DC NPN ZX-EDA11
PNP ZX-EDA41
Appearance Model
ZX-CAL2 *
Appearance Model Remarks
ZX-XBE1 Attached to
each Sensor
Head
ZX-XBE2 For DIN track
mounting
Appearance Name Model
ZX-series Communica-
tions Interface Unit
ZX-SF11
ZX-series Communica-
tions Interface Unit
+
Setup Software
ZX-
SFW11EV3
CD-ROM ZX-series Sensor Setup
and Logging Software
ZX-
SW11EV3
Cable length Model Quantity
1 m ZX-XC1A 1
4 m ZX-XC4A
8 m ZX-XC8A
+
CD-ROM
