Omron ZX-E Series User Manual

B-69ZX-E Series
ZX-E Series

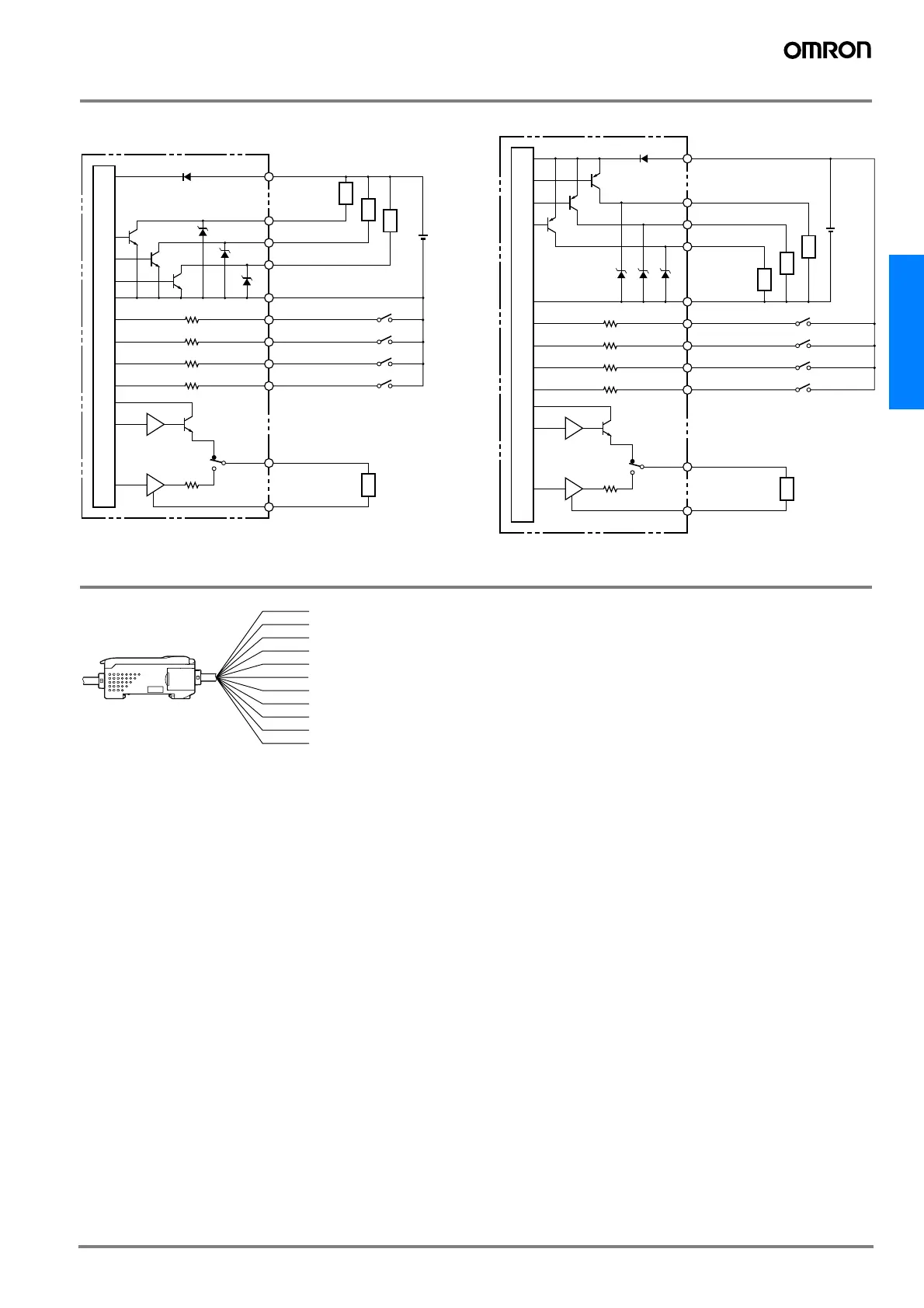

I/O Circuit Diagrams
NPN Amplifier Unit: ZX-EDA11 PNP Amplifier Unit: ZX-EDA41
Connections: Amplifier Unit
Note 1. Use a separate stabilized power supply for the Amplifier Unit,
particularly when high resolution is required.
2. Wire the Unit correctly. Incorrect wiring may result in damage
to the Unit. (Do not allow wiring, particularly the linear output,
to come into contact with other lines.)
3. Use the blue (0-V) line for the power supply and use the
shield wire (linear output ground) together with the black (lin-
ear output) line for linear output. Each of these grounds must
be used for the designed purpose. When not using the linear
output, connect the linear output ground to the 0-V ground.
Brown: 12 to 24 VDC
12 to 24 VDC
Green:
PASS judgement output
Gray:
LOW judgement output
Blue: GND (0V)
Purple: Timing input
Orange: Zero reset input
Red: Reset input
Black: Linear output
Current output: 300 Ω max.
Voltage output: 10 kΩ min.
Shield: Linear GND
Voltage output
±4V
Current output
4 to 20 mA
Current/voltage
switch
100 Ω
Load
Load
Load
Load
Internal circuits
Pink: Judgement output hold input
White:
HIGH judgement output
Brown: 12 to 24 VDC
12 to
24 VDC
White:
HIGH judgement output
Green:
PASS judgement output
Gray:
LOW judgement
output
Blue: GND (0V)
Pink: Judgement output hold input
Purple: Timing input
Orange: Zero reset input
Red: Reset input
Black: Linear output
Current output:
300 Ω max.
Voltage output:
10 kΩ min.
Shield: Linear GND
Current/voltage
switch
100 Ω
Load
Load
Internal circuits
Load
Load
Voltage output
±4V
Current output
4 to 20 mA
12 to 24 VDC
GND (0V)
HIGH judgement output
PASS judgement output
LOW judgement output
Linear output
Linear output GND
Zero reset input
Timing input
Reset input
Black
Shield
Pink
Orange
Purple
Red
Gray
Green
White
Blue
Brown
Judgement output hold input
