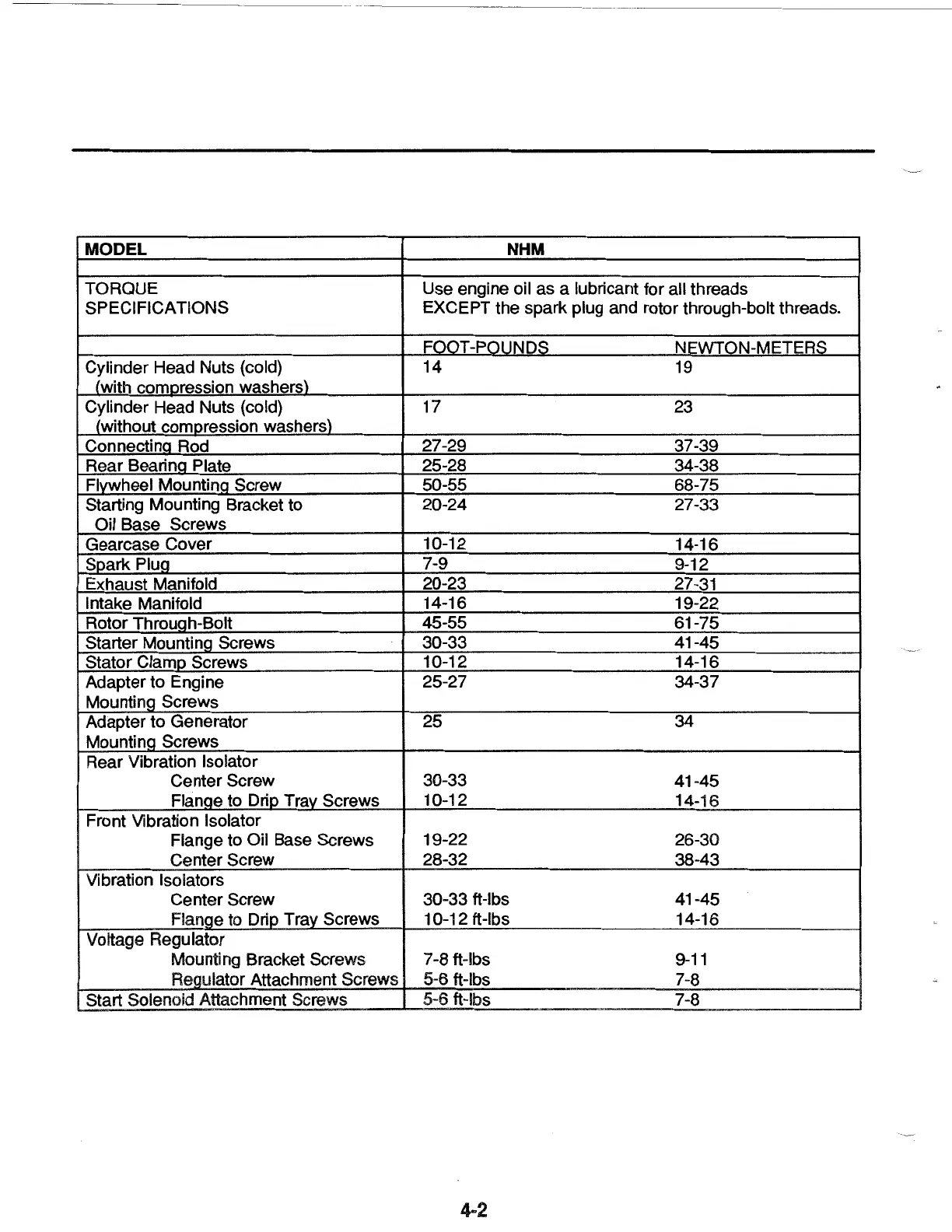

MODEL NHM
TORQUE Use engine oil as a lubricant for all threads
SPECIFICATIONS
EXCEPT the spark plug and rotor through-bolt threads.
FOOT-POUNDS NEWTON-METERS
Cylinder Head Nuts (cold}
14
19
(with
com_oression
washers\
Cylinder Head Nuts (cold)
17
23
(without comoression washers)
Connectina Rod
27-29
37-39
Rear
Bearing_
Plate
25-28
34-38
Flywheel MountinQ Screw
50-55
68-75
Starting Mounting Bracket to
20-24
27-33
Oil Base Screws
Gearcase Cover
10-12
14-16
Spark
PluQ
7-9
9-12
Exhaust Manifold
20-23
27-31
Intake Manifold
14-16
19-22
Rotor
Throu_g_h-Bolt
45-55
61-75
Starter Mounting Screws
30-33
41-45
Stator Clarno Screws
10-12
14-16
Adapter
to
Engine
25-27
34-37
Mounting Screws
Adapter to Generator
25
34
MountinQ Screws
Rear Vibration Isolator
Center Screw
30-33
41-45
Flanae to Drip Tray Screws
10-12
14-16
Front Vibration Isolator
Flange to Oil Base Screws
19-22
26-30
Center Screw
28-32
38-43
Vibration Isolators
Center Screw
30-33 ft-lbs
41-45
Flange to Drip Tray Screws
10-12 ft-lbs
14-16
Voltage Regulator
Mounting Bracket Screws
7-8 ft-lbs
9-11
Regulator Attachment Screws
5-6 ft-lbs
7-8
Start Solenoid Attachment Screws
5-6 ft-lbs
7-8
