ELECTRIC STARTER
Starter Removal and Replacement
To
remove the starter for service or replacement:
1.
Disconnect the negative (-) cable from the
starting battery.
2.
Disconnect the cable
at
the motor terminal.
3.
Remove the two starter mounting bolts and re-
move the starter.
Replacement is the reverse of removal. Torque the
mounting bolts to specifications.
CLUTCH & SPLINE
ROLL ASSEMBLY
METAL
SPRING/
PIN
RETAINER &
WASHER
~
RETURN
SPRING
I --------i
~----
Starter Disassembly

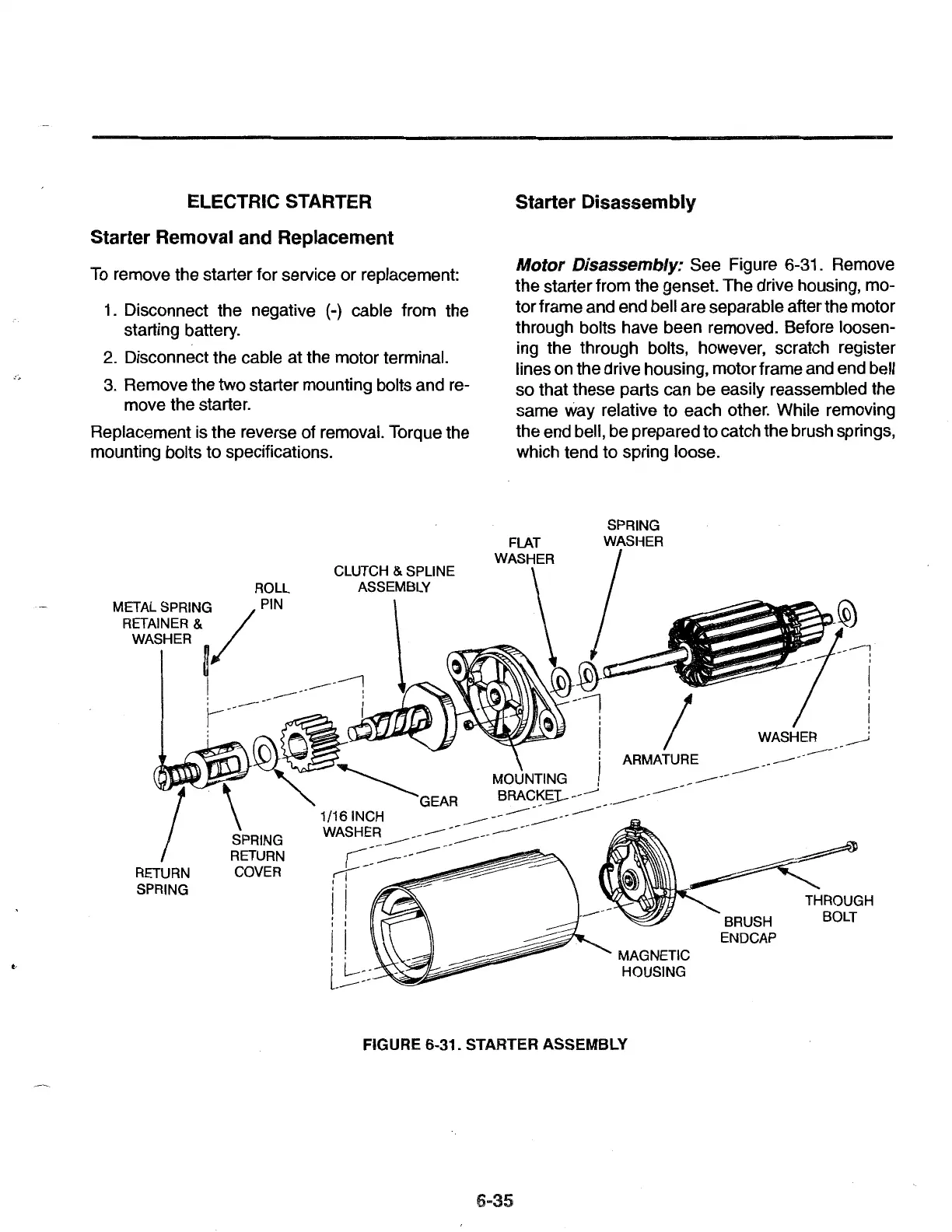

Motor Disassembly: See Figure 6-31. Remove
the starter from the genset. The drive housing, mo-
tor frame and end bell are separable after the motor
through bolts have been removed. Before loosen-
ing the through bolts, however, scratch register
lines on the drive housing, motor frame and end bell
so that these parts can be easily reassembled the
same way relative to each other. While removing
the end bell, be prepared to catch the brush springs,
which tend to spring loose.
SPRING
WASHER
MAGNETIC
HOUSING
--
-----
BRUSH
END CAP
-----
THROUGH
BOLT
FIGURE 6-31. STARTER ASSEMBLY
15-35
