LPG
System-Vapor
Withdrawal
See the Installation Manual for important recom-
mendations regarding the installation of an LPG va-
por withdrawal type of fuel supply system. Gensets
equipped for vapor withdrawal of LPG must be
equipped with a fuel shutoff solenoid valve and de-
mand regulator. These are available as a kit for
mounting near the genset. See Figure 6-29.
IAWARNINGI
LPG
is
flammable
and
explosive
and
can cause asphyxiation.
NFPA
58,
Section
1.6
requires
all
persons handling LPG to be
trained in proper handling
and
operating proce-
dures.
SOLENOID PIGTAIL
CONNECTIONS AT THE GENSET
GAS SUPPLY HOSE TO
THE CARBURETOR INLET
MOUNTING
BRACKET
FUEL SHUTOFF
SOLENOID VALVE
VENT/PRESSURE-BALANCE HOSE
(Must extend outside the genset compartment to
prevent accumuiation of LPG
in
compartmePt
in
the
event the diaphragm leaks and to prevent erratic fuel
delivery because of pressure fluctuations cause by
the cooling air flow through the compartment)
DEMAND REGULATOR
(The regulator must be mounted such that
the diaphragm is in a vertical plane, as
shown, to maintain calibrated gas pressure.)

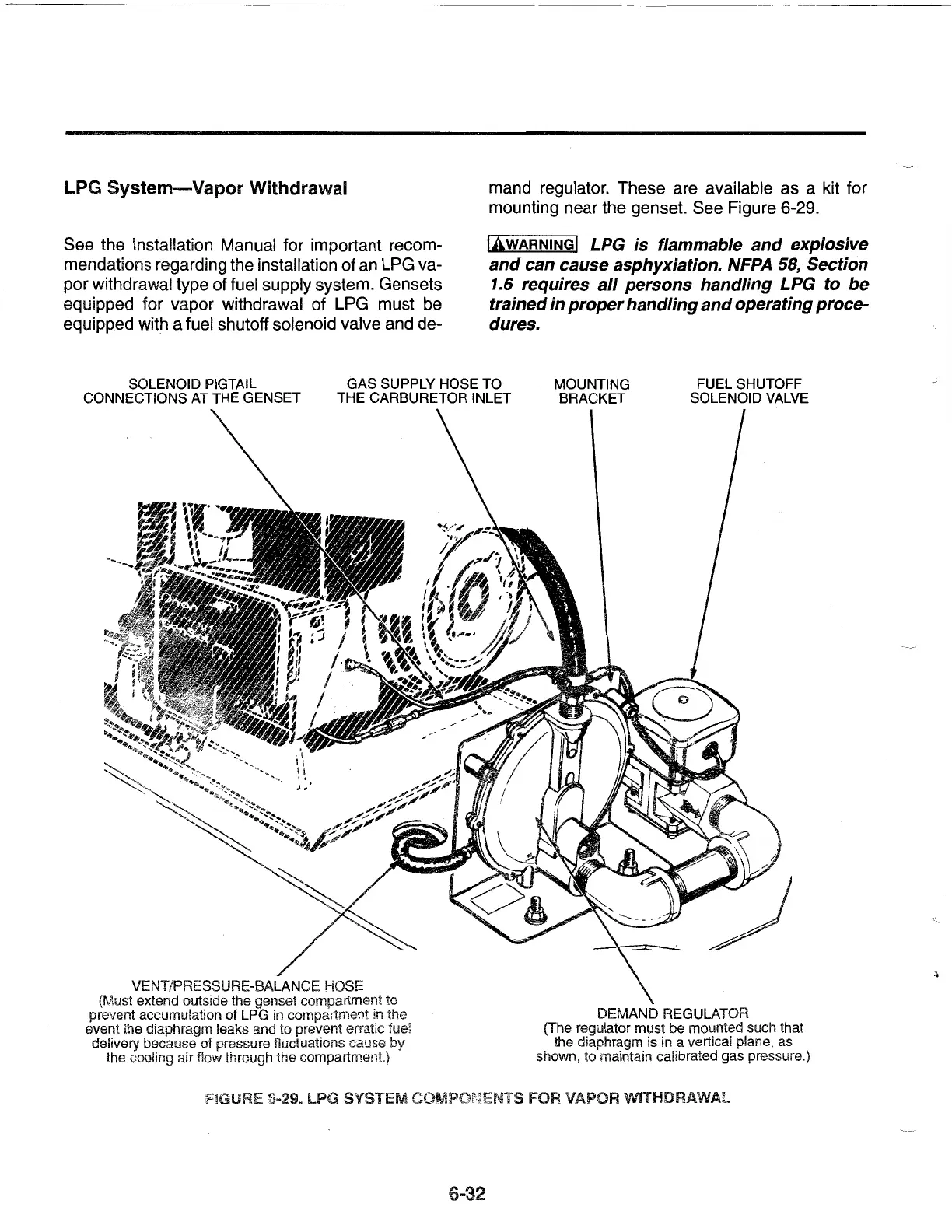

FIGURE 6-29. LPG SYSTEM
COMPOf~Et'liTS
FOR VAPOR WITHDRAWAL
6-32
