Oneida Air Systems Supercell - Wall Bracket Mounting Specifications

7oneida-air.com
43"
1,092 mm
Wall Bracket Mounting Specications

THE WALL BRACKET SHOULD BE MOUNTED TO A STURDY, REINFORCED WALL E.G. CONCRETE WALL, BRICK
WALL, WOODFRAMED WALL, ETC. THE WALL BRACKET IS DESIGNED TO WORK WITH STANDARD 16” STUD
SPACING. WALL ANCHORS CAN BE USED IF MOUNTING ON DRYWALL. THIS TEMPLATE INDICATES THE
PROPER DRILL HOLES AND THE FULL, ASSEMBLED SIZE OF THE WALL BRACKET.


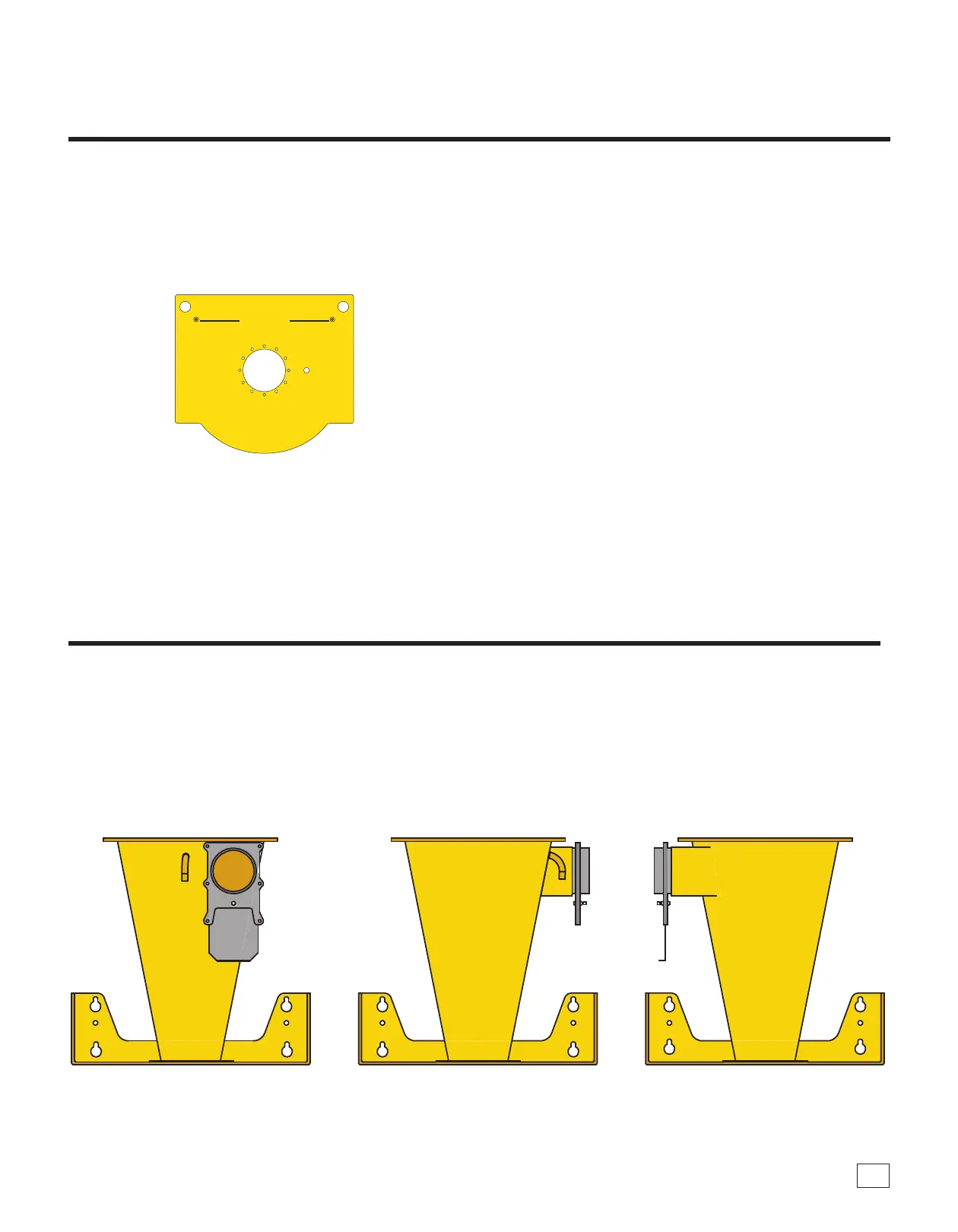

The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or perpendicular to the wall.
Decide how you want your system oriented during installation to best meet your shop’s needs. Other positions
will not work as they will hinder installation of the Rear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
Rivnuts

Note: The Wall Bracket (F) is universal to all
Supercell systems. The Rivnuts are used only
for the 14 gallon model.

Use appropriate fasteners for the wall type you are
installing your system onto, drill into and install
fasteners into the wall at all marked locations.
Maximum Fastener Size: 5/16" diameter
for the 4 keyholes
Maximum Fastener Size: #12 screw for
the rear support brace holes
Maximum Washer Size: 3/4" outside
diameter
