Onkyo A-9030 Service Manual

A-9030 / 9050 / M-5010 / ADM-20.4
Service Procedure

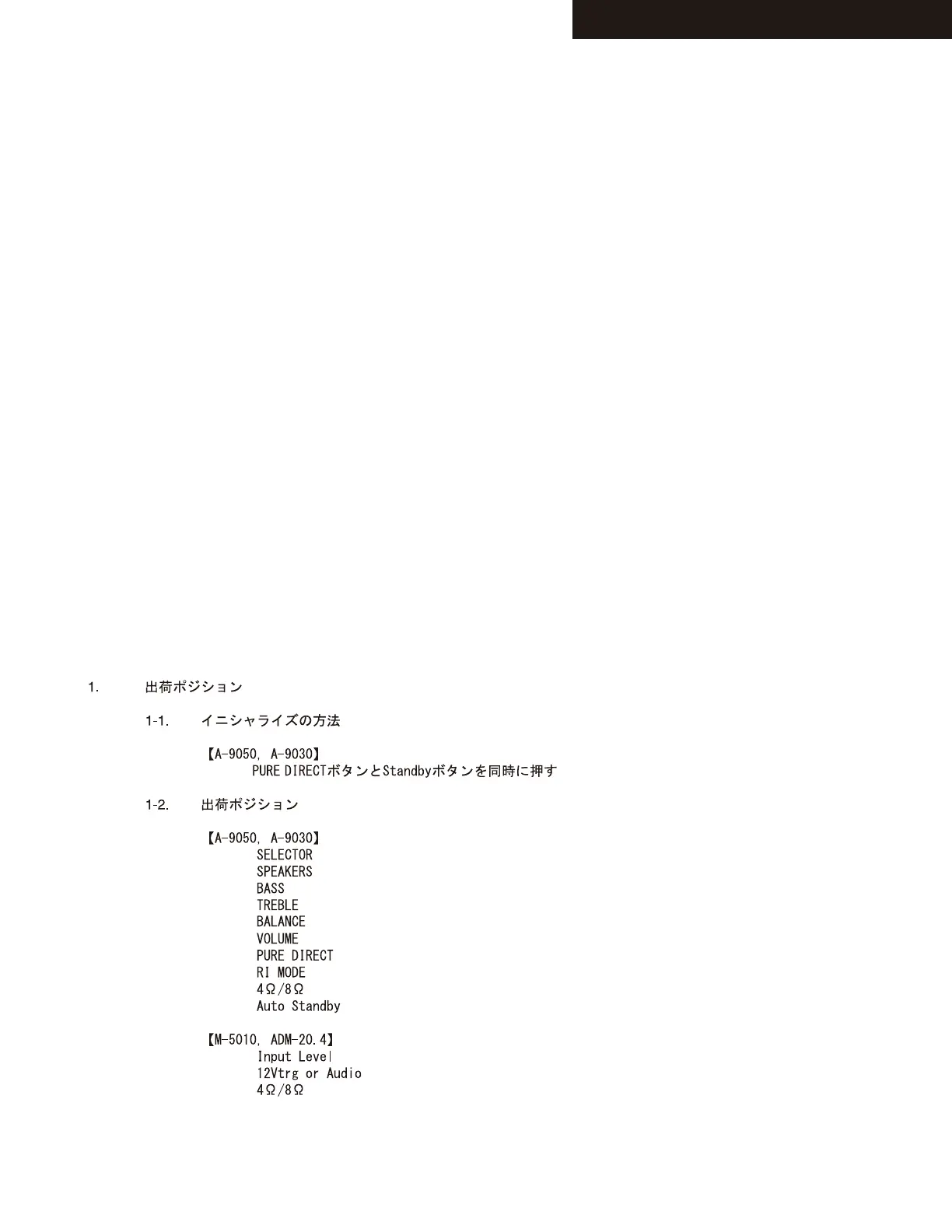

1. Setting for shipping
1-1. Initialization of memories
[A-9050, A-9030]
Push PURE DIRECT button and Standby at same time.
1-2. Initial setting
[A-9050, A-9030]
SELECTOR
SPEAKERS
BASS
TREBLE
BALANCE
VOLUME
PURE DIRECT
RI MODE
4ohm/8ohm
Auto Standby
[M-5010, ADM-20.4]
Input Level
12Vtrg or Audio
4ohm/8ohm
Auto Standby

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
