Onkyo A-9030 Service Manual

A-9030/9050/M-5010/ADM-20.4
Operation Check - 3

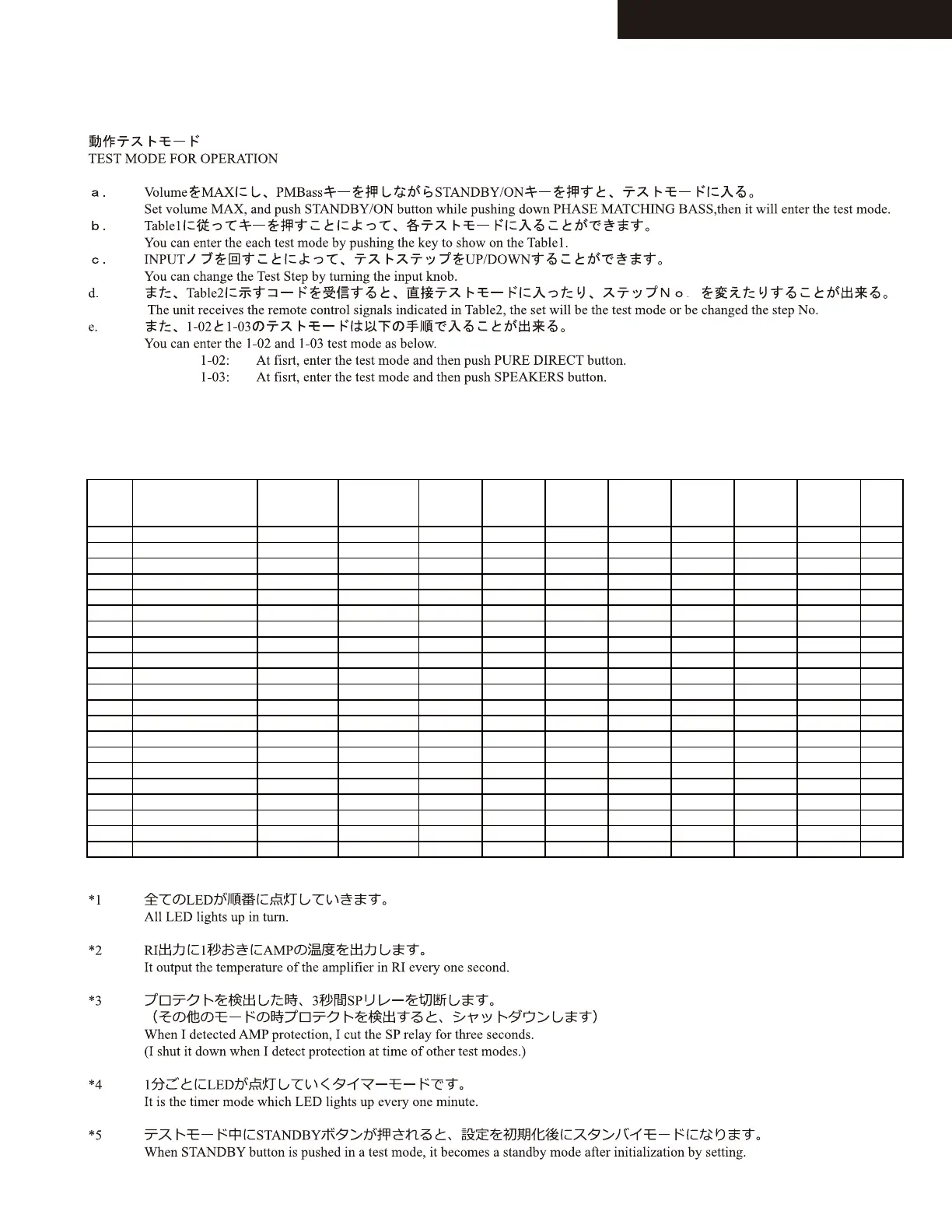

TEST Function
Analog Input
Speaker Volume Balance Bass Treble Direct PMBass AMUTE ETC
No
1-00
All LED light up.
LINE1
SPEAKER A
0dB CENTER 0dB 0dB ON OFF OFF *1
1-01
Thermal test mode.
LINE1
SPEAKER A
0dB CENTER 0dB 0dB ON OFF OFF *2
1-02
Protect test mode.
LINE1
SPEAKER A
0dB CENTER 0dB 0dB ON OFF OFF *3
1-03
Idling timer mode.
LINE1
SPEAKER A
0dB CENTER 0dB 0dB ON OFF OFF *4
2-00
Direct Volume Max.
LINE1
SPEAKER A
MAX CENTER 0dB 0dB ON OFF OFF
2-01
Direct Volume Min.
LINE1
SPEAKER A
MIN CENTER 0dB 0dB ON OFF OFF
2-02
Tone Volume Max.
LINE1
SPEAKER A
MAX CENTER 0dB 0dB OFF OFF OFF
2-03
Tone Balance Rmax.
LINE1
SPEAKER A
MAX RMAX 0dB 0dB OFF OFF OFF
2-04
Tone Balance Lmax.
LINE1
SPEAKER A
MAX LMAX 0dB 0dB OFF OFF OFF
2-05
Tone Bass Max.
LINE1
SPEAKER A
MAX CENTER MAX 0dB OFF OFF OFF
2-06
Tone Bass Min.
LINE1
SPEAKER A
MAX CENTER MIN 0dB OFF OFF OFF
2-07
Tone Treble Max.
LINE1
SPEAKER A
MAX CENTER 0dB MAX OFF OFF OFF
2-08
Tone Treble Min.
LINE1
SPEAKER A
MAX CENTER 0dB MIN OFF OFF OFF
2-09
Tone PMBass ON.
LINE1
SPEAKER A
MAX CENTER 0dB 0dB OFF ON OFF
2-10
Amute ON.
LINE1
SPEAKER A
MAX CENTER 0dB 0dB ON OFF ON
2-11
Volume -40dB.
PHONO
SPEAKER A
-40dB CENTER 0dB 0dB ON OFF OFF
2-12
Phono Volume Max.
PHONO
SPEAKER A
MAX CENTER 0dB 0dB ON OFF OFF
2-13
Phono Volume Min.
PHONO
SPEAKER A
MIN CENTER 0dB 0dB ON OFF OFF
3-00
Digital3 Input Test.
D3
SPEAKER A
MIN CENTER 0dB 0dB ON OFF OFF

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
