Onkyo A-9030 Service Manual

A-9030/9050/M-5010/ADM-20.4
Operation Check - 2

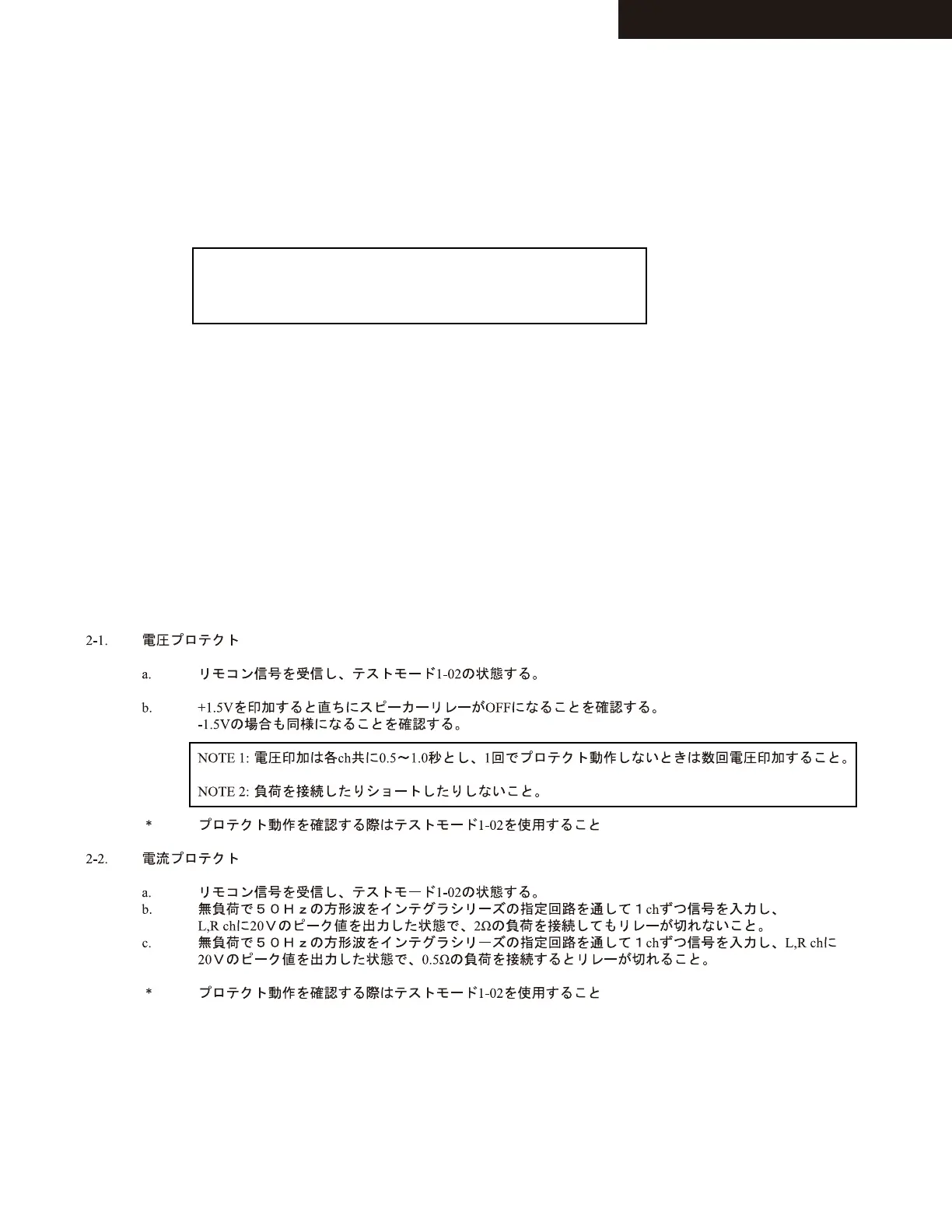

2-1. Voltage protection
a. The unit receives the remote control signal, it goes into the test mode 1-02.
b. The speaker relay become OFF immediately after "D.C. 1.5V inputs" to CD SELECTOR to check L and R.
The same as above when "D.C. -1.5V" inputs at each place.
NOTE 1: Limit time to apply voltage is 0.5-1.0 seconds each channel.
When protection operation does not occur at once, try several times.
NOTE 2: Don't connect load nor short speaker terminals.
* When you check this protection, you must use the test mode 1-02.
2-2. Current protection
a. The unit receives the remote control signal, it goes into the test mode 1-02.
b. The relay shall be ON when 2 ohm load is connected to each channel under the conditions of
Peak-to-zero 20V output for L,R channels and no load by using the INTEGRA amplifier series
Designated circuit with 50Hz square wave.
c. The relay shall be OFF when 0.5 ohm load is connected to each channel under the conditions of
Peak-to-zero 20V output for L,R channels and no load by using the INTEGRA amplifier series
Designated circuit with 50Hz square wave.
* When you check this protection, you must use the test mode 1-02.

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
