Onkyo A-9030 Service Manual

A-9030/9050/M-5010/ADM-20.4

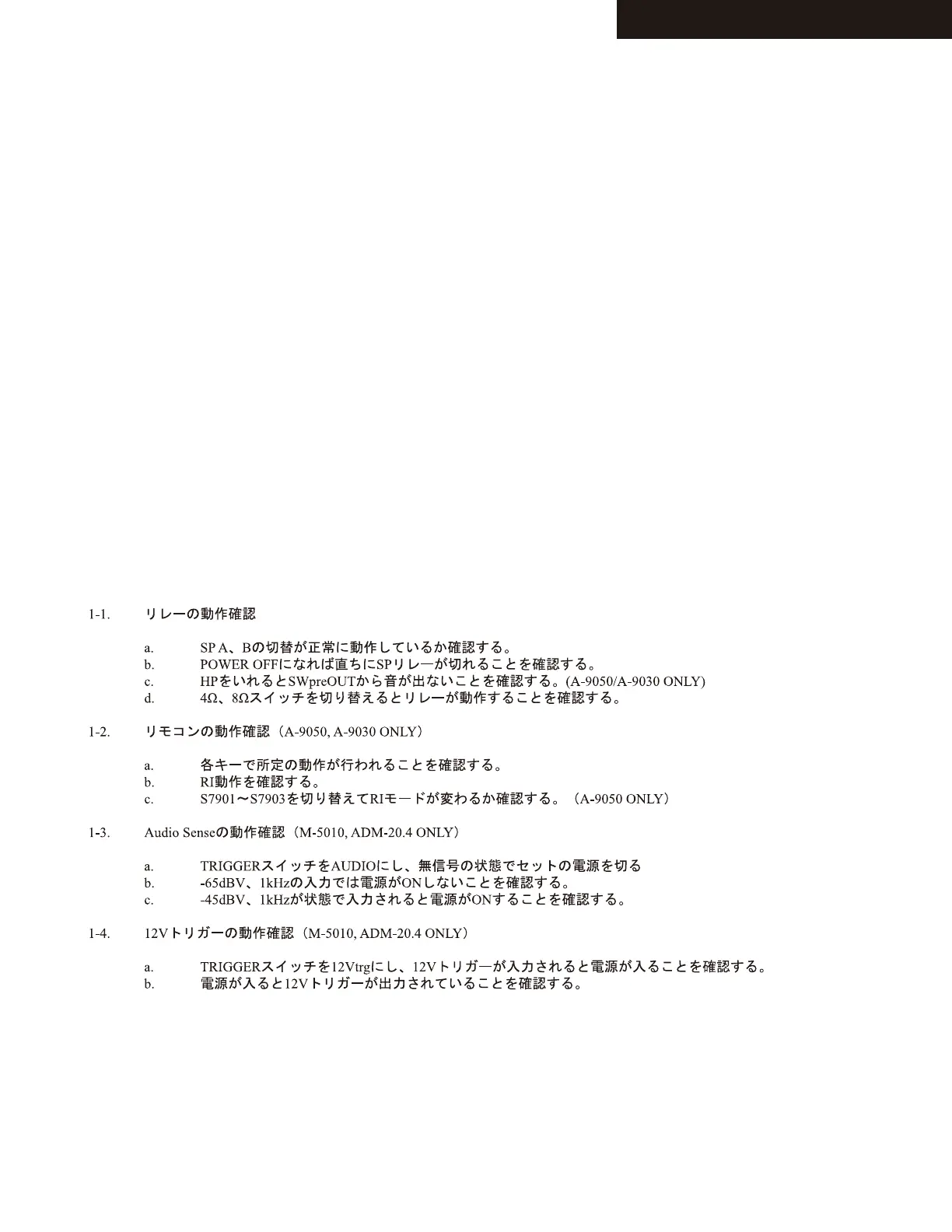

Operation Check - 1
1-1. Confirm Relay operation
a. Confirm that the relay of SP A and the relay of SP B operate normally respectively by SPEAKER A/B TRIM.
b. It is confirmed that the relay cuts at once if becoming POWER OFF.
c. Confirm no-sound from SWpreOUT when you insert HP JACK. (A-9050 / A-9030 ONLY)
d. Confirm relay operation, when 4ohm-8ohm switch is change to the other possition.
1-2. Confirm of remote controll operations.(A-9050, A-9030 ONLY)
a. Confirm that specified operations for each button are made.
b. Confirm the RI operation.
c. Confirm the change of RI mode to swith S7901-S7903 (A-9050 ONLY)
1-3. Confirm of Audio Sense operations.(M-5010, ADM-20.4 ONLY)
a. TRIGGER switch is AUDIO at the condition of no input, and it turns off power.
b. Confirm that it dosen't become the POWER ON ,if "-65dBV, 1KHz" inputs.
c. Confirm that it becomes the POWER ON ,if "-45dBV, 1KHz" inputs.
1-4. Confirm of 12V trigger operations.(M-5010, ADM-20.4 ONLY)
a. TRIGGER switch is 12Vtrg at the condition of no input, and it turns off power.
Confirm it become the POWER ON if 12V trigger is input.
b. Confirm 12VTRG is output when the POWER ON.

Onkyo A-9030 Specifications

General

Damping factor	60
Amplifier class	A/B
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (1 Ohm)	65 W
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	Clamp terminals
Purpose	Home
Material	Aluminium, Metal
Product color	Silver
Volume control	Rotary
Bass adjustment	Yes
Connectivity technology	Wired
Built-in display	No
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	135 W
Package weight	9400 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	7400 g
