Connecting External Devices—Continued
Connect the DVD receiver’s DIGITAL IN terminal with a digital audio output terminal on any digital device such as
satellite tuner or PC.
Connect the DVD receiver’s DIGITAL IN terminal with a digital audio output terminal on an audio processor.
If you want to connect an Onkyo audio processor equipped with RI terminal, make sure to connect the DVD receiver’s
TAPE/HDD IN terminal with a line output terminal of the audio processor. And connect the DVD receiver’s TAPE/HDD
OUT terminal with a line input terminal of the audio processor.
You can enjoy the following features by connecting the terminal:
You can control a part of the DVD receiver’s operations by using the accompanying remote controller of the Onkyo
audio processor. (Standby/On, Input switch over, Volume control, Muting, Tuner control and Sound quality adjustment.)
Notes:
• You must change the display title for the external input from “TAPE” to “PC”. (See “Customizing the Source Names”
on page 28.)
• You can not control any Onkyo audio processor by using the supplied remote controller of the DVD receiver.
• If you have connected an optical audio digital cable and an audio pin code, you must change the display title from
“DIGITAL” to “PC/dig”.
• If you playback your PC device through an Onkyo audio processor, the input of the DVD receiver will be changed to
“PC” automatically.

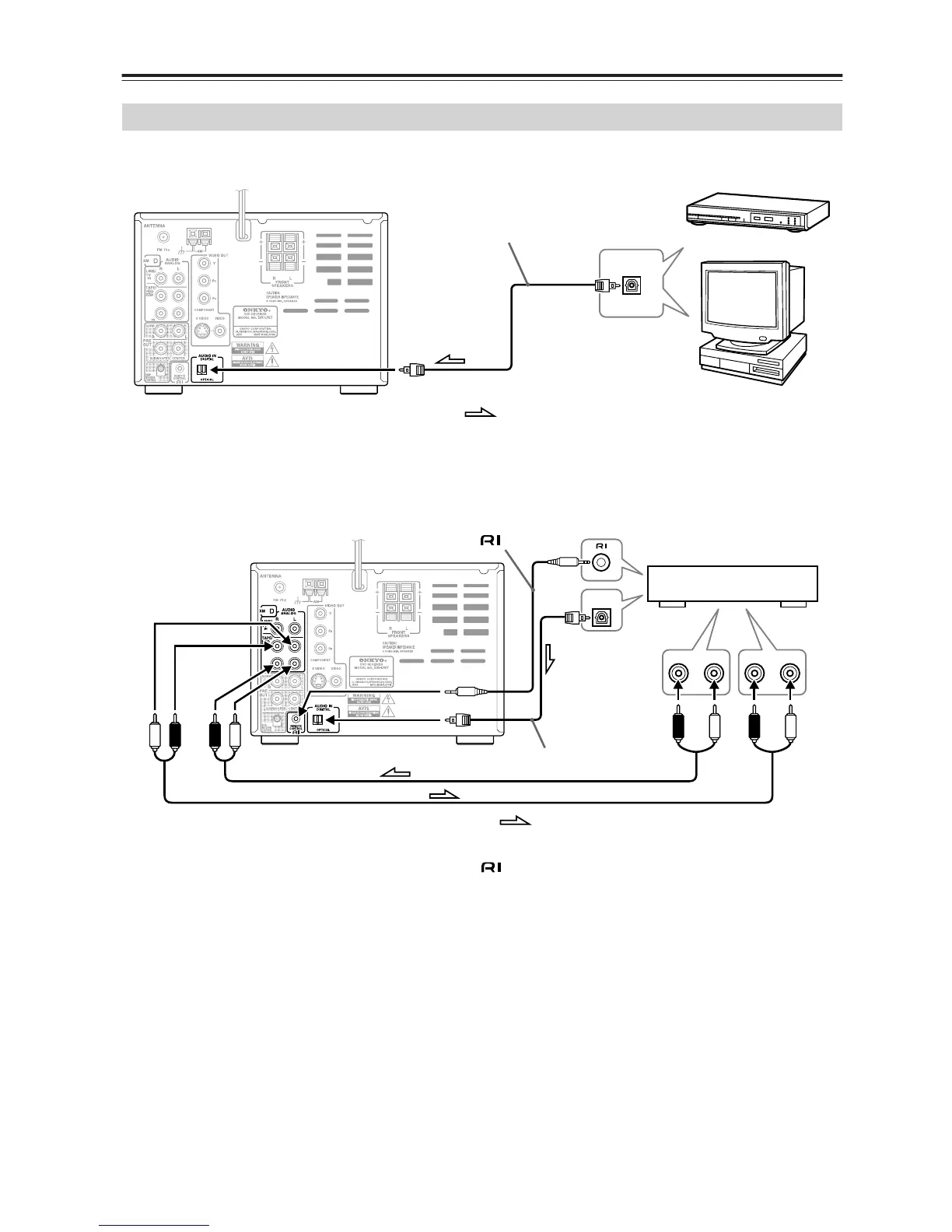

Connection for Listening to Sound from Digital Device through DVD receiver
DIGITAL
OUTPUT
Optical digital audio cable
Satellite tuner
PC
: Signal flow
LR LR
DIGITAL
OUTPUT
LINE
OUT
LINE
IN
: Signal flow
white red white
Optical digital audio cable
Audio Processor
cable
red
red white red white

Onkyo DR-UN7 Specifications

Power

power supply	AC 120 V, 60 Hz
power consumption	115 W
stand-by power consumption	0.2 W

Operating Environment

operating temperature	5 ˚C–35 ˚C
operating humidity	5 %–85 %
tuning frequency range	87.5 MHz–107.9 MHz

Audio Specifications

signal to noise ratio	100 dB (LINE, IHF-A)
frequency response	10 Hz–100 kHz/±3 dB (LINE)
total harmonic distortion	5 % (Power Rated)

Weight and Dimensions

dimensions	205 W x 147 H x 353 D mm
weight	5.4 kg
