Onkyo DR-UN7 User Manual

23
Connecting External Devices—Continued
Connect the LINE IN terminal on the DVD receiver and an audio output terminal on TV.
The DVD receiver has a SUBWOOFER PRE OUT jack. Connect an active subwoofer (a subwoofer that contains an
amplifier).
Note:
If you want to connect any passive subwoofer, you must connect at first a power amplifier with the DVD receiver, and
then connect a subwoofer to the power amplifier.

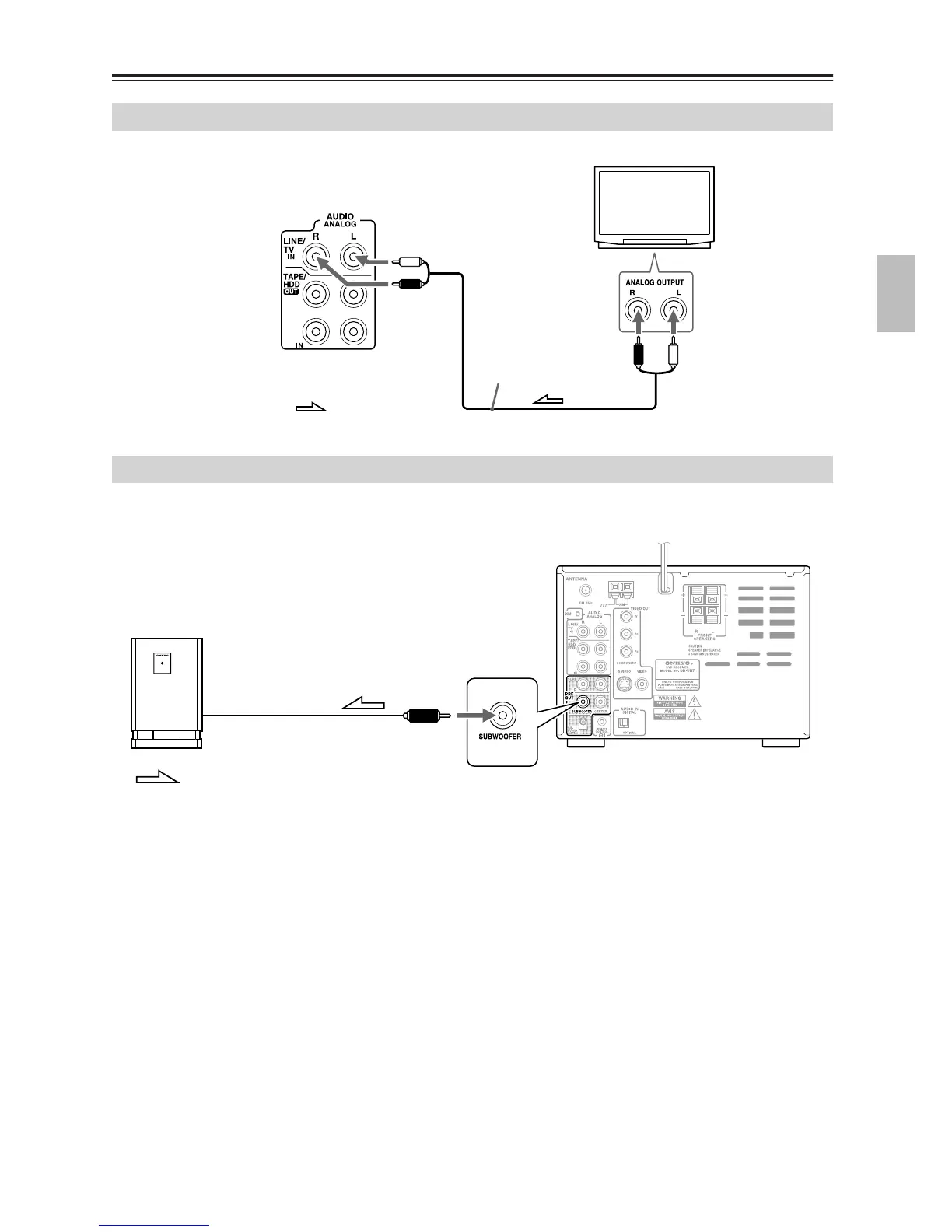

Connection for TV Audio Signal
: Signal flow
DVD receiver’s
rear panel
white
red
red
white
RCA/phono
audio cable
Connecting a subwoofer
: Signal flow
DVD receiver
Active subwoofer
(with a built-in amplifier)

Onkyo DR-UN7 Specifications

Power

power supply	AC 120 V, 60 Hz
power consumption	115 W
stand-by power consumption	0.2 W

Operating Environment

operating temperature	5 ˚C–35 ˚C
operating humidity	5 %–85 %
tuning frequency range	87.5 MHz–107.9 MHz

Audio Specifications

signal to noise ratio	100 dB (LINE, IHF-A)
frequency response	10 Hz–100 kHz/±3 dB (LINE)
total harmonic distortion	5 % (Power Rated)

Weight and Dimensions

dimensions	205 W x 147 H x 353 D mm
weight	5.4 kg
