Connecting External Devices—Continued
You can connect a center speaker and a left and a right surround speakers by adding on a power (main) amplier.
In addition to this conguration, you can add on a subwoofer to enjoy the 5.1ch surround sound. (See page 23.)
Once you have completed the connection, make sure to congure the settings for speakers, described on page 56, so that
you can enjoy your favorite surround mode.

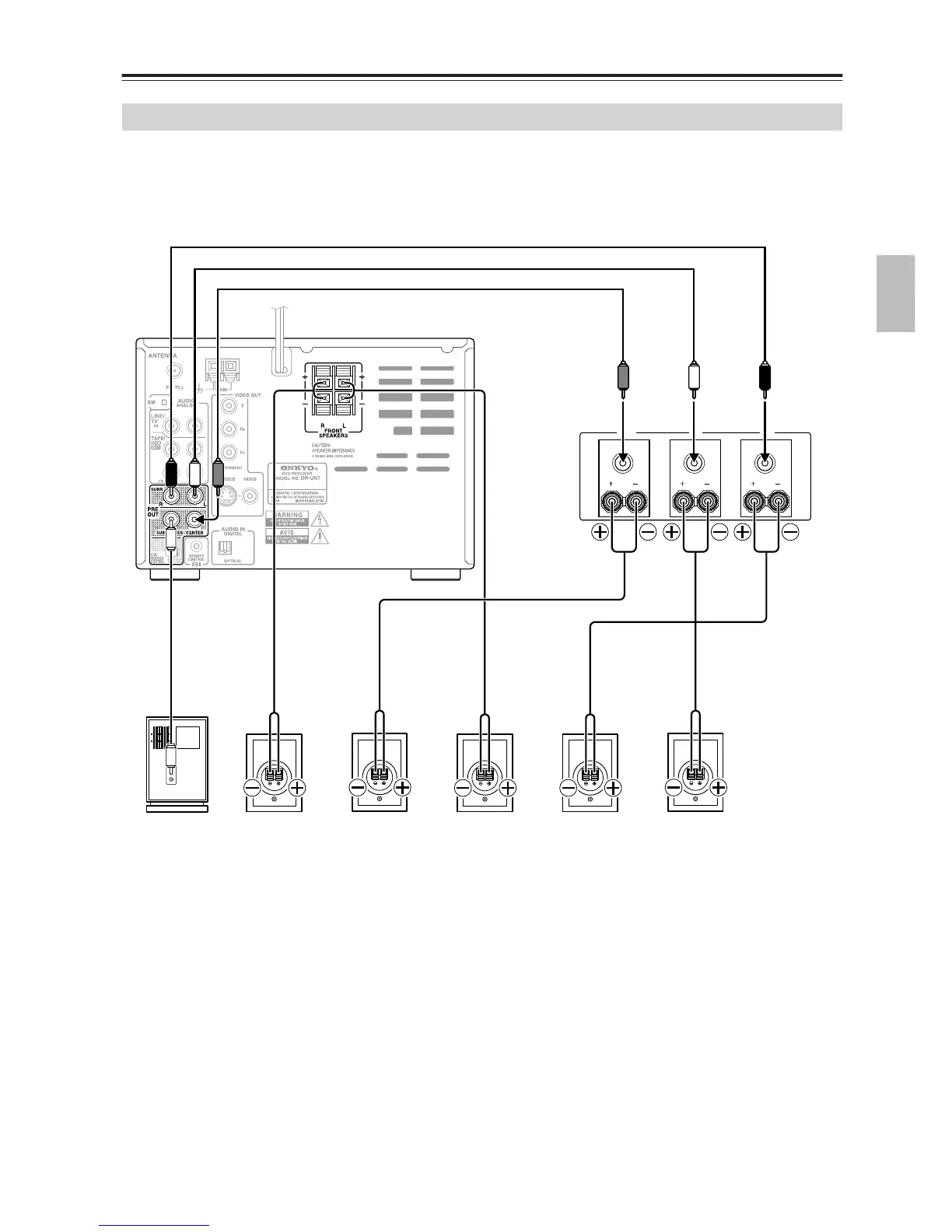

Connection for Enjoying 5.1ch Playback
LINE INPUT
SURROUND
RIGHT
OUTPUT
MAIN IN
SURROUND
LEFT
OUTPUT
MAIN IN
CENTER
OUTPUT
MAIN IN
Power
amplifier
Center speakerFront right
speaker
Active
(Powered)
subwoofer
Front left
speaker
Surround right
speaker
Surround left
speaker
DVD receiver
