HT-R410
A
1
2
3
4
5
BCD

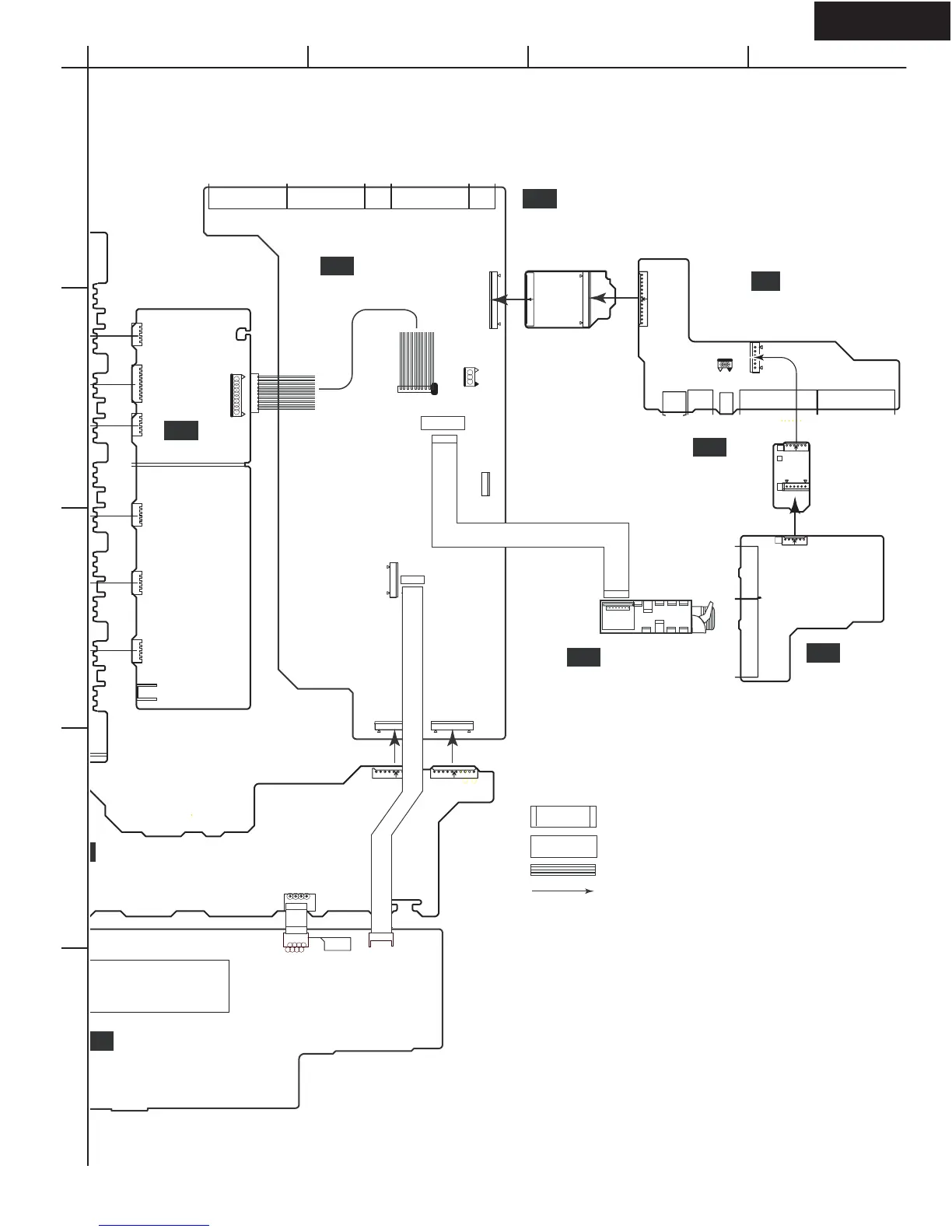

WIRING VIEW
P305
P305
P301
P302
P302
P304
P304
P306
P261A
P351
P801
P410B
P412B
P7701
P411B
P6011A
P306A
P6001A
P6002A
P6003A
P6004A
P101
P7502A
P7503A
+5.6V
HPR
HPE
HPL
GND
GND
FLAC
FLAC
Q7503
FLAC
FLAC
GND
GND
HPL
HPE
HPR
+5.6V
P7502B
NADG-7401,
Digital circuit
PC board ass'y
y circuit PC board ass'y
NAETC-7874,
Connector PC
NAAF-7866,
Driver circuit
PC
board ass'y
L
R
C
LS
LS
RS
RS
E
E
E
E
E
P6073
P6000A
NAETC-7868,Regulator
circuit PC board ass'y
NAVD-7867,Video
terminal PC board ass'y
TUNER
PAC
K
8
U
2
U12
U7
U1
U6
: Flat cable
: Jumper Wire
: Socket
: PC board to PC board
Connector PC
boar
d ass'y
U26
NAETC-7880,
Thermal det.
PC board ass'y
NAETC-7884,
U22
P210B
P211A
+12V
GND
CTLA
CTLB
VMUT2
VMUT1
NCETC-7874
0
NCVD-7873
P211B
P203
NAVD-7873,
S video terminal PC
board ass'y
U11
P206B
P281
U281
P202
P201
P282
P253A
P7503B
P410A
P411A
P801B
P206A
NCETC-7884
board ass'y
P210A

Other manuals for Onkyo HT-R410

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo HT-R410 and is the answer not in the manual?

Onkyo HT-R410 Specifications

Amplifier Section IconAmplifier Section
Power Output Front L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms230 watts × 2
Dynamic Power Output at 4 ohms170 watts × 2
Dynamic Power Output at 8 ohms115 watts × 2
Input and Output Impedance IconInput and Output Impedance
Digital Input Optical0.5 Vp-p, 75 ohms
Digital Input Coaxial0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)200 mV, 47 kohms
Multichannel Input (SUBWOOFER)36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)1 V, 470 ohms
Tuner Section IconTuner Section
FM Tuning Range87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio2.0 dB
FM Image Rejection Ratio40 dB
FM IF Rejection Ratio90 dB
FM Signal-to-Noise Ratio Mono76 dB, IHF
FM Signal-to-Noise Ratio Stereo70 dB, IHF
FM Alternate Channel Attenuation55 dB, IHF, ±400 kHz
FM Selectivity50 dB (DIN)
FM AM Suppression Ratio50 dB
FM Total Harmonic Distortion Mono0.2%
FM Total Harmonic Distortion Stereo0.3%
FM Frequency Response30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz45 dB
FM Stereo Separation at 100 Hz-10 kHz30 dB
AM Tuning Range530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity30 µV
AM Image Rejection Ratio40 dB
AM IF Rejection Ratio40 dB
AM Signal-to-Noise Ratio40 dB
AM Total Harmonic Distortion0.7%
General Specifications IconGeneral Specifications
Power SupplyAC 120 V, 60 Hz
Power Consumption4.7 A
Dimensions (W × H × D)17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)435 × 150 × 365 mm
Weight19.0 lbs., 8.6 kg
