Onkyo HT-R410 Service Manual

HT-R410
ADJUSTMENT AND CONFIRMATION PROCEDURES 1
Idling current adjustment
Before Idling adjustment, turn the trimming resistors R6040,R6041,R6042,R6043 and R6044 to counter clockwise.
Connect the DC voltmeter to sockets P6080,P6081,P6082,P6083 and P6084.
After turn POWER to ON, adjust the trimming resistors R6040, R6041 and R6042 so that the reading of
voltmeter becomes 2.5 mV. (Front and Center channels)
Adjust the trimming resistors R6043 and R6044 so that the reading of
After adjustment, attach the top cover.
voltmeter becomes 1.5 mV. (Surround channels)
Confirm the voltage of points above after about five minutes.
Front and center channels
When less than 7.0 mV, readjust the resistors above so that the voltage becomes 7.0 mV.
When 7.0 mV to 9.0 mV, you are not necessary to adjust.
When more than 9.0 mV, readjust the resistors above so that the voltage becomes 9.0 mV.
Surround channels
When less than 4.0 mV, readjust the resistors above so that the voltage becomes 4.0 mV.
When 4.0 mV to 6.0 mV, you are not necessary to adjust.
When more than 6.0 mV, readjust the resistors above so that the voltage becomes 6.0 mV.
Note: No load and No signal
Confirmation of protection circuit
1. Confirmation of operation of speaker relay
Confirm that the speaker relays turn ON approximate. 5 seconds after the power switch is turned ON.
Confirm that the speaker relays turn OFF immediately after the power switch is turned OFF.
2. Confirmation of DC detection circuit
Press and hold down CD button, then press STANDBY/ON button to display "TEST-" on FL tube.
Then press DVD button to display "TEST-1-00".
Apply DC 1.5 to 3V to Multi-channel INPUT terminal with no load.
Confirm that the speaker relay turns OFF.
Apply DC -1.5 to -3V to DVD INPUT terminal with no load.
Confirm that the speaker relay turns OFF.
Caution: Don't apply DC voltage more than 1 sec..
B+
+B1
B+
+B1
B+
+B1
+B1
NAAF-7875,
Power amplifier
PC board ass'y
U16
P6931
JL6803A
JL6804A
P6011
P931
JL6
95
1A
NCAF-7875
JL6805A
P6301
JL6
4
0
2
A
COM
TH1
+24V
TH1
L
RCLS RS
B-
B+
+B1
-B1
NF
P6004
B-
B+
+B1 -B1
NF
P6003
B-
B+
+B1
-B1
NF
P6002
B- B+
+B1
-B1
NF
P6001
B+
+B1 -B1
NF
P6000

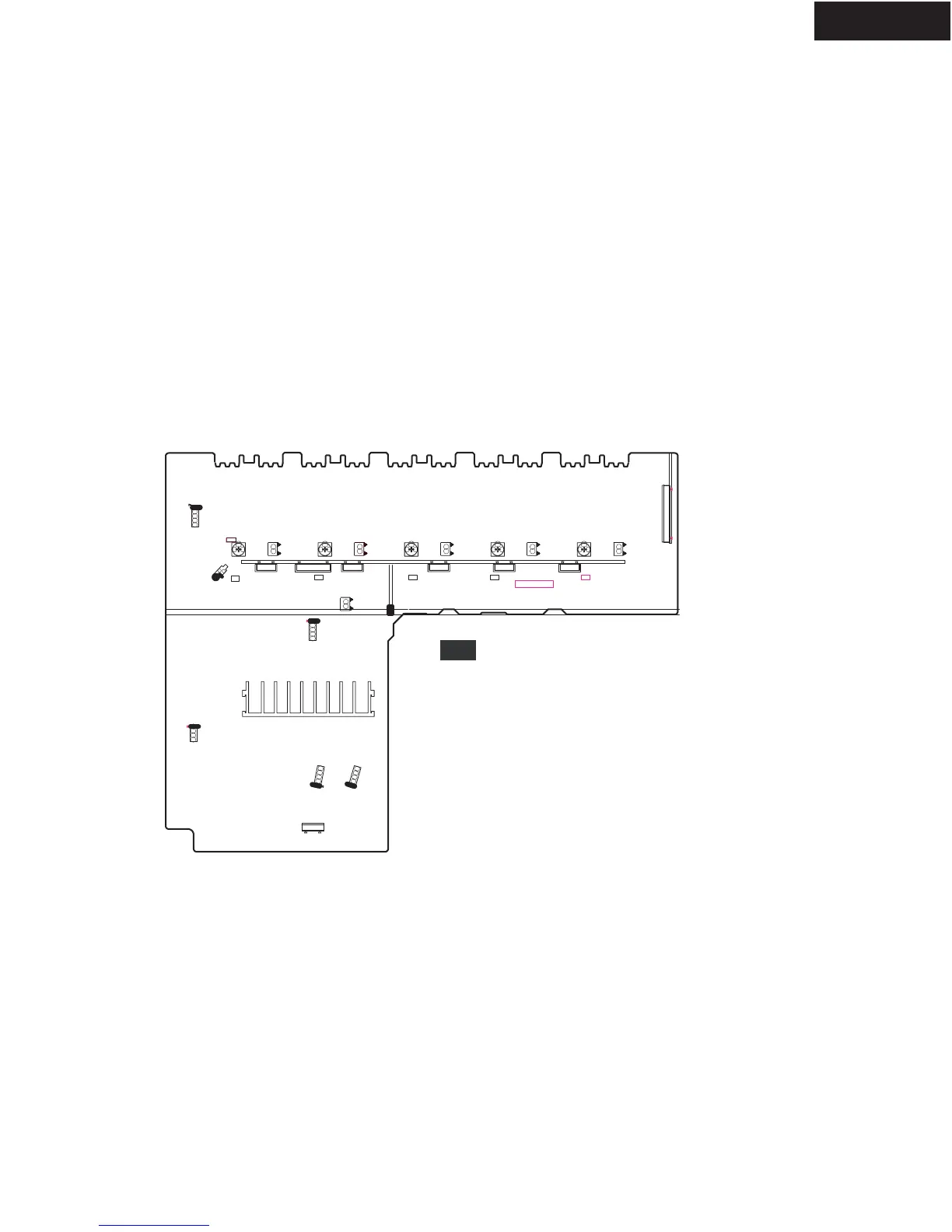

ID-
ID+
R6040
P6080
BIAS
ID-
ID+
R6043
P6083
ID-
ID+
R6042
P6082
ID-
ID+
R6041
P6081
ID-
ID+
R6044
P6084
J
L6952A
TEST mode
CD+STANDBY/ON
DVD
VIDEO 1
VIDEO 2
VIDEO 3
SP-A
SP-B
TEST-
TEST-1-00
TEST-2-00
TEST-3-00
TEST-4-00
Test mode UP
Test mode DOWN

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
