Onkyo HT-R410 Service Manual

HT-R410

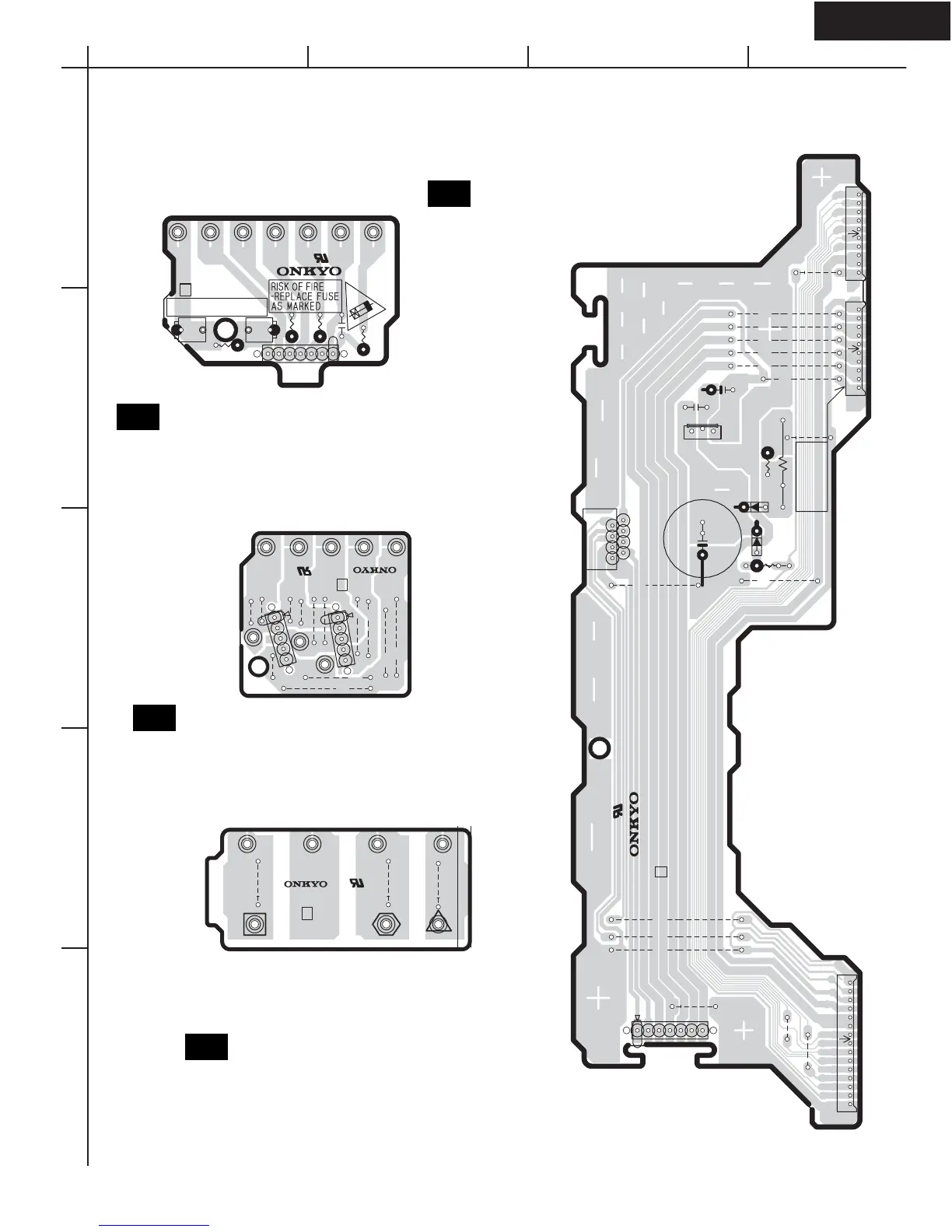

PRINTED CIRCUIT BOARD VIEW 5 FROM SOLDERING SIDE
Power supply and speaker terminal sections
U8
7
17
25
25
25
25
25
17
30
30
30
20
P6931A
P7503B
P7503B
HPL
HPR
AGND
+24V
MPUGND
MPUGND
VOLH
SE1H
SPB
SPCS
SPF
PRO
POWER
+13VS
RLGND
R6932
C6933
D6933
C6932
D6932
R6935
P410A
P411A
+24V
S2
S2
S2
S2
S3
S3GND
S3GND
S3
+5.6V
MPUGND
MPUGND
PRO
VOLH
SPB
SE1H
SPCS
SPF
POWER
+13VS
J5208
IO
25137868
NCETC-7868
0
Q6931
J5209
C6931
C6931
JL9501
R6933
J5217
J5215
J5216
J5207
J5202
J5203
J5204
J5205
J5206
FLAC1
FLAC2
MPUGND
MPUGND
HPL
HPR
AGND
+5.6V
J5210
J5201
J5214
J5213
J5212
J5211
S2 S2 S3 S3
S3E
S4 S4
OI
Regulator circuit PC board ass'y
(NAETC-7868)
U19
Secondary circuit PC board ass'y
(NAPS-7878)
14 13 12 11 10 9 8
JL9501B
NCETC-7869
25137869
0
F9501B
F9501A
R9503
R9501
R9502
R9521
C9513
1.6A/125V
F9501
U9
Secondary terminal A PC board ass'y
(NAETC-7869)
P911A P912A P913A
731
25137876
NCPS-7876
0
5
J6201 J6202
J6203
U17
Terminal PC board ass'y
(NAPS-7876)
12
12
15
17
15
20
JL6952B
JL6951B
J6403
J6412
J6402
J6413
J6408 J6409
J6401
J6405
J6406
J6404
J6407
J6410
J6411
P995
19 18 17 16 15
P996
P997
NCPS-7878
25137878
0
A
1
2
3
4
5
BCD

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
