Onkyo HT-R508 User Manual

11

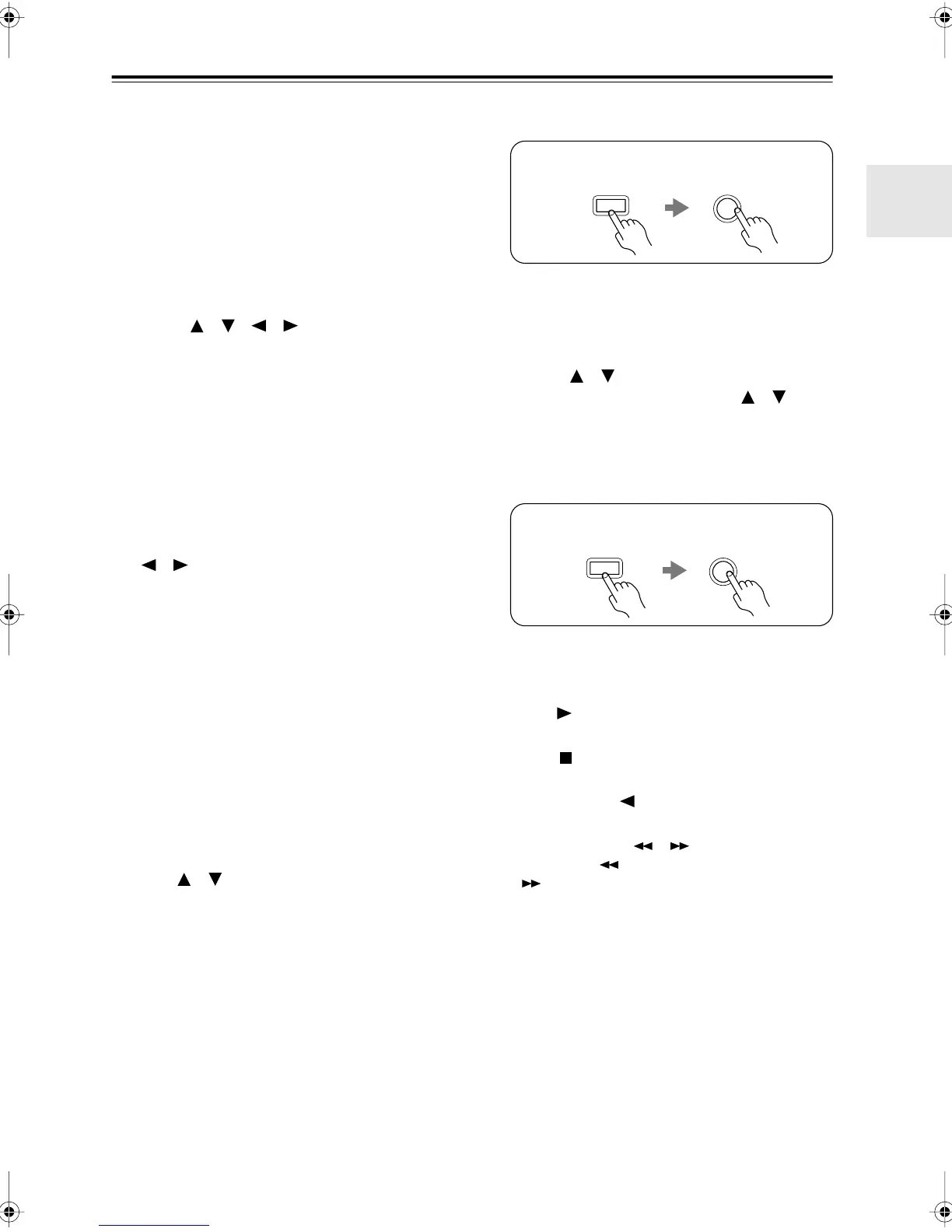

Remote Controller —Continued
For detailed information, see the pages in parentheses.
A STANDBY/ON button (32)
Sets the AV receiver to On or Standby.
B
INPUT SELECTOR buttons (38)
Used to select the input sources.
C
MULTI CH button (39)
Selects the multichannel DVD input.
D
DIMMER button (44)
Adjusts the display brightness.
E
Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons
Used to select and adjust settings.
F
SETUP button
Used to access the setup menus.
G
LISTENING MODE buttons (46)
Used to select the listening modes. These buttons
work in all remote controller modes.
STEREO button
Selects the Stereo listening mode.
SURROUND button
Selects the Dolby and DTS listening modes.
[ ]/[ ] buttons
Used to select the available listening modes.
H
TEST TONE, CH SEL, LEVEL-, and LEVEL+
buttons (45, 55)
Used to adjust the level of each speaker.
I
DISPLAY button (39)
Displays various information about the selected
input source.
J
REMOTE MODE buttons (10)
Used to select the remote controller modes. When a
remote controller button is pressed, the REMOTE
MODE button for the currently selected mode lights
up.
K SLEEP button (45)
Used with the Sleep function.
L
VOL [ ]/[ ] button (38)
Adjusts the volume of the AV receiver regardless of
the currently selected remote controller mode.
M
MUTING button (44)
Mutes or unmutes the AV receiver.
N
RETURN button
Selects the previously displayed setup menu.
O
CINE FLTR button (49)
Used with the CinemaFILTER function.
P
L NIGHT button (49)
Used with the Late Night function.
■ Buttons used when the TUNER input is
selected
1
Number, D TUN, and ENT buttons (41)
Used to select AM and FM radio stations directly.
2
CH +/– button (41)
Used to select radio presets.
3
Arrow [ ]/[ ] buttons
For AM and FM, the Up and Down [ ]/[ ] but-
tons are used for tuning.
■ Buttons used when the TAPE input is
selected
4
Playback buttons
On twin cassette decks, only deck B can be con-
trolled.
Play [ ] button
Starts playback.
Stop [ ] button
Stops playback.
Reverse Play [ ] button
Starts reverse playback.
Rewind and FF [ ]/[ ] buttons
The Rewind [ ] button starts rewind. The FF
[] button starts fast forward.
RECEIVER
TUNER
8
To select the Tuner (AM/FM) as the input
source, press:
RECEIVER
TAPE
7
To select your Cassette deck as the input
source, press:
HT-R508En.book Page 11 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
