Connecting Your Speakers
Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your
own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring DTS and Dolby Digital.
With analog and digital TV, you can enjoy Dolby Pro Logic II and Onkyo’s own DSP surround listening modes.
For the best surround-sound experience, you should connect five speakers and a powered subwoofer.
The following table shows which channels you should use based on the number of speakers that you have.
No matter how many speakers you use, a powered sub-
woofer is recommended for a really powerful and solid
bass.
Before using the AV receiver, you must do the automatic
speaker setup (see page 33).

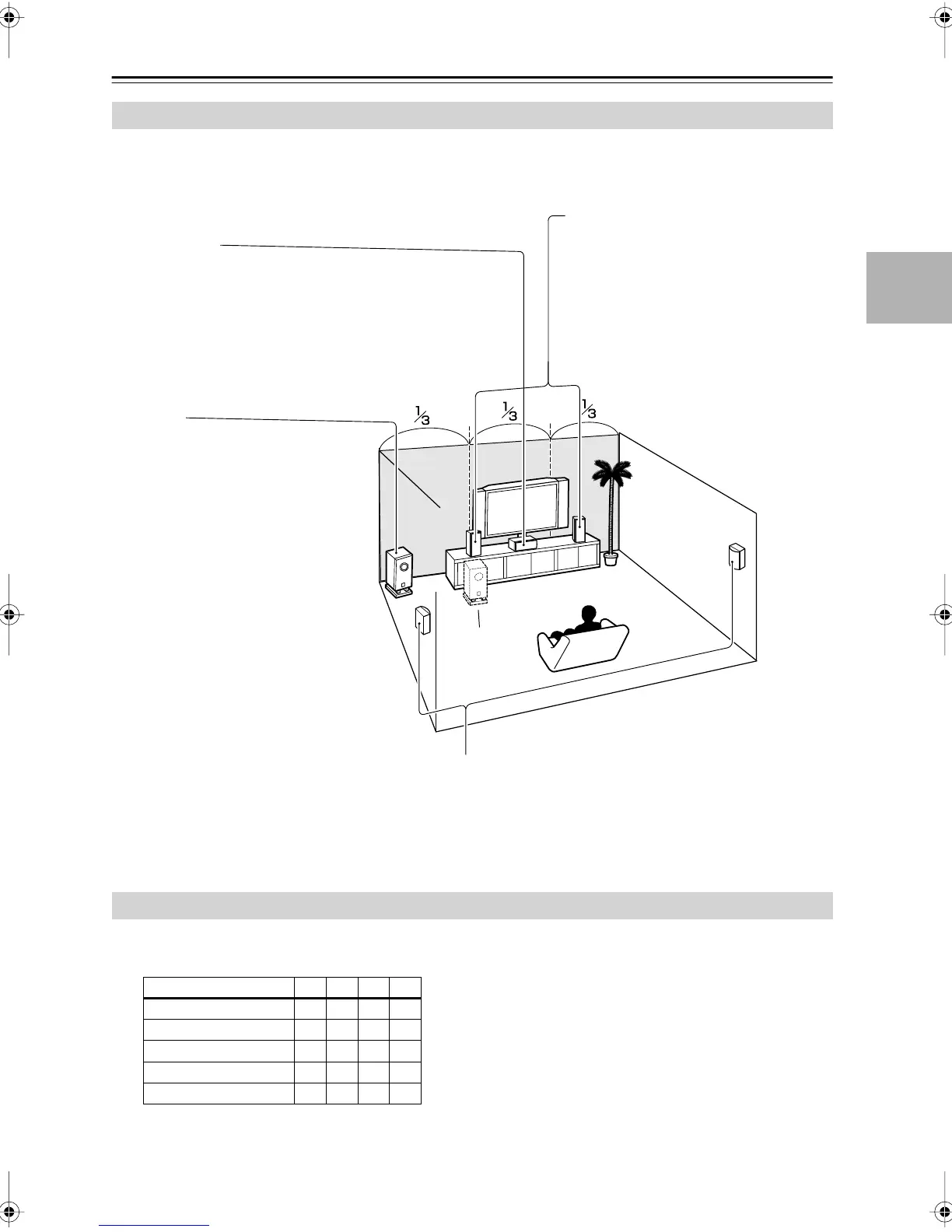

Enjoying Home Theater
Subwoofer
The subwoofer handles the bass sounds
of the LFE (Low-Frequency Effects) chan-
nel. The volume and quality of the bass
output from your subwoofer will depend on
its position, the shape of your listening
room, and your listening position. In gen-
eral, a good bass sound can be obtained
by installing the subwoofer in a front cor-
ner, or at one-third the way along the wall,
as shown.
Tip: To find the best position for your sub-
woofer, while playing a movie or some
music with good bass, experiment by plac-
ing your subwoofer at various positions
within the room, and choose the one that
provides the most satisfying results.
Front left and right speakers
These output the overall sound. Their role
in a home theater is to provide a solid
anchor for the sound image. They should
be positioned facing the listener at about
ear level, and equally spaced from the TV.
Angle them inward slightly so as to create
a triangle, with the listener at the apex.
Center speaker
This speaker enhances the front left and right speakers,
making sound movements distinct and providing a full
sound image. For movies it’s used mainly for dialog.
Position it close to your TV facing forward at about ear
level, or at the same height as the front left and right
speakers.
Corner
1/3 wall
length
Surround left and right speakers
These speakers are used for precise sound positioning and to add realistic ambience.
Position them at the sides of the listener, or slightly behind, about 2–3 feet (60–100 cm)
above ear level. Ideally they should be equally spaced from the listener.
Speaker Configuration
Number of speakers: 2345
Front left
✓✓✓✓
Front right
✓✓✓✓
Center
✓✓
Surround left
✓✓
Surround right
✓✓
