7
Getting to Know the AV Receiver
For detailed information, see the pages in parentheses.
A
STANDBY/ON button (32)
Sets the AV receiver to On or Standby.
B
STANDBY indicator (32)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C
Remote-control sensor (14)
Receives control signals from the remote controller.
D
Display
See “Display” on page 8.
E
Input selector buttons (38)
Select the input sources.
The [MULTI CH] button selects the multichannel
DVD input.
F
Arrow/TUNING/PRESET and ENTER buttons
When the tuner is selected, the TUNING [ ] [ ]
buttons are used for radio tuning, and the PRESET
[] [ ] buttons are used to select radio presets
(see page 41). With the setup menus, they work as
arrow buttons and are used to select and set items.
The ENTER button is also used with the setup
menus.
G
MASTER VOLUME control (38)
Sets the volume of the AV receiver to MIN, 1
through 79, or MAX.
H
PHONES jack (45)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
I
PURE AUDIO button and indicator (46)
Selects the Pure Audio listening mode. The indica-
tor lights up when this mode is selected.
J
DISPLAY button (39)
Displays various information about the currently
selected input source.
K
DIGITAL INPUT button (37, 57)
Used to assign the digital inputs and to specify the
format of digital input signals.
L
TONE, [–], and [+] buttons (44)
Used to adjust the bass and treble.
M
STEREO button (46)
Selects the Stereo listening mode.
N
LISTENING MODE [ ]/[ ] buttons (46)
Select the listening modes.
O
RT/PTY/TP button (43)
Used with RDS (Radio Data System). See “Using
RDS” on page 42.
P
MEMORY button (41)
Used when storing or deleting radio presets.
Q
TUNING MODE button (40)
Selects the Auto or Manual tuning mode for AM
and FM radio.
R
SETUP button
Used to access the setup menus.
S
SETUP MIC (34)
The automatic speaker setup microphone connects
here.
T
RETURN button
Selects the previously displayed setup menu.
U
AUX INPUT (27, 51)
Used to connect a camcorder, games console, and so
on. There are jacks for composite video and analog
audio.

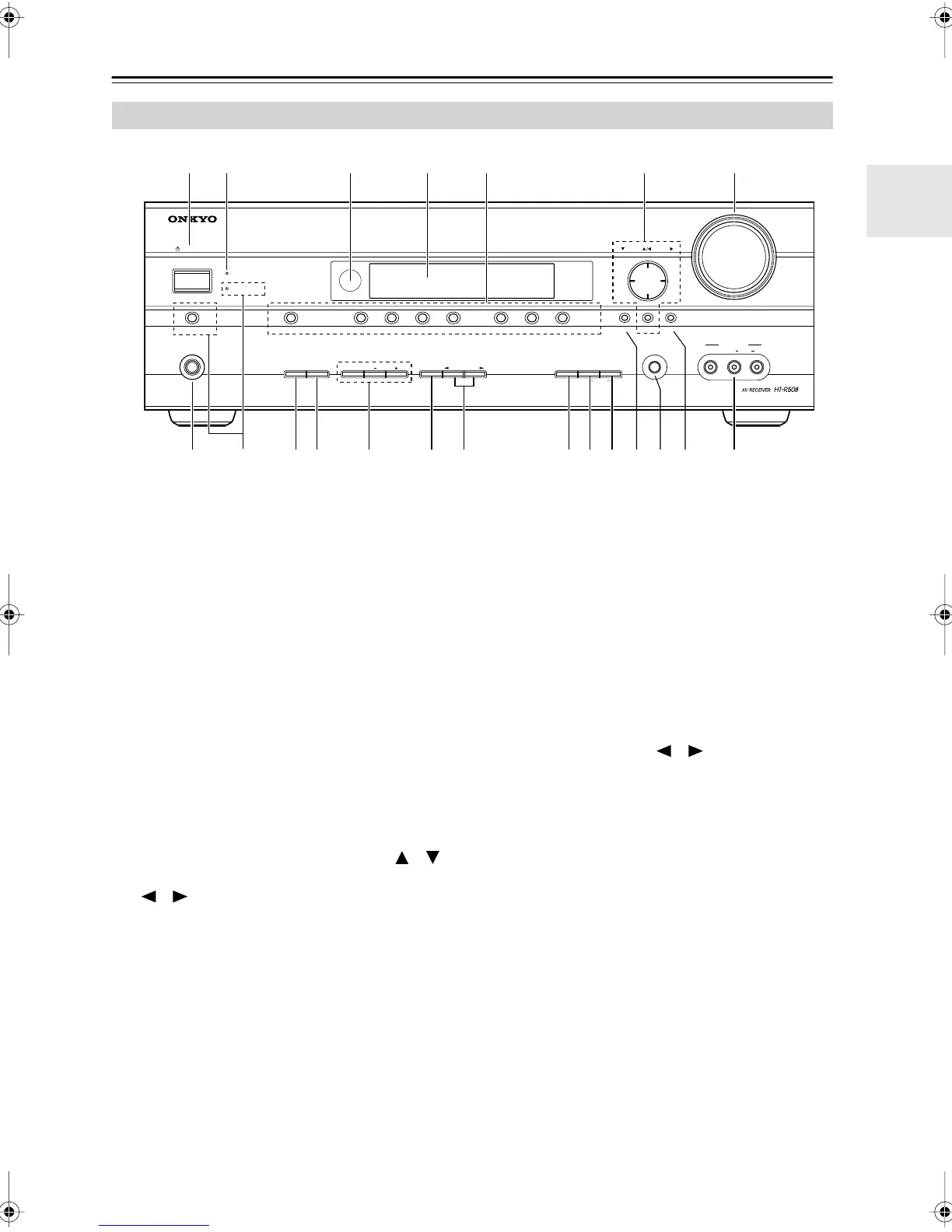

Front Panel
MASTER VOLUME
VIDEO
STANDBY
PURE AUDIO
TONE
DISPLAY STEREO RT/PTY/TP MEMORY
DIGITAL INPUT
TUNING MODE
TUNERTAPE
AUXCBL/SATVCR/DVR
DVDMULTI CHPURE AUDIO C
D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
9
1
ULMNJK OPQ8RTS
2
3 5 6 74
HT-R508En.book Page 7 Wednesday, March 14, 2007 10:12 AM
