Onkyo HT-R508 User Manual

36

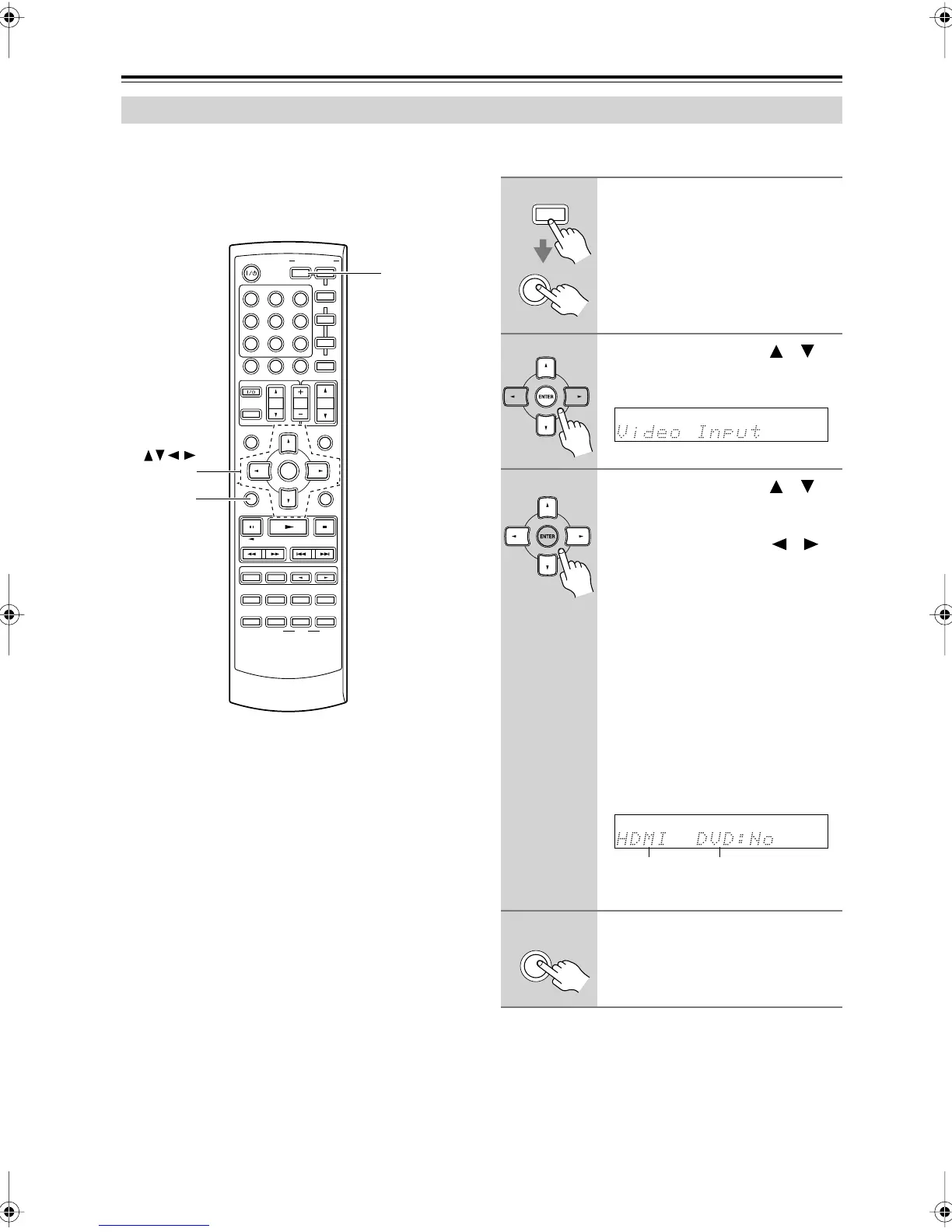

First Time Setup —Continued
If you connect a video component to an HDMI IN, use this setting to assign that input to an input selector.
HDMI Input Setup
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
RANDOM SUBTITLE
PLAY MODE
AUDIO REPEAT
RC
-
681M
--
/
---
TAPE/AMP
M
D/CDR
DOCK
CABLE
STANDBY/ON
DIMMER
ENT D TUN
SLEEP
10 11 12
INPUT SELECTOR
HDDDVDVCR
REMOTE MODE
VCR/DVR
AUX
CBL/SAT
C DTAPE TUNER
DVD
MULTI CH
LISTENING MODE
TV
DISPLAY
TEST TONE CH SEL
SURROUND STEREO
CINE FLTR
LEVEL
+
LEVEL
-
L NIGHT
VOL
VOL
SAT
VCR
TV
DVD
RECEIVER
C D
INPUT
+
10
0
CLR
123
456
789
ENTER
CH
DISC
ALBUM
SETUP
RECEIVER
ENTER
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
2
Use the Up and Down [ ]/[ ]
buttons to select “Video Input,”
and then press [ENTER].
3
Use the Up and Down [ ]/[ ]
buttons to select “HDMI DVD,”
“HDMI VCR,” or “HDMI CBL” and
use the Left and Right [ ]/[ ]
buttons to change the setting.
If you connect a video component to
HDMI IN 1 or 2, you must assign that
input to an input selector. For example,
if you connect your DVD player to
HDMI IN 1, you must assign HDMI
DVD setting to IN1.
IN1: Select if the video component
is connected to HDMI IN 1.
IN2: Select if the video component
is connected to HDMI IN 2.
No: Select if you’re not using the
HDMI OUT.
4
Press the [SETUP] button.
Setup closes.
RECEIVER
SETUP
HDMI
video
Input
SETUP
HT-R508En.book Page 36 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
