Onkyo HT-R508 User Manual

56

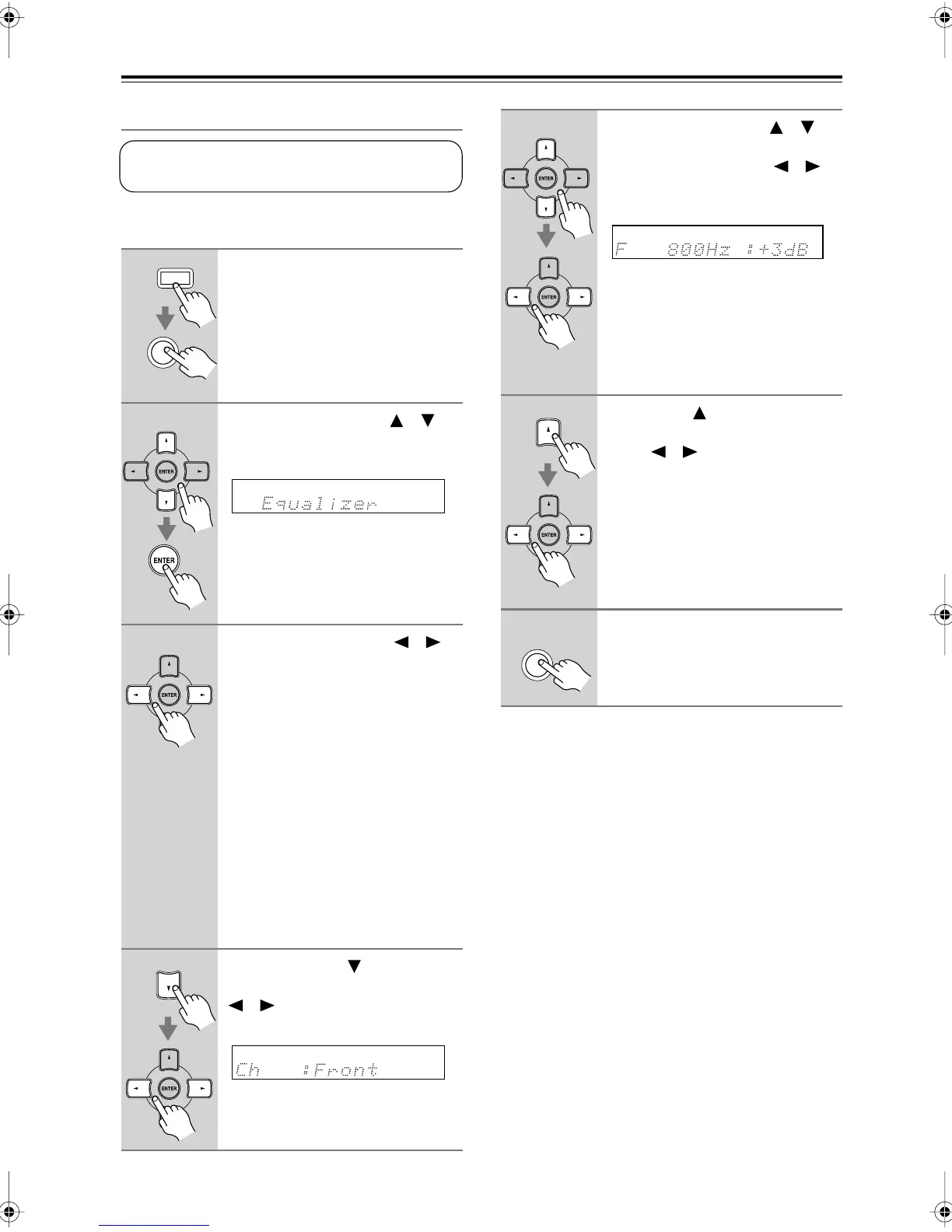

Advanced Setup —Continued
Equalizer Settings
Here you can adjust the tone of individual speakers. To
set the volume of individual speakers, see page 55.
Notes:
• The front, center, and surround speakers can be
adjusted at
80
Hz, 250 Hz, 800 Hz, 2500 Hz, and
8000 Hz. The subwoofer can be adjusted at 40 Hz, 80
Hz, and 160 Hz.
• While the Direct or Pure Audio listening mode is
selected, the equalizer settings have no effect.
• This procedure can also be performed on the AV
receiver by using its [SETUP], [ENTER], and arrow
buttons.
1
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
2
Use the Up and Down [ ]/[ ]
buttons to select “Equalizer,” and
then press [ENTER].
3
Use the Left and Right [ ]/[ ]
buttons to select:
Off: Tone off, response flat.
Audyssey: The tone for each speaker
is set automatically by the
Automatic Speaker Setup
function. Be sure to select
this setting after having
performed the Automatic
Speaker Setup.
Manual: You can adjust the equal-
izer for each speaker
manually.
If you selected Manual, continue with
this procedure. If you selected Off or
Audyssey, go to step 7.
4
Press the Down [ ] button, and
then use the Left and Right
[ ]/[ ] buttons to select a
speaker.
These settings are set automatically by the Automatic
Speaker Setup function (see page 33).
SETUP
RECEIVER
5
Use the Up and Down [ ]/[ ]
buttons to select a frequency.
Use the Left and Right [ ]/[ ]
buttons to adjust the level at that
frequency.
The volume at each frequency can be
adjusted from –6 to +6 dB in 1 dB
steps.
Tip: Low frequencies (e.g., 80 Hz)
affect bass sounds; high frequencies
(e.g., 8000 Hz) affect treble sounds.
6
Use the Up [ ] button to select
“Ch,” and then use the Left and
Right [ ]/[ ] buttons to select
another speaker.
Repeat steps 5 and 6 for each speaker.
Speakers that you’ve set to No or None
in the Speaker Configuration (page 52)
cannot be selected.
7
Press the [SETUP] button.
The setup menu closes.
SETUP
HT-R508En.book Page 56 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
