Onkyo HT-R508 User Manual

9

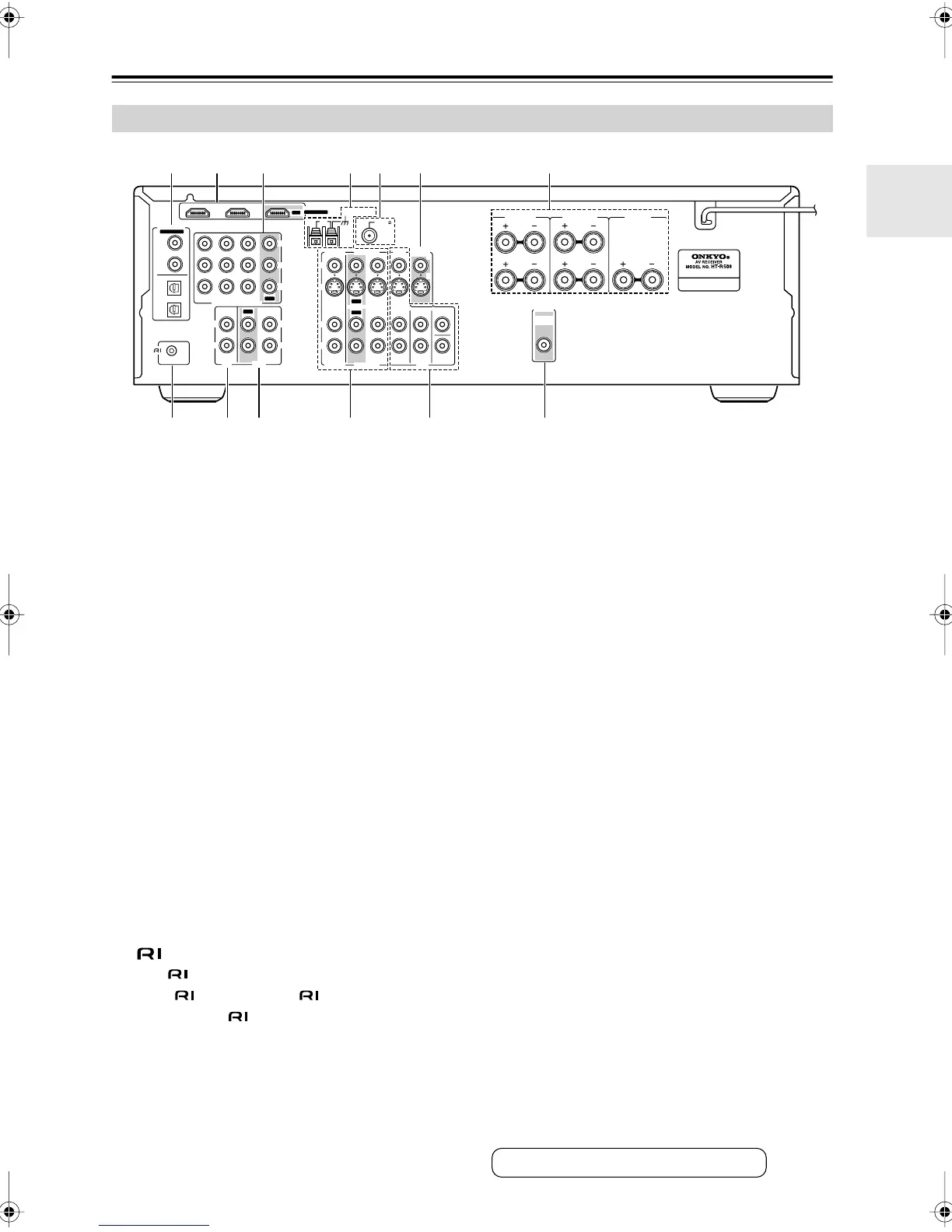

Getting to Know the AV Receiver —Continued
A
DIGITAL IN OPTICAL 1, 2 and COAXIAL 1, 2
These optical and coaxial digital audio inputs are
for connecting components with optical or coaxial
digital audio outputs, such as CD and DVD players.
B
HDMI IN 1, 2, and OUT
These jacks are for connecting HDMI-compatible
components. Audio and video signals received by
the HDMI IN jacks pass through to the HDMI OUT
jack.
C
COMPONENT VIDEO
A DVD player, TV, or other component that sup-
ports component video can be connected here.
D
AM ANTENNA
These push terminals are for connecting an AM
antenna.
E
FM ANTENNA
This jack is for connecting an FM antenna.
F
MONITOR OUT
The S-Video or composite video output should be
connected to a video input on your TV or projector.
G
FRONT SPEAKERS, SURROUND
SPEAKERS, and CENTER SPEAKER
These terminal posts are for connecting speakers.
H
REMOTE CONTROL
This Remote Interactive jack can be connected
to the jack on another -capable Onkyo com-
ponent. To use , you must make an analog audio
connection (RCA) between the AV receiver and the
other component, even if they are connected digi-
tally.
I CD IN
This analog audio input is for connecting a CD
player’s analog audio output.
J
TAPE IN/OUT
This analog audio input and output are for connect-
ing a recorder with an analog audio input and out-
put, such as a cassette deck, MD recorder, etc.
K
VCR/DVR IN/OUT and CBL/SAT IN
The VCR/DVR inputs and outputs can be used to
connect a VCR or DVR (digital video recorder).
The CBL/SAT inputs can be used to connect a
cable/satellite receiver, set-top box, etc.
L DVD IN
These jacks can be used to connect a DVD player
with an analog multichannel audio output for SACD
and DVD-Audio playback.
M
SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
Rear Panel
OUT
OUT
CBL/SAT IN
IN IN
IN
IN
IN
IN IN
VCR/DVR IN DVD IN
OUT
COMPONENT VIDEO
Y
C
B/PB
CR/PR
IN 1IN 2
OUT
L
R
L
R
ANTENNA
FM
AM
75
SUB
WOOFER
FRONT SURROUND CENTER
CD
RR
LL
TAPE
OUT
CBL/SAT
CBL/SAT
VCR/DVR
VCR/DVR
DVD
DVD
R
L
S
V
MONITOR
OUT
S
V
PRE OUT
SUB
WOOFER
SURROUND
SPEAKERS
FRONT
SPEAKERS
CENTER
SPEAKER
REMOTE
CONTROL
HDMI
ASSIGNABLE
ASSIGNABLE
COAX-
IAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(VCR/DVR)
2
(CD)
DIGITAL IN
8 9 J K L M
1 2 53 6 74
See pages 15–31 for hookup information.
HT-R508En.book Page 9 Wednesday, March 14, 2007 10:12 AM

Onkyo HT-R508 Specifications

Amplifier Section

rated output power (FTC)	110 watts
rated output power (IEC)	5 ch × 130 W
maximum output power (JEITA)	5 ch × 160 W
dynamic power (3Ω, 1 ch driven)	210 W
dynamic power (4Ω, 1 ch driven)	190 W
dynamic power (8Ω, 1 ch driven)	130 W
total harmonic distortion (THD)	0.08%
damping factor	60
input sensitivity and impedance	200 mV/ 47 kΩ
output level and impedance	200 mV/ 470 Ω
frequency response	5 Hz–100 kHz
tone control (bass)	±10 dB, 50 Hz
tone control (treble)	±10 dB, 20 kHz
signal to noise ratio	100 dB
speaker impedance	8Ω–16Ω

Video Section

input sensitivity/output level and impedance (component and s-video y)	1 Vp-p /75Ω
input sensitivity/output level and impedance (component pb/cb, pr/cr)	0.7 Vp-p /75Ω
input sensitivity/output level and impedance (s-video c)	0.28 Vp-p /75Ω
input sensitivity/output level and impedance (composite)	1 Vp-p /75Ω
component video frequency response	5 Hz – 50 MHz

Tuner Section

fm tuning frequency range	87.5 MHz– 108.0 MHz
am tuning frequency range	522 kHz–1611 kHz
radio presets	40

General

power supply	AC 230 V, 50 Hz
power consumption	560 W
standby power consumption	0.3 W
dimensions (W × H × D)	435 × 150 × 377 mm
weight	10.2 kg
