Onkyo HT-R960

11
Getting to Know the AV Receiver —Continued
For detailed information, see the pages in parentheses.
J
PHONES jack (52)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
K
THX button (59)
Selects the THX listening mode.
L
SPEAKERS A and B buttons (19, 50)
Turn speaker sets A and B on or off.
M
TONE, –, and + buttons (78)
Used to adjust the tone (bass and treble).
N
MOVIE/TV button (59)
Selects the listening modes intended for use with
movies and TV.
O
MUSIC button (59)
Selects the listening modes intended for use with
music.
P
GAME button (59)
Selects the listening modes intended for use with
video games.
Q
DISPLAY button (52)
Displays various information about the currently
selected input source.
R
DIGITAL INPUT button (49)
Selects the options for automatic audio input selec-
tion setup.
S
DIMMER (RT/PTY/TP) button (51, 58)
Adjusts the display brightness.
On the European model, this is the RT/PTY/TP but-
ton, and it’s used with RDS (Radio Data System).
See “Using RDS (European model only)” on
page 57.
T
MEMORY button (56)
Used when storing or deleting radio presets.
U
TUNING MODE button (54)
Selects the Auto or Manual tuning mode for AM
and FM radio.
V
SETUP MIC (42)
The automatic speaker setup microphone connects
here.
W
AUX INPUT (36, 75)
Used to connect a camcorder, game console, and so
on. There are input jacks for composite video and
analog audio.
For detailed information, see the pages in parentheses.
1
A and B speaker indicators (19, 50)
Indicator A lights up when speaker set A is on. Indi-
cator B lights up when speaker set B is on.
2
MUTING indicator (51)
Flashes while the AV receiver is muted.
3
Listening mode and format indicators (59)
Show the selected listening mode and audio input
signal format.
4
Tuning indicators (54)
FM STEREO (54): Lights up when tuned to a ste-
reo FM station.
RDS (57): Lights up when tuned to a radio station
that supports RDS (Radio Data System).
AUTO (54): Lights up when Auto Tuning mode is
selected for AM or FM radio. Goes off when Man-
ual Tuning mode is selected.
TUNED (54): Lights up when tuned to a radio sta-
tion.
5
SLEEP indicator (51)
Lights up when the Sleep function has been set.
6
Message area
Displays various information.
7
Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: MULTI CH or HDMI.
8
Audyssey indicator
Flashes during automatic speaker setup.

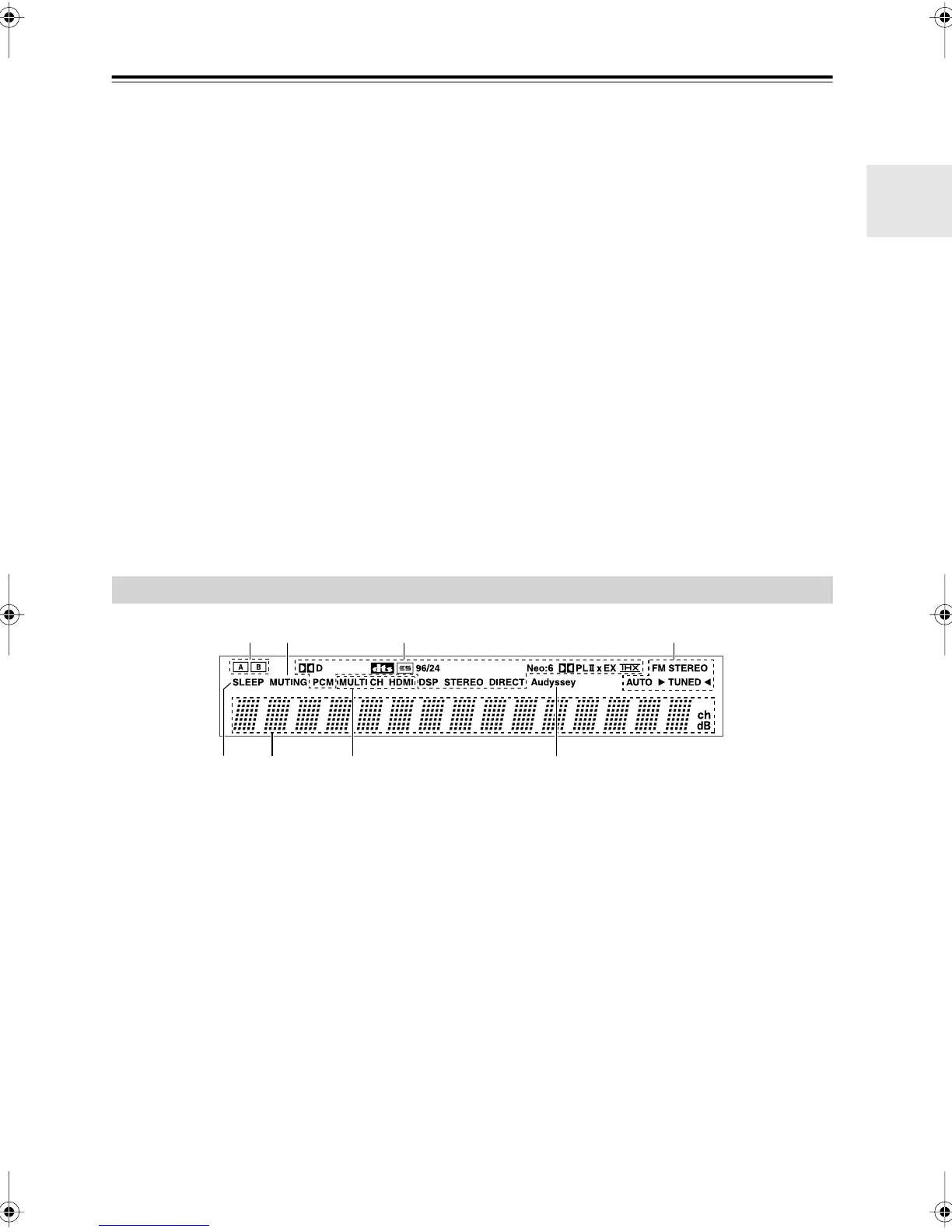

Display
1 23 4
6
5 7 8
