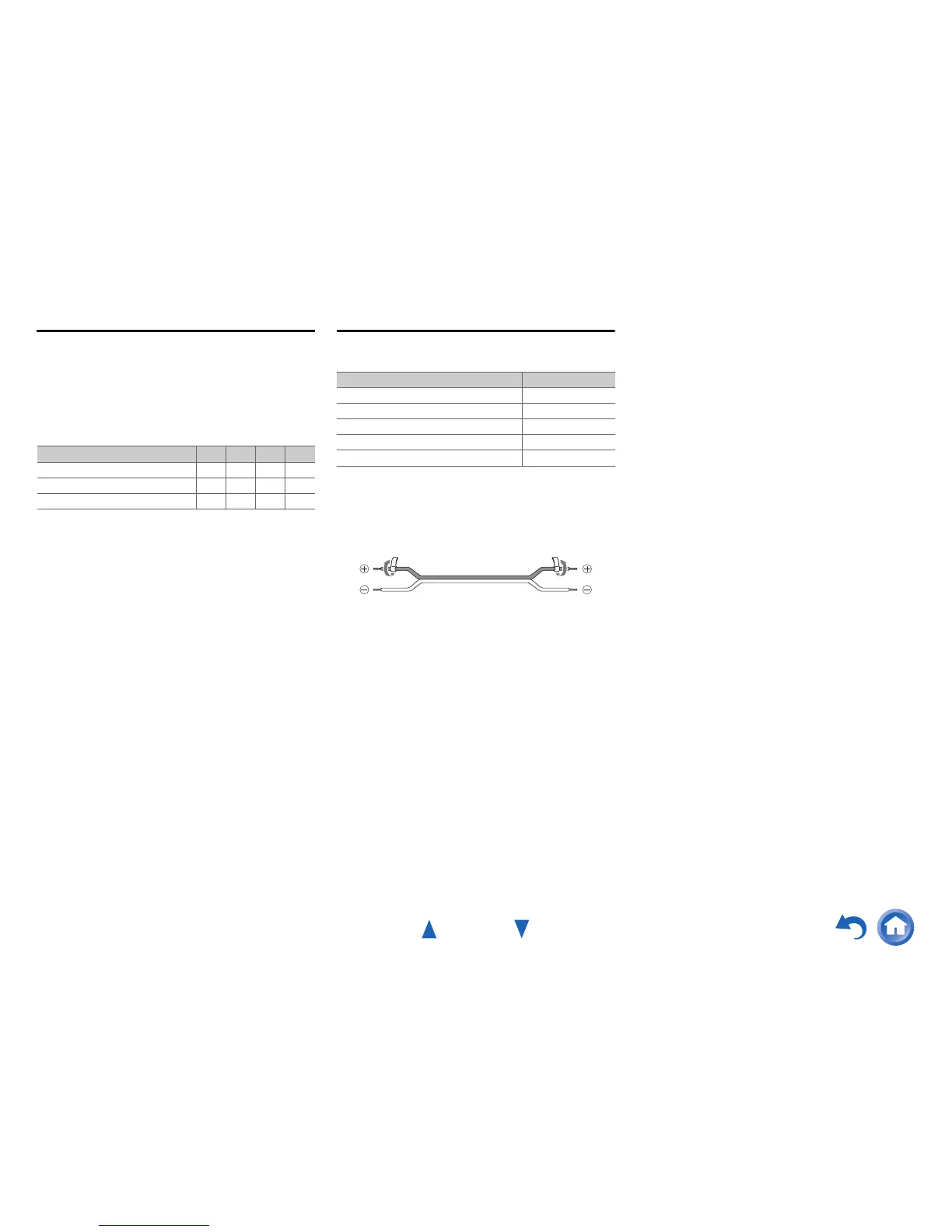

Onkyo HT-RC430 User Manual

Connections
En-12
Speaker Configuration
The following table indicates the channels you should use
depending on the number of speakers that you have.
No matter how many speakers you use, a powered
subwoofer is recommended for a really powerful and solid
bass.
To get the best from your surround sound system, you need
to set the speaker settings manually (➔ page 38).
Attaching the Speaker Cable Labels
The speaker terminals are color-coded for identification
purpose.
The supplied speaker cable labels are also color-coded and
you should attach them to the positive (+) side of each
speaker cable in accordance with the table above. Then all
you need to do is to match the color of each label to the
corresponding speaker terminal.
Number of speakers 2 3 4 5
Front speakers ✔✔✔✔
Center speaker ✔✔
Surround speakers ✔✔
Speaker Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
