Connections
En-18
This section explains how to connect the supplied indoor FM antenna and AM loop antenna.
The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use
the tuner.
Note
• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible
reception.
• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.
Tip
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM
antenna.

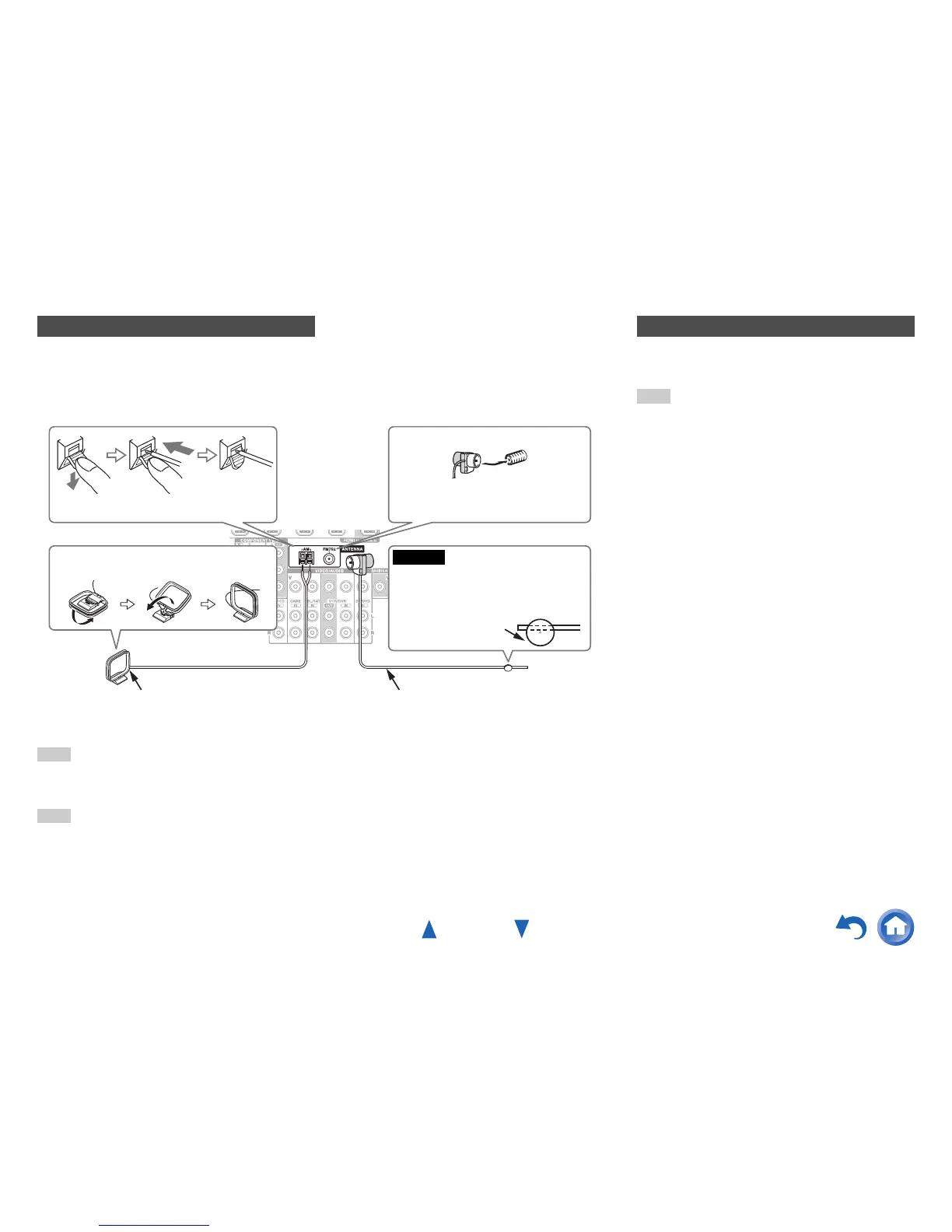

Connecting the Antennas
Thumbtacks, etc.
Insert the plug fully into the jack.
Push. Insert wire. Release.
Assembling the AM loop antenna
Indoor FM antenna (supplied)
AM loop antenna (supplied)
Caution
• Be careful not to injure yourself when
using thumbtacks.
Note
• Before connecting the power cord, connect all of your
speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge
that might interfere with other electrical equipment on the same
circuit. If this is a problem, plug the AV receiver into a different
branch circuit.
Connecting the Power Cord
1
Plug the power cord into an AC wall outlet.

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
