Onkyo HT-RC430 User Manual

Controlling Other Components
En-47
By pressing the REMOTE MODE button that’s been
programmed with the remote control code for your Dock,
you can control your iPod/iPhone in the Dock with the
buttons described further in this section.
See “Entering Remote Control Codes” for details on
entering a remote control code (➔ page 48).
See the Dock’s instruction manual for more information.
RI Dock
• Set the RI Dock’s RI MODE switch to “HDD” or
“HDD/DOCK”.
• 8 may not work with a remote control code (without
u). In this case, make an u connection and enter the
remote control code 81993 (with u).
■ With the RI Control
Make an u connection and enter the remote
control code 81993 (with u).
• Set the AV receiver’s Input Display to “DOCK”
(➔ page 33).
■ Without the RI Control
You must enter the remote control code 82990 first
(➔ page 49).
■ u Dock operation
Note
• With some iPod/iPhone models, generations and RI Docks,
certain buttons may not work as expected.
• For detailed operation of iPod/iPhone, please refer to the
instruction manual of the RI Dock.
*1
This button does not turn the Onkyo DS-A2 or DS-A2X RI
Dock on or off. Also, your iPod/iPhone may not respond the
first time you press this button, in which case you should press
it again. This is because the remote controller transmits the On
and Standby commands alternately, so if your iPod/iPhone is
already on, it will remain on when the remote controller
transmits the On command. Similarly, if your iPod/iPhone is
already off, it will remain off when the remote controller
transmits the Off command.
*2
TOP MENU works as the mode button when used with the
DS-A2 RI Dock.
*3
DISPLAY turns on backlight for a second.
*4
Resume mode
With the Resume function, you can resume playback of the
song that was playing when you removed your iPod/iPhone
from the RI Dock.

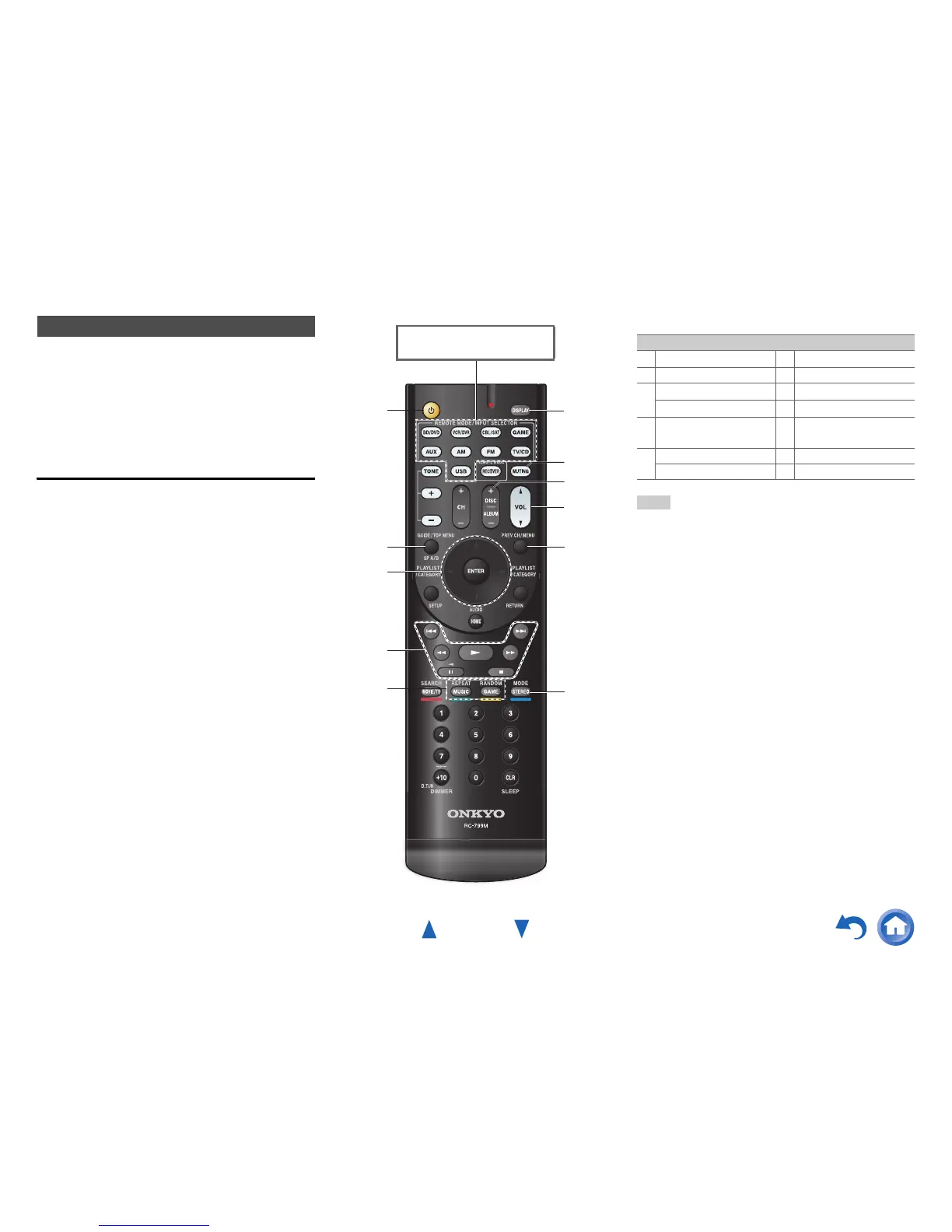

Controlling Your iPod/iPhone
b
c
a
f
d
e
g
i
h
k
j
Press the appropriate REMOTE
MODE button first.
Available buttons
a 8
*1
f
DISPLAY
*3
b
TOP MENU
*2
g
MUTING
c q/w/e/r, ENTER h
ALBUM +/–
PLAYLIST e/r i VOL q/w
d 1, 3, 2, 5, 4,
7, 6
j
MENU
e
REPEAT
k
MODE
*4
RANDOM

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
