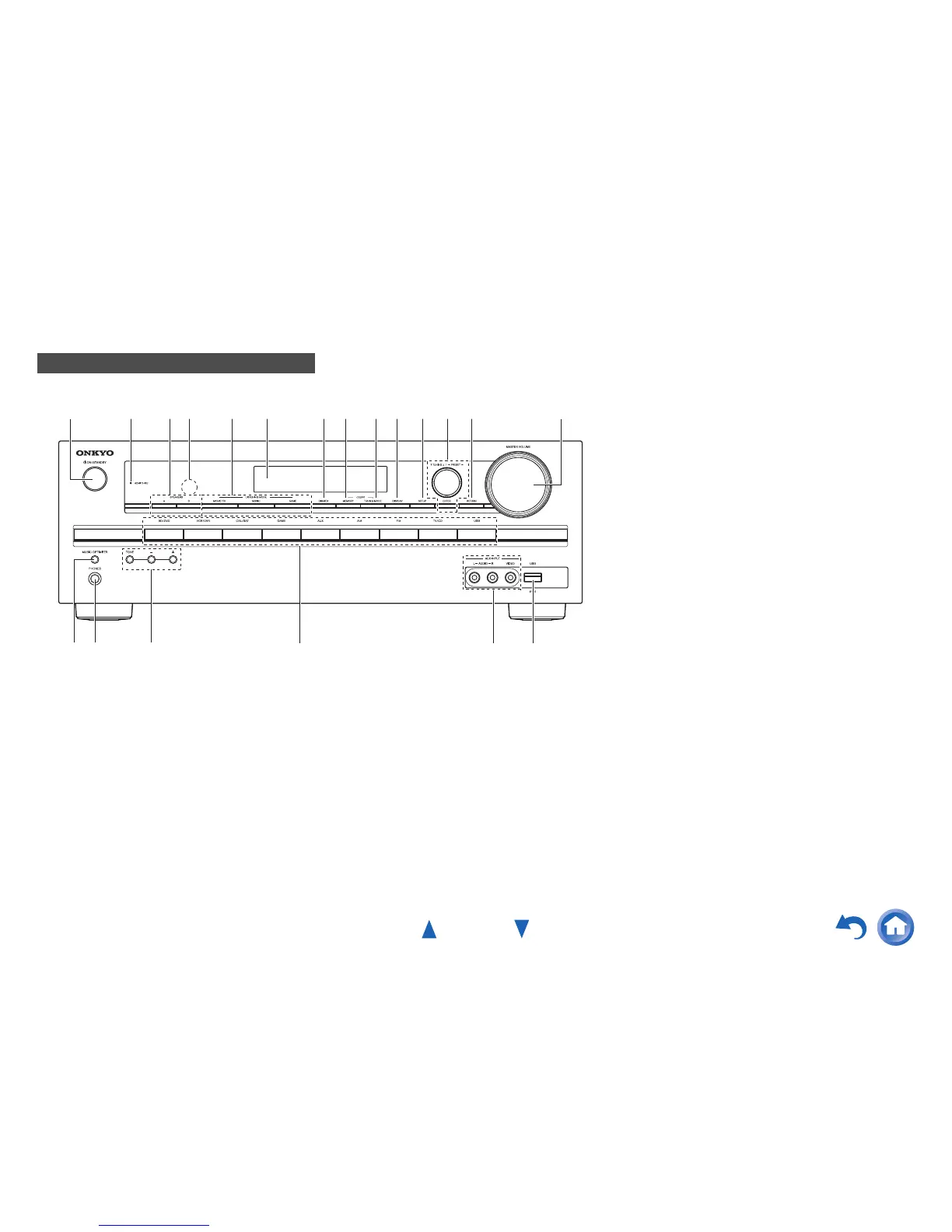

Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (19)
b HDMI THRU indicator (43)
c SPEAKERS A and B buttons (31)
d Remote control sensor (4)
e LISTENING MODE buttons (26)
f Display (8)
g DIMMER button (32)
h MEMORY button (25)
i TUNING MODE button (24)
j DISPLAY button (32)
k SETUP button (35)
l TUNING q/w, PRESET e/r (24), cursor and
ENTER buttons
m RETURN button
n MASTER VOLUME control (20)
o MUSIC OPTIMIZER button (33, 45)
p PHONES jack (34)
q TONE and Tone Level buttons (44)
r Input selector buttons (20)
s AUX INPUT AUDIO and VIDEO jacks (16)
t USB port (16)
Front Panel
a
r s
t
b c
d
e gf h ijklm n
p
qo

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
