Onkyo HT-RC430 User Manual

En-35
Advanced Operations

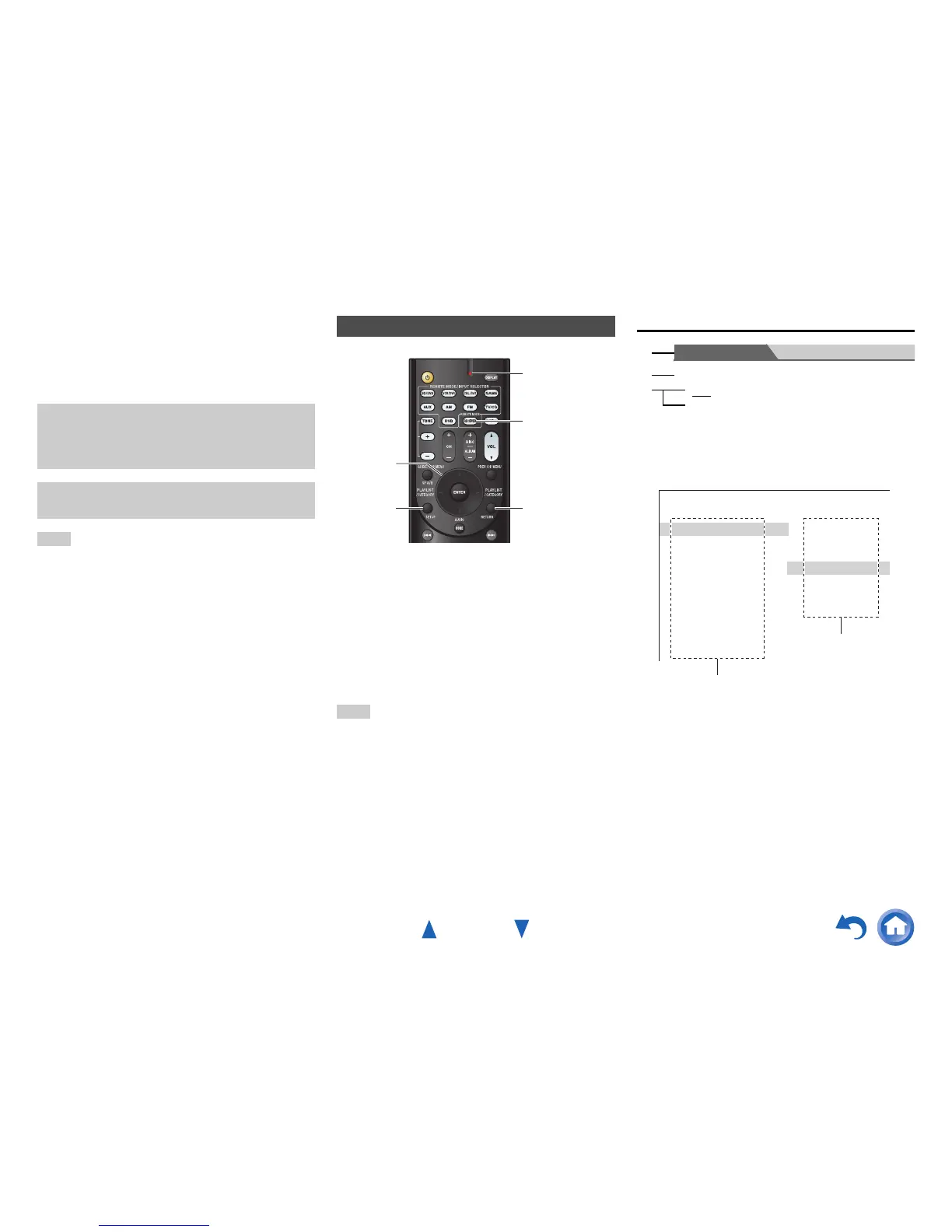

On-screen Setup
The setup menus provides a convenient way to change the
AV receiver’s various settings. Settings are organized into
10 categories.
Note
• The on-screen menus are displayed when:
– There is no video input, or
– The video input is 480p, 576p, 720p, 1080i, or 1080p.
Note
• This procedure can also be performed on the AV receiver by
using SETUP, the cursor buttons, and ENTER.
Explanatory Notes
a Menu selection
b Setting target
c Setting options (default setting underlined)
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
This section describes the procedure for using the
remote controller unless otherwise specified.
Common Procedures in Setup Menu
1
Press RECEIVER followed by SETUP.
2
Use q/w to select a menu item, and then press
ENTER.
3
Use q/w to select a setting target, and use e/r to
change the setting.
Press SETUP to close the menu.
Press RETURN to return to the previous menu.
RETURN
SETUP
RECEIVER
ENTER
q/w/e/r
Remote indicator
Menu Sp Config
■ Subwoofer
` Yes
` No
a
b
c
Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Source Setup
9. Hardware
10. HDMI Setup
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Menu
Setting target

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
