Onkyo HT-RC430 User Manual

Turning On & Basic Operations
En-22
This section describes icons that appear on the AV
receiver’s display during media playback.
This section explains how to play music files on the
iPod/iPhone.
Compatible iPod/iPhone models
Made for:
iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic,
iPod nano (2nd, 3rd, 4th, 5th and 6th generation),
iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
Note
• While the message “Connecting...” appears on the AV receiver’s
display, do not disconnect the USB cable supplied with your
iPod/iPhone or the USB device from the USB port.
• If you connect an iPod or iPhone to the USB port, no sound will
be output from the headphones jack.
Extended Mode Control
The content information is displayed (lists are displayed),
and you can control the content while looking at the screen.
Top screen list:
Playlists, Artists, Albums, Genres, Songs, Composers,
Shuffle Songs, Now Playing.
Standard Mode Control
The content information is not displayed, but can be
operated using the iPod/iPhone or the remote controller.

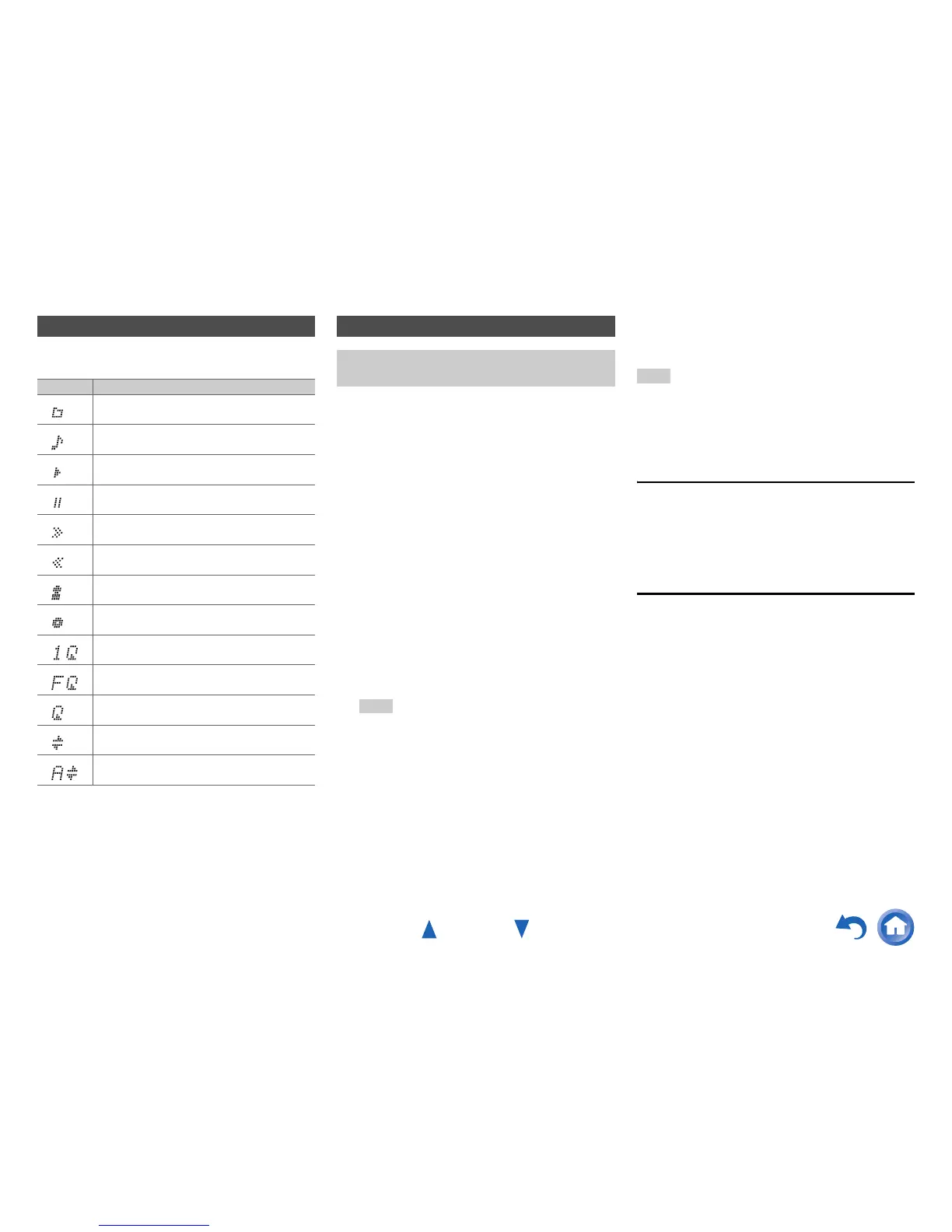

Understanding Icons on the Display
Icon Description
Folder
Track
Playback
Pause
Fast Forward
Fast Reverse
Artist
Album
Repeat One Track
Repeat Folder (USB Device)
Repeat
Shuffle
Shuffle Album (iPod/iPhone)
Playing an iPod/iPhone via USB
The on-screen menus appear only on a TV that is
connected to the HDMI OUT.
1
Press USB to select the “USB” input.
2
Connect the USB cable that comes with the
iPod/iPhone to the USB port on the front of the AV
receiver.
While reading the contents of your iPod/iPhone, the
message “Connecting...” appears on the AV
receiver’s display.
A list of your iPod/iPhone model’s contents appears
(Extended Mode).
3
Use q/w to select a folder, and then press ENTER to
open it.
Tip
• If you want to operate using the iPod/iPhone or the remote
controller, press MODE to switch to Standard mode.
• When you disconnect the iPod/iPhone, the AV receiver
remembers the current mode. This means that if you
disconnect when in Extended Mode, the AV receiver will
start in Extended Mode the next time you connect the
iPod/iPhone.
• You can also use the q/w, ENTER and TUNING MODE
buttons on the front panel. TUNING MODE allows you to
switch modes.
• When connecting your iPod/iPhone with a USB cable, we
recommend you use an official USB cable from Apple Inc.
4
Use q/w to select a music file, and press ENTER or
1 to start playback.

Onkyo HT-RC430 Specifications

General

Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	60 W
HDMI in	4
Audio (L/R) in	6
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Ethernet LAN	No
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
3D	Yes
Supported video modes	1080p
Display	-
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	iPhone, iPod
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	40 W

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
