34
Connecting the AV Receiver/AV Amplifier—Continued
With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs
via the AV receiver/AV amplifier, useful if your TV has no audio outputs.
• With connection , you can listen to and record audio from the video source and listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)

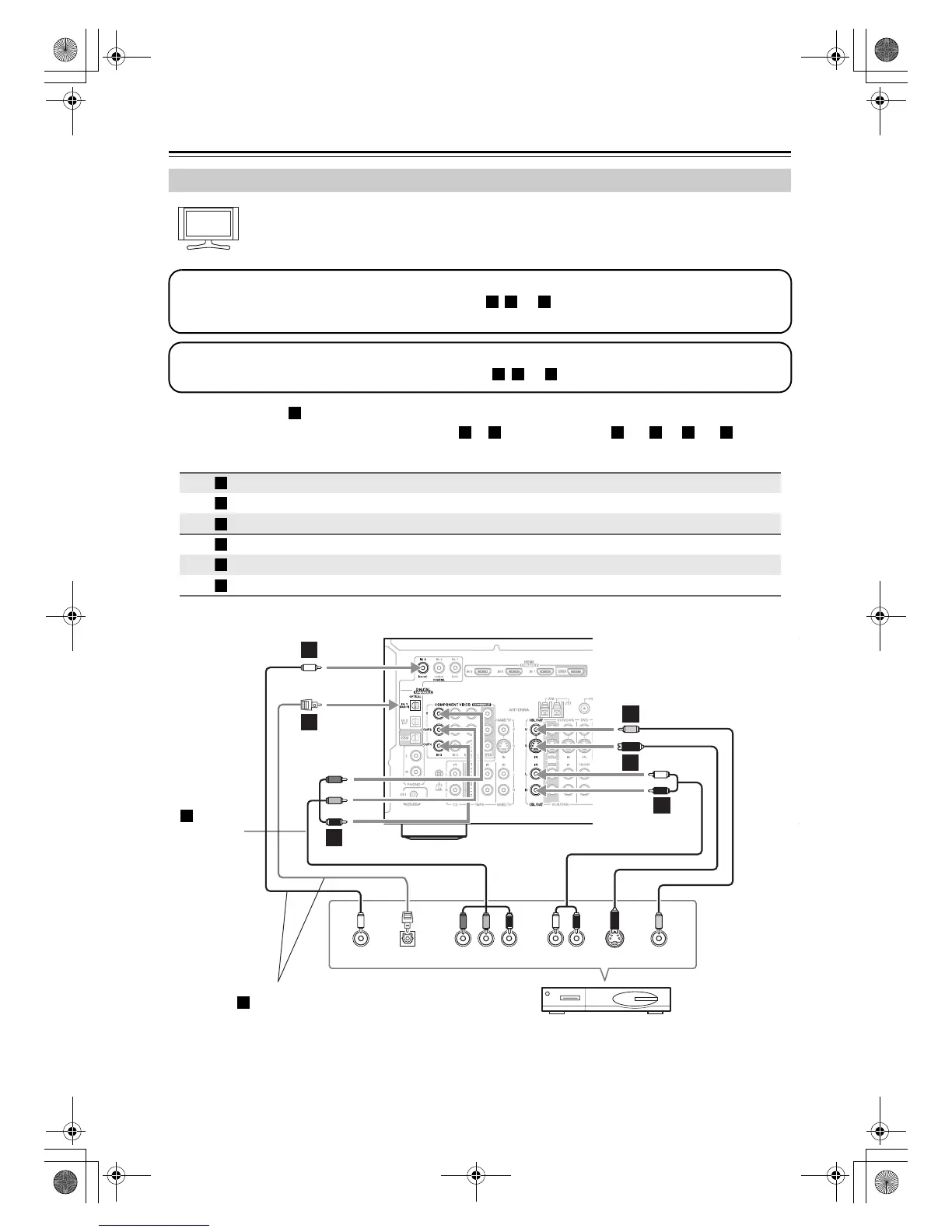

Connecting a Satellite, Cable, Set-top box, or Other Video Source
Connection AV receiver/AV amplifier Signal flow Video source Picture quality
COMPONENT VIDEO IN 3
⇐
Component video output Best
CBL/SAT IN S
⇐
S-Video output Better
CBL/SAT IN V
⇐
Composite video output Standard
CBL/SAT IN L/R
⇐
Analog audio L/R output
DIGITAL COAXIAL IN 3 (CBL/SAT)
⇐
Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME/TV)
⇐
Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches the video source ( , , or
), and then make the connection.
You must connect the AV receiver/AV amplifier to your TV via the same type of connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches the video source ( , , or ), and then make the connection.
a b c
a
b c a b a c
A
B
C
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO OUT
P
R S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
c
A
B
C
B
a
C
Satellite, cable, set-top box, etc.
Connect one or the other
Connection must be assigned (see page 51)
c
Connection
must be
assigned
(see
page 49)
A
TX-SR705_En.book Page 34 Monday, May 28, 2007 2:13 PM
