Connecting the AV Receiver/AV Amplifier—Continued
• With connection , you can play and record and listen in Zone 2.
• To connect the recorder digitally for playback, use connections and , or and .
• To connect the recorder digitally for recording, use connection .

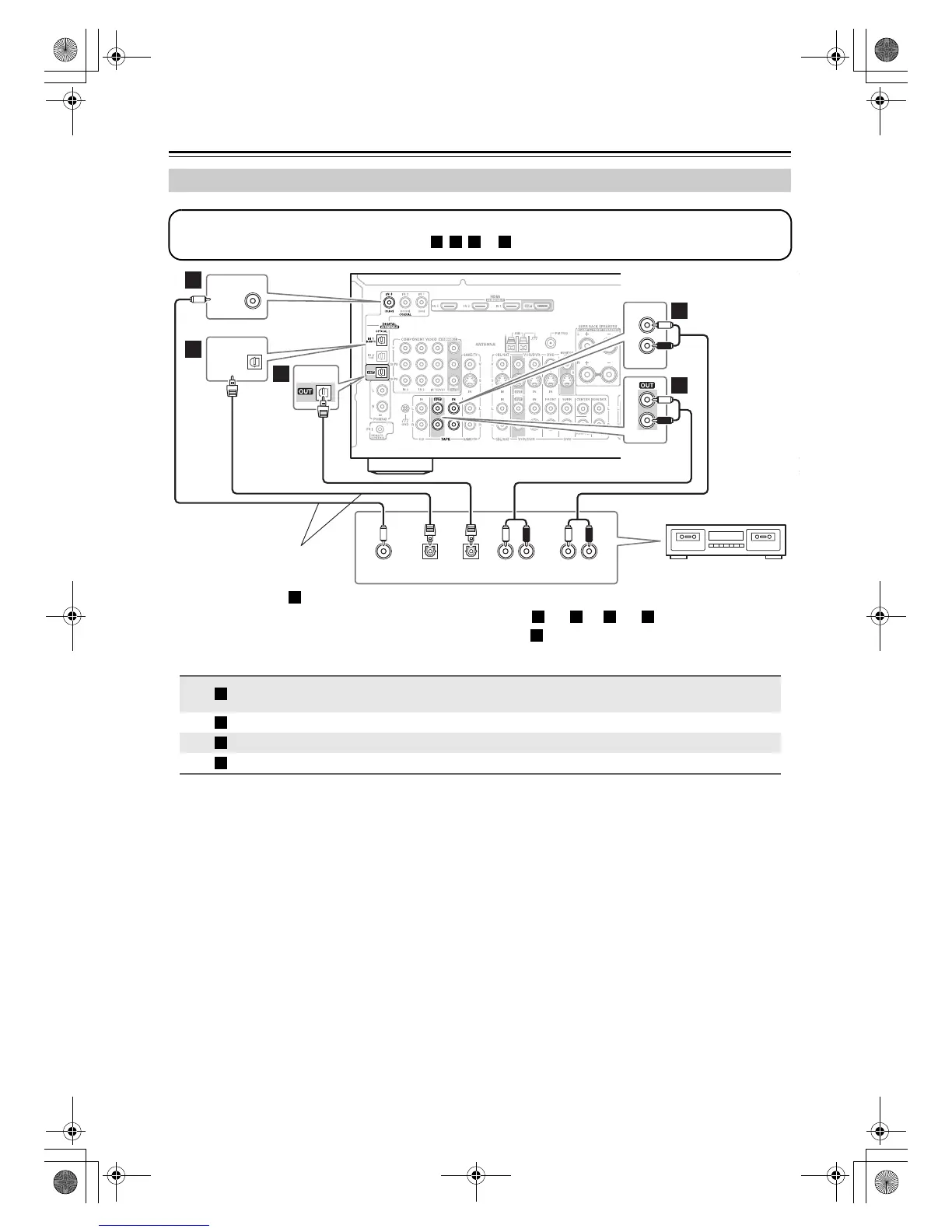

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver/AV amplifier Signal flow Cassette, CDR, MD, or DAT recorder
TAPE IN L/R
TAPE OUT L/R
⇐
⇒
Analog audio L/R output
Analog audio L/R input
DIGITAL COAXIAL IN 3 (CBL/SAT)
⇐
Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME/TV)
⇐
Digital optical output
DIGITAL OPTICAL OUT
⇒
Digital optical input
OPTICAL
IN
OPTICAL
d
COAXIAL
OUT
AUDIO
IN
LR
OPTICAL
OUT
L
R
IN
TAPE
AUDIO
OUT
LR
L
R
TAPE
COAXIAL
OPTICAL
IN 3
(CBL/SAT)
IN 1
(GAME/TV)
b
c
a
a
Step 1:
Choose a connection that matches the recorder ( , , or ), and then make the connection.
a b c d
Cassette, CDR, MD, etc.
Connect one
or the other
a
a b a c
d
a
b
c
d
