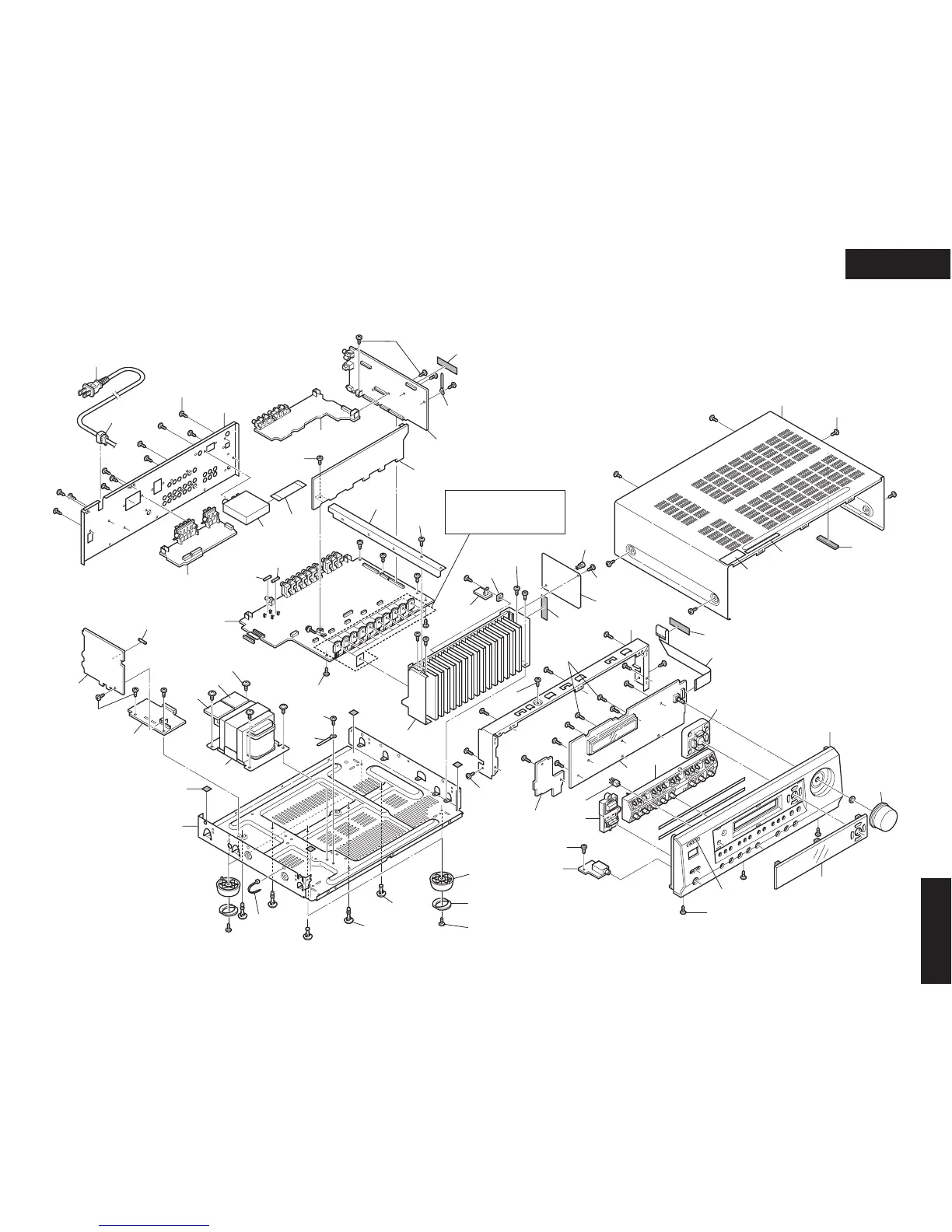

EXPLODED VIEWS-1
A003
x 27 pcs.
A004
x 4 pcs.
A051
x 6 pcs.
A004
x 2 pcs.
A004
x 4 pcs.
A023
x 4 pcs.
A004
x 3 pcs.
A003
x 2 pcs.
A013
x 6 pcs.
A015
x 3 pcs.
A016
x 2 pcs.
A055
x 4 pcs.
A056
x 8 pcs.
A004
x 8 pcs.
A002
x 13 pcs.
U18
P101
P703
T901
P901
F901
A401
A028
A405
A050
A052
A450
A413
U01
U03
U04
U05
U06
U14
U11
U13
U15
U02
U16
U17
U08
U09
A001
A025
A025
A025
A412
A065
A406
A004
A420
A430
A411
A010
A011
A040
A048
A004
A004
A004
x 3pcs
A004
A014
A014
A030
F6901
F6902
A003
x 3 pcs.
Refer to
<Fig-1> in
EXPLODED VIEWS-2
A045
A004
A046
