Remote Controller
—Continued

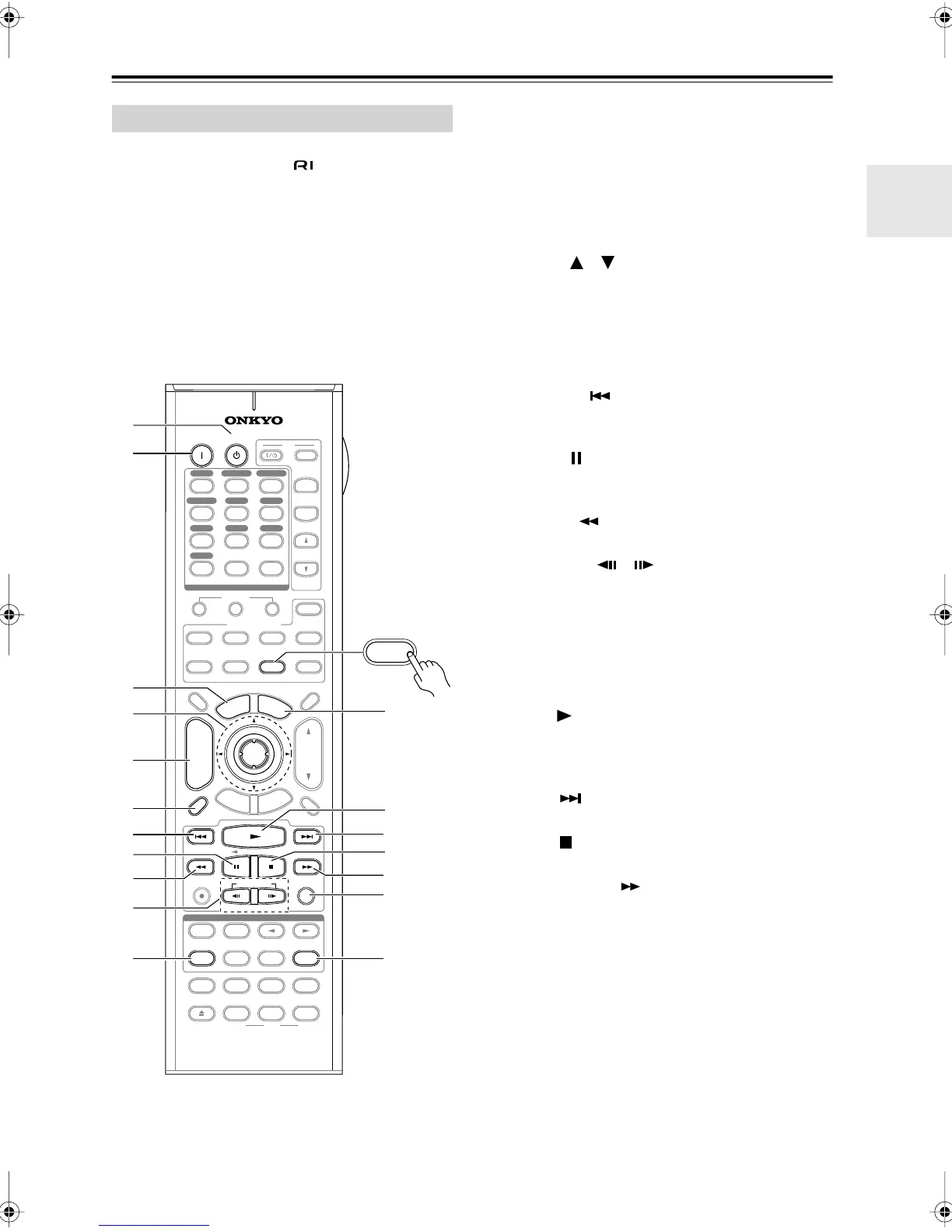

Dock mode is for controlling an Apple iPod in an Onkyo
RI Dock that’s connected via .
When Using an RI Dock:
• Connect the RI Dock to the TAPE IN or GAME/TV
IN L/R jacks.
• Set the RI Dock’s RI MODE switch to HDD.
• Set the AV receiver’s Input Display to DOCK (see
page 51).
• See to the RI Dock’s instruction manual for more
information.
A
STANDBY button
Turns off the iPod.
B
ON button*
Turns on the iPod.
C
TOP MENU button
Works as a Mode button when used with a DS-A2
RI Dock.
D
Arrow [ ]/[ ] and ENTER buttons*
Used to navigate menus and select items.
E
ALBUM +/– button*
Selects the next or previous album.
F
DISPLAY button*
Turns on the backlight for 30 seconds.
G
Previous [ ] button
Restarts the current song. Press it twice to select the
previous song.
H
Pause [ ] button
Pauses playback. (With 3rd generation iPods, it
works as a Play/Pause button.)
I
Rewind [ ] button
Press and hold to rewind.
J
PLAYLIST [ ]/[ ] buttons*
Used to select the previous or next playlist on the
iPod.
K
REPEAT button*
Used with the repeat function.
L
MENU button*
Used to access menus.
M
Play [ ] button
Starts playback. If the component is off, it will turn
on automatically. (With 3rd generation iPods, this
button works as a Play/Pause button.)
N
Next [ ] button
Selects the next song.
O
Stop [ ] button
Stops playback and displays a menu.
P
Fast Forward [ ] button
Press and hold to fast forward.
Q
RANDOM button*
Used with the shuffle function.
R
PLAY MODE button
Used to select play modes on components with
selectable play modes.
Works as a Resume button when used with a DS-A2
RI Dock.
*Buttons marked with an asterisk (*) are not supported
by 3rd generation iPods.
DOCK Mode
