50
First Time Setup
—Continued
If you connect a video component to a COMPONENT
VIDEO IN, you must assign that input to an input
selector. For example, if you connect your DVD player
to COMPONENT VIDEO IN 3, you must assign COM-
PONENT VIDEO IN 3 to the DVD input selector.
By default, the DVD input selector is assigned to COM-
PONENT VIDEO IN 1, and all of the other input selec-
tors (i.e., VCR/DVR, CBL/SAT, GAME/TV, AUX 1,
AUX 2, TAPE, TUNER, CD, PHONO) are assigned to
the “- - -” option.
If you’ve connected your TV to the AV receiver with a
component video cable, you can set the AV receiver so
that composite video and S-Video sources are upcon-
verted (
*
) and output by the COMPONENT VIDEO
OUT. You can set this for each input selector by selecting
the “- - -” option.

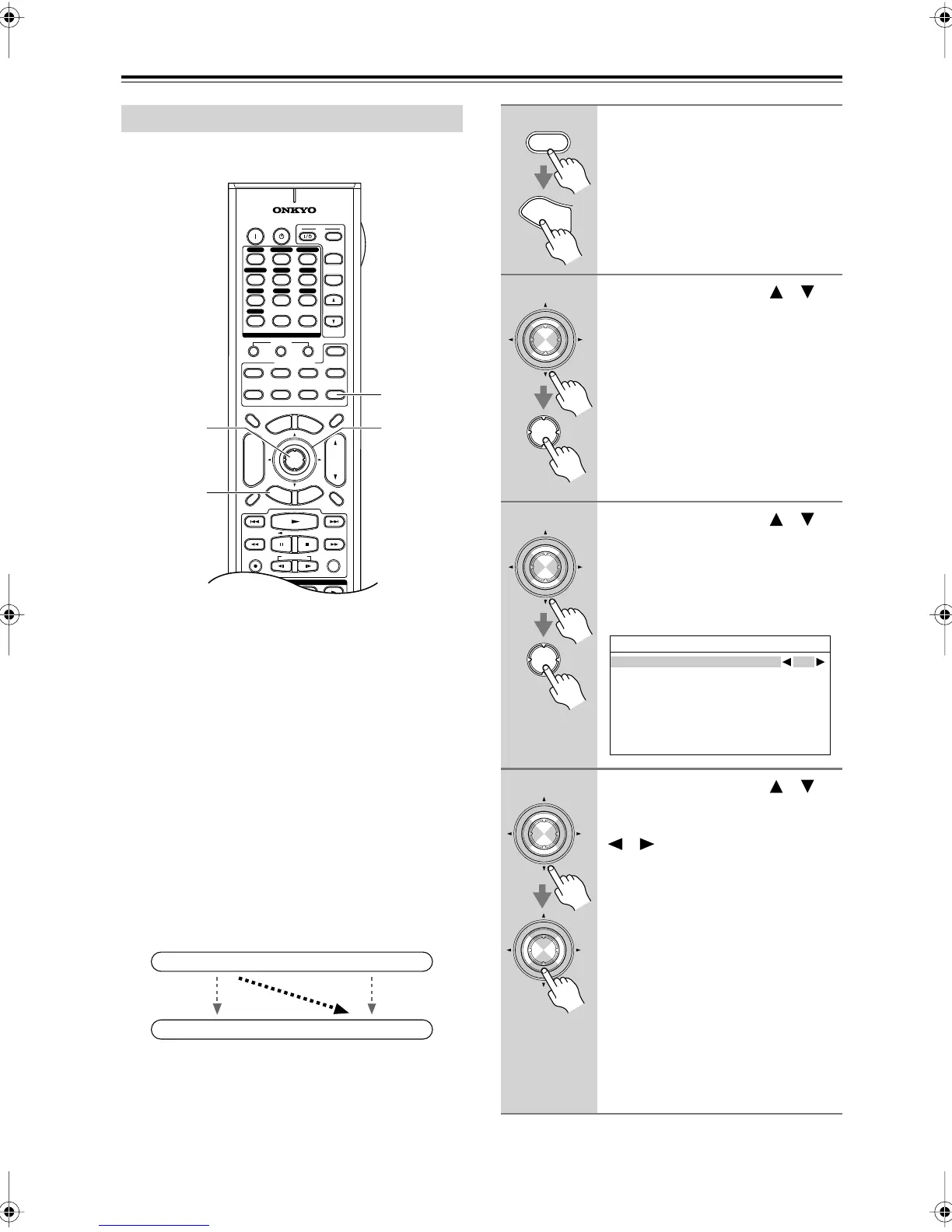

Component Video Input Setup
INPUT SELECTOR
LISTENING MODE
ON STANDBY
DISPLAY MUTING
G
U
I
D
E
E
X
I
T
PREV
CH
DIMMER
CDR/MD
SAT
TAPE/AMP
SLEEP
MACRO
REMOTE MODE
SUBTITLE
AUDIO
REPEAT
PLAY MODE
--
/
---
10 11 12
TV
TV CH
TV VOL
PLAYLIST
RANDOM
DVD
AUX1 AUX
2
GAME/TV
CBL/SATVCR/DVR
D. TUN
CD
TUNER
TAPE
PHONO
REC
ENTER
SURR
STEREO
T
O
P
M
E
N
U
M
E
N
U
VOL
CH
DISC
ALBUM
TV
VCR
CABLE DOCK
DVD
RECEIVER
CD
+
-
12
3
ZONE
3
ZONE
2
INPUT
+
-
+10
0
CLEAR
123
456
789
S
E
T
U
P
R
E
T
U
R
N
2, 3
2–4
1
1, 5
IN
OUT
(
*
)
Composite video, S-Video
Composite video, S-Video
Component video
Component video
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
The main menu appears onscreen.
2
Use the Up and Down [ ]/[ ]
buttons to select “1. Input/Output
Assign,” and then press
[ENTER].
The Input/Output Assign menu
appears.
3
Use the Up and Down [ ]/[ ]
buttons to select “3. Component
Video Input,” and then press
[ENTER].
The Component Video Input menu
appears.
4
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and use the Left and Right
[ ]/[ ] buttons to select:
IN1:
Select if the video component
is connected to COMPO-
NENT VIDEO IN 1.
IN2:
Select if the video component
is connected to COMPO-
NENT VIDEO IN 2.
IN3:
Select if the video component
is connected to COMPO-
NENT VIDEO IN 3.
- - -:
Select to output composite
video and S-Video sources
from the COMPONENT
VIDEO OUT.
RECEIVER
S
E
T
U
P
ENTER
ENTER
ENTER
ENTER
1-3.Component Video Input
DVD
IN1
VCR/DVR ---
CBL/SAT ---
GAME/TV ---
AUX1 ---
AUX2 ---
ENTER
ENTER
TX-SR805875En.book Page 50 Thursday, April 26, 2007 3:00 PM
