Onkyo TX-SR805

39
Connecting Your Components —Continued

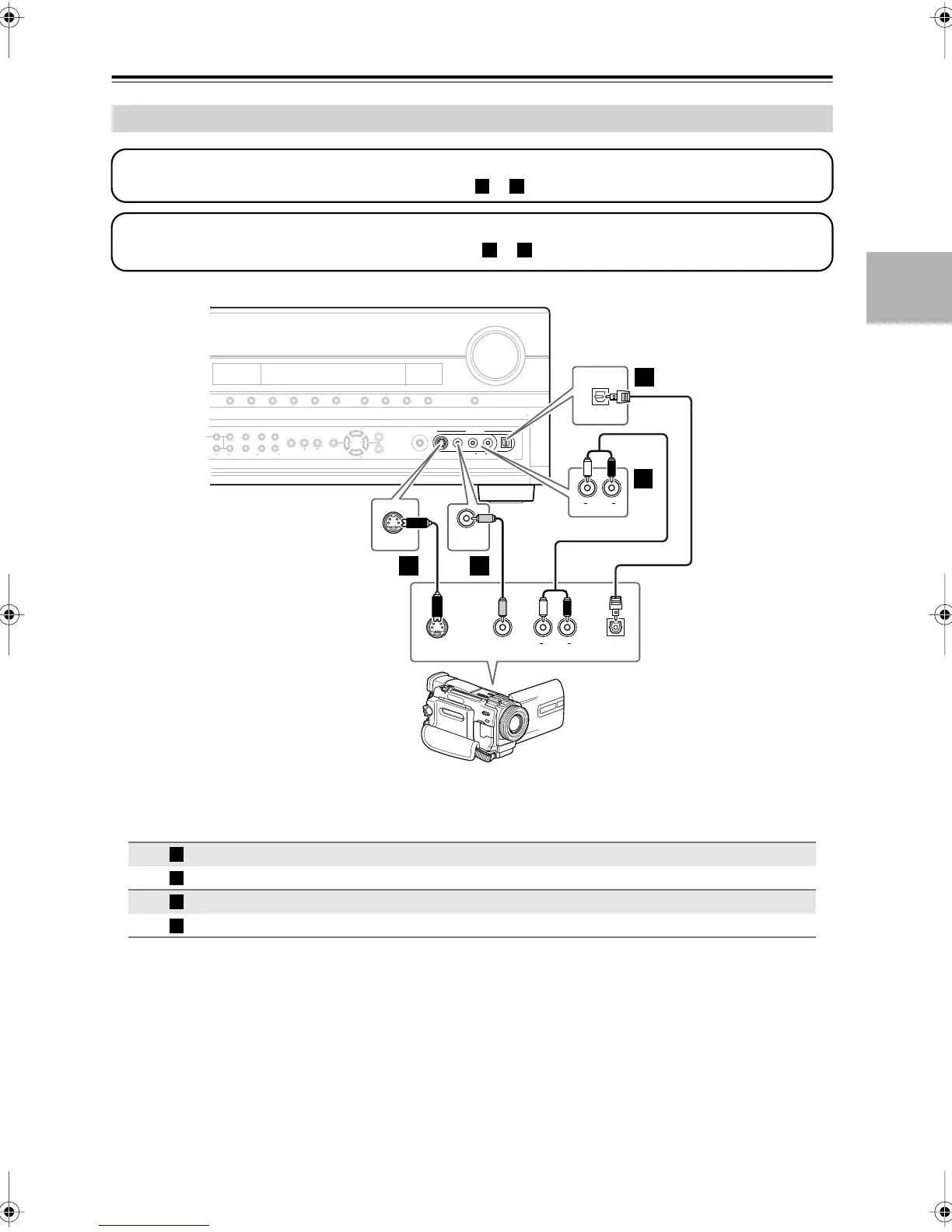

Connecting a Camcorder or Other AV Component
Connection AV receiver Signal flow Camcorder
AUX 2 INPUT S VIDEO
⇐
S-Video output
AUX 2 INPUT VIDEO
⇐
Composite video output
AUX 2 INPUT L/R
⇐
Analog audio L/R output
AUX 2 INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your camcorder ( or ), and then make the connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches your camcorder ( or ), and then make the connection.
a b
TONE HDMI OUT
DIGITAL INPUT
LEVEL STEREO THX
DIMMER MEMORY
LISTENING MODE
TUNING
MODE
SETUP
PRESET
TUNING
TUNING
RETURN
ENTER
SETUP MIC
VIDEO
S VIDEO
DIGITAL
AUX 2 INPUT
AUDIOLR
CLEAR
MASTER VOLUME
CDTUNER
TAPECBL/SAT GAME/TV AUX 1
AUX 2VCR/DVR
DVD PHONO
DISPLAY
PUSH TO OPEN
DIGITAL
S VIDEO
INPUT
INPUT
OPTICAL
OUT
AUDIO
INPUT
VIDEO
INPUT
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
B
A
a
b
Camcorder, etc.
A
B
a
b
