Onkyo TX-SV525

10

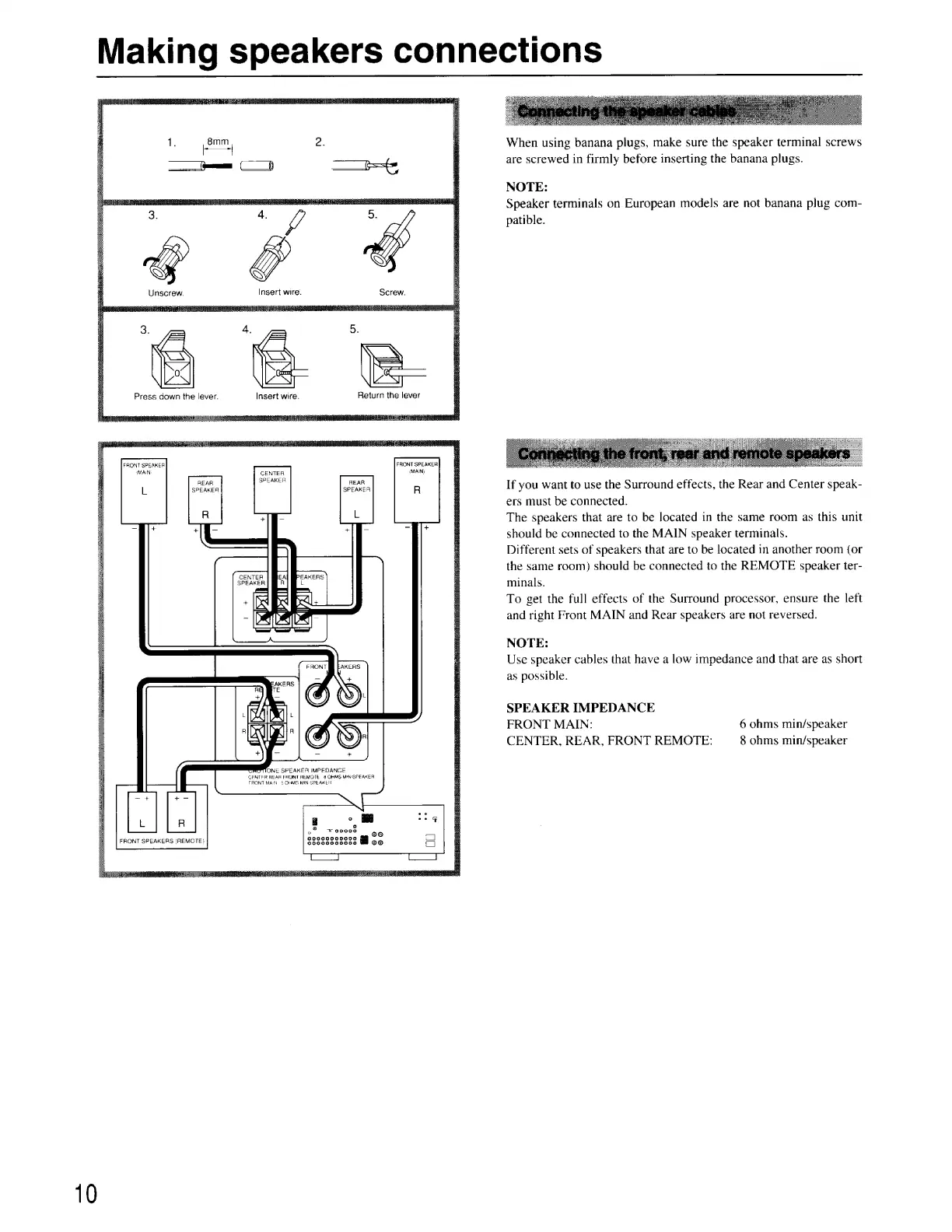

Making speakers connections
Press down the lever.
FRONT SPEAKER
AMAIN:
REAR
SPEAKER
FRONT SPEAKERS [REMOTFE}
Ly
kp
Insert wire.
Insert wire.
CENTEA
SPEAKER
Return the lever
FRONT SPEAKER
iMAINI
REAR
SPEAKER
GENTFR REAR FRONT REMOTE 9 OHMS MiNSPEAKER
FRONT MaAcN & OHMS MIN-SPE ARLH
When using banana plugs, make sure the speaker terminal screws
are screwed in firmly before inserting the banana plugs.
NOTE:
Speaker terminals on European models are not banana plug com-
patible.
aT
If you want to use the Surround effects, the Rear and Center speak-
ers must be connected.
The speakers that are to be located in the same room as this unit
should be connected to the MAIN speaker terminals.
Different sets of speakers that are to be located in another room (or
the same room) should be connected to the REMOTE speaker ter-
minals.
To get the full effects of the Surround processor, ensure the left
and right Front MAIN and Rear speakers are not reversed.
NOTE:
Use speaker cables that have a low impedance and that are as short
as possible.
SPEAKER IMPEDANCE
FRONT MAIN: 6 ohms min/speaker
CENTER, REAR, FRONT REMOTE: 8 ohms min/speaker
