Onkyo TX-SV525

Subwoofer with a built-in amplifier
USA and Canadian models
°
FT agsedo
oo
a0gocoaco0o0n
gooocodooD | [ole
0
o
a
Worldwide and European models
TX- i
SV525/R
Green
or
Grey
Black
RIREMOTE
©
mR
CONTROL
La
*
a
COMPACT
OISG PLAYER
RI
AEMOTE
Ot
Be
©)
CONTROL @ y—
CASSETTE
TAPE DECK
FAI REMOTE ©O 4
CONTROL eo

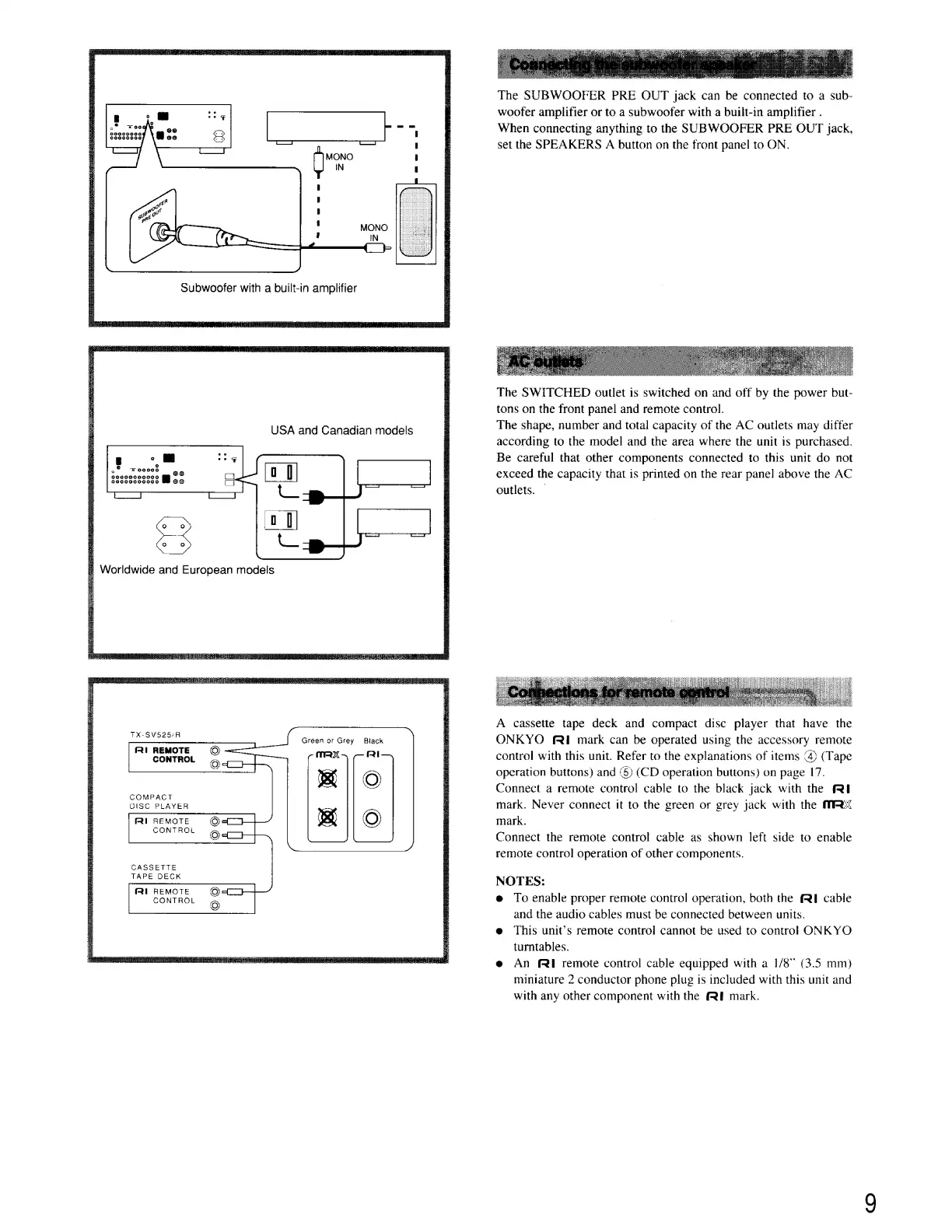

The SUBWOOFER PRE OUT jack can be connected to a sub-
woofer amplifier or to a subwoofer with a built-in amplifier .
When connecting anything to the SUBWOOFER PRE OUT jack,
set the SPEAKERS A button on the front panel to ON.
Sr
The SWITCHED outlet is switched on and off by the power but-
tons on the front panel and remote control.
The shape, number and total capacity of the AC outlets may differ
according to the model and the area where the unit is purchased.
Be careful that other components connected to this unit do not
exceed the capacity that is printed on the rear panel above the AC
outlets.
A cassette tape deck and compact disc player that have the
ONKYO fli mark can be operated using the accessory remote
control with this unit. Refer to the explanations of items “4 (Tape
operation buttons) and () (CD operation buttons) on page 17.
Connect a remote control cable to the black jack with the Ra
mark. Never connect it to the green or grey jack with the MARX
mark.
Connect the remote control cable as shown left side to enable
remote control operation of other components.
NOTES:
e To enable proper remote control operation, both the RI cable
and the audio cables must be connected between units.
e@ This unit’s remote control cannot be used to control ONKYO
turntables.
@ An Rl remote control cable equipped with a 1/8” (3.5 mm)
miniature 2 conductor phone plug is included with this unit and
with any other component with the # mark.
