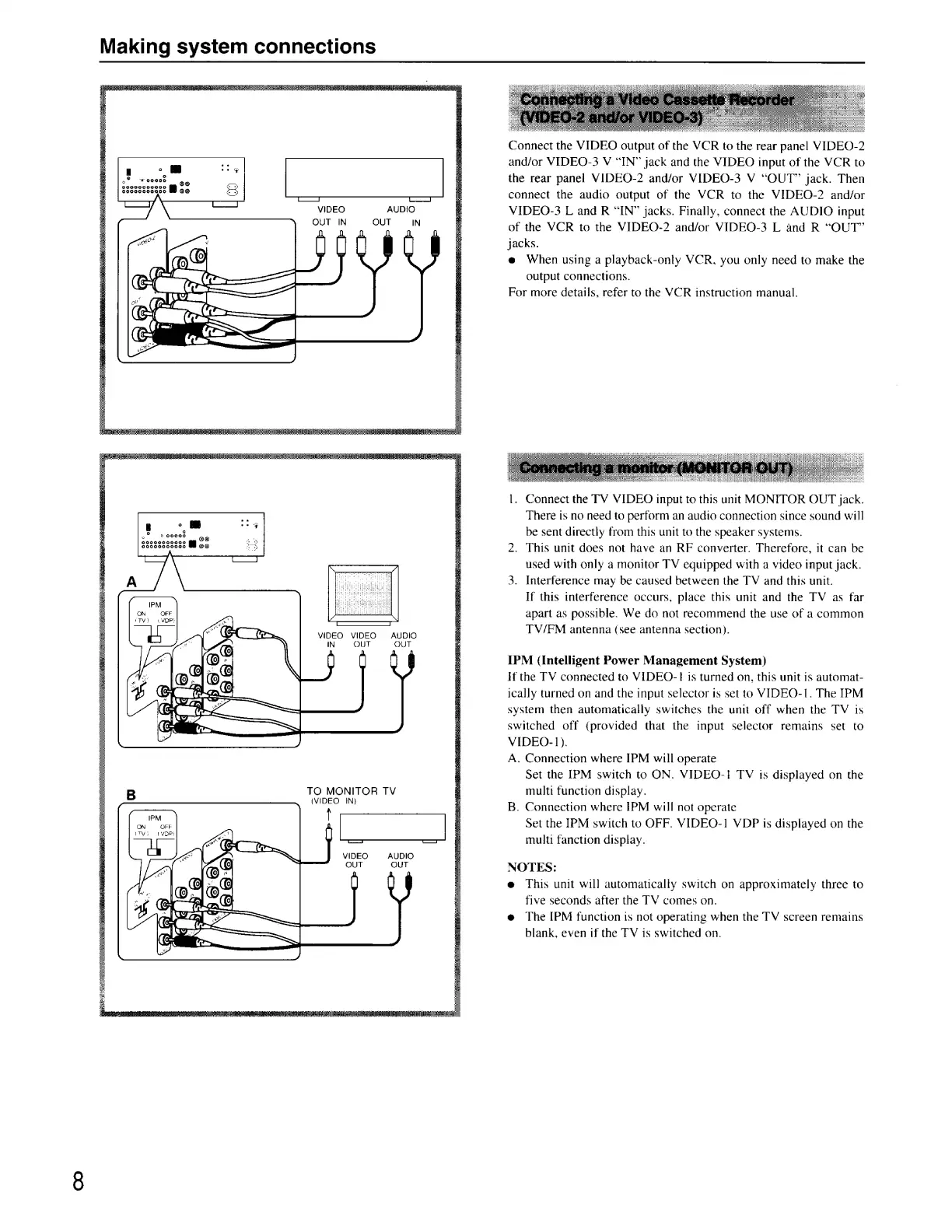

Making system connections
VIDEO VIDEO AUDIO
IN OUT OUT
TO MONITOR TV
(VIDEO IN)
VIDEO AUDIO
OUT OUT
Connect the VIDEO output of the VCR to the rear panel VIDEO-2
and/or VIDEQO-3 V “IN” jack and the VIDEO input of the VCR to
the rear panel VIDEO-2 and/or VIDEO-3 V “OUT” jack. Then
connect the audio output of the VCR to the VIDEQO-2 and/or
VIDEO-3 L and R “IN” jacks. Finally, connect the AUDIO input
of the VCR to the VIDEO-2 and/or VIDEO-3 L and R “OUT”
jacks.
e@ When using a playback-only VCR, you only need to make the
output connections.
For more details, refer to the VCR instruction manual.
1. Connect the TV VIDEO input to this unit MONITOR OUT jack.
There is no need to perform an audio connection since sound will
be sent directly from this unit to the speaker systems.
2. This unit does not have an RF converter. Therefore, it can be
used with only a monitor TV equipped with a video input jack.
3. Interference may be caused between the TV and this unit.
If this interference occurs, place this unit and the TV as far
apart as possible. We do not recommend the use of a common
TV/FM antenna (see antenna section).
IPM (Intelligent Power Management System)
If the TV connected to VIDEO-} is turned on, this unit is automat-
ically turned on and the input selector is set to VIDEO-1. The IPM
system then automatically switches the unit off when the TV is
switched off (provided that the input selector remains set to
VIDEO-1).
A. Connection where IPM will operate
Set the IPM switch to ON. VIDEO-1! TV ts displayed on the
multi function display.
B. Connection where IPM will not operate
Set the IPM switch to OFF. VIDEO-1 VDP is displayed on the
multi fanction display.
NOTES:
e This unit will automatically switch on approximately three to
five seconds after the TV comes on.
e The IPM function is not operating when the TV screen remains
blank, even if the TV is switched on.
