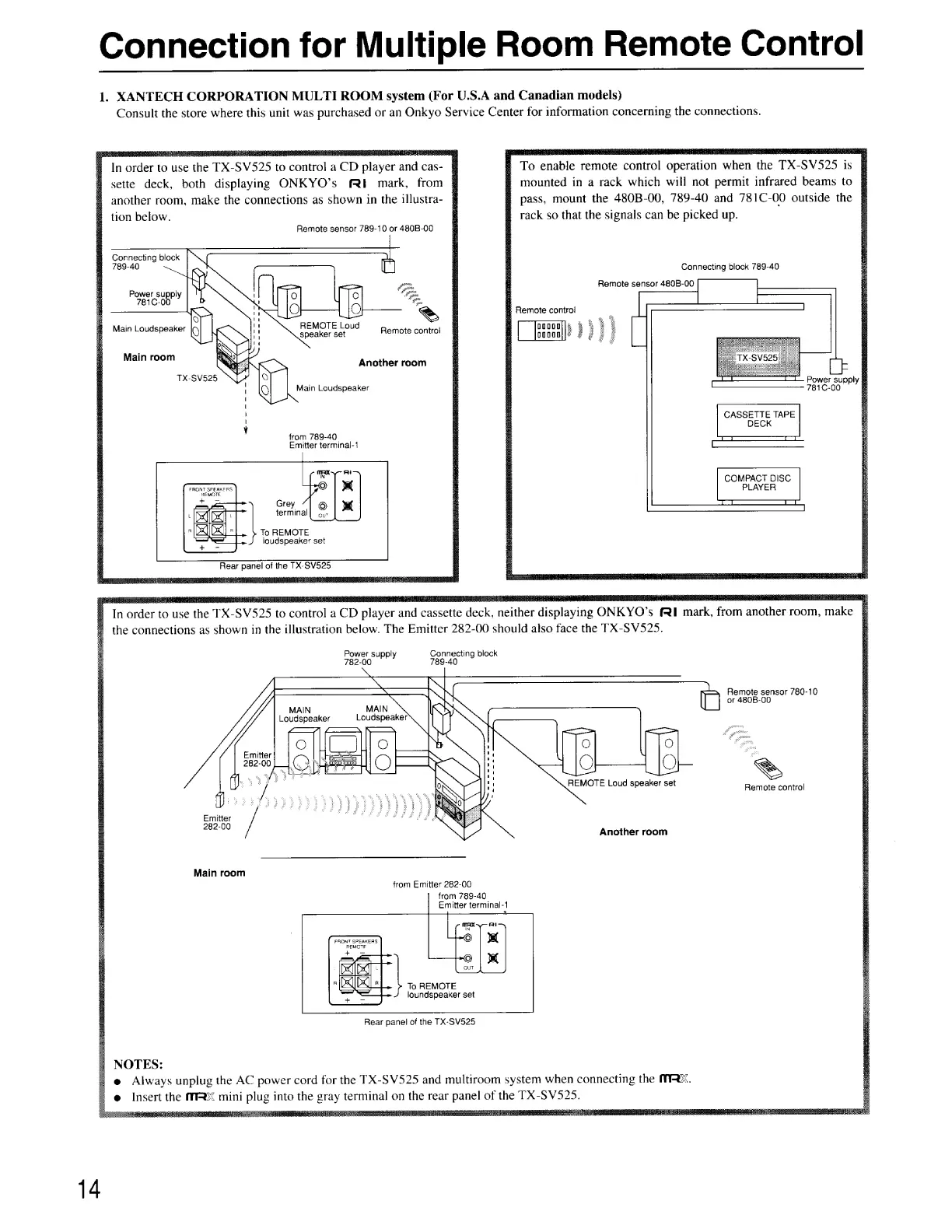

Onkyo TX-SV525

Connection
for
Multiple
Room
Remote
Control
1. XANTECH CORPORATION MULTI ROOM system (For U.S.A and Canadian models)
Consult the store where this unit was purchased or an Onkyo Service Center for information concerning the connections.
In order to use the TX-SV525 to control a CD player and cas-
sette deck, both displaying ONKYO’s fRE mark, from
another room, make the connections as shown in the illustra-
tion below.
To enable remote control operation when the TX-SV525 is
mounted in a rack which will not permit infrared beams to
pass, mount the 480B-00, 789-40 and 781C-00 outside the
rack so that the signals can be picked up.
Remote sensor 789-10 or 480B-00
Connecting block
789-40 Connecting block 789-40
Remote sensor 480B-00
Poo oo
Remote contro!
REMOTE Loud
speaker set
Main Loudspeaker Remote contro!
Main room
Another room
TX-SV525 Power supply
7810-00
Main Loudspeaker
CASSETTE TAPE
DECK
from 789-40
Emitter terminal-1
COMPACT DISC
PLAYER
FRONT SPEAKERS
Grey
To REMOTE
loudspeaker set
Rear panel of the TX-SV525
In order to use the TX-SV525 to control a CD player and cassette deck, neither displaying ONKYO’s I mark, from another room, make
the connections as shown in the illustration below. The Emitter 282-00 should also face the TX-SV525.
Power suppl
782-00 PPY
Connecting block
789-40
c=, Remote sensor 780-10
T or 480B-00
ap *,
REMOTE Loud speaker set
Emitter
282-00
“ nM
Emitter
282-00
Main room
Mee eee ee
Remote control
Another room
from Emitter 282-00
from 789-40
Emitter terminal-1
FRONT SPEARERS
REMOTE
To REMOTE
loundspeaker set
Rear panel of the TX-SV525
NOTES:
e@ Always unplug the AC power cord for the TX-SV525 and multiroom system when connecting the NMRX.
e Insert the MTRX mini plug into the gray terminal on the rear panel of the TX-SV525.
