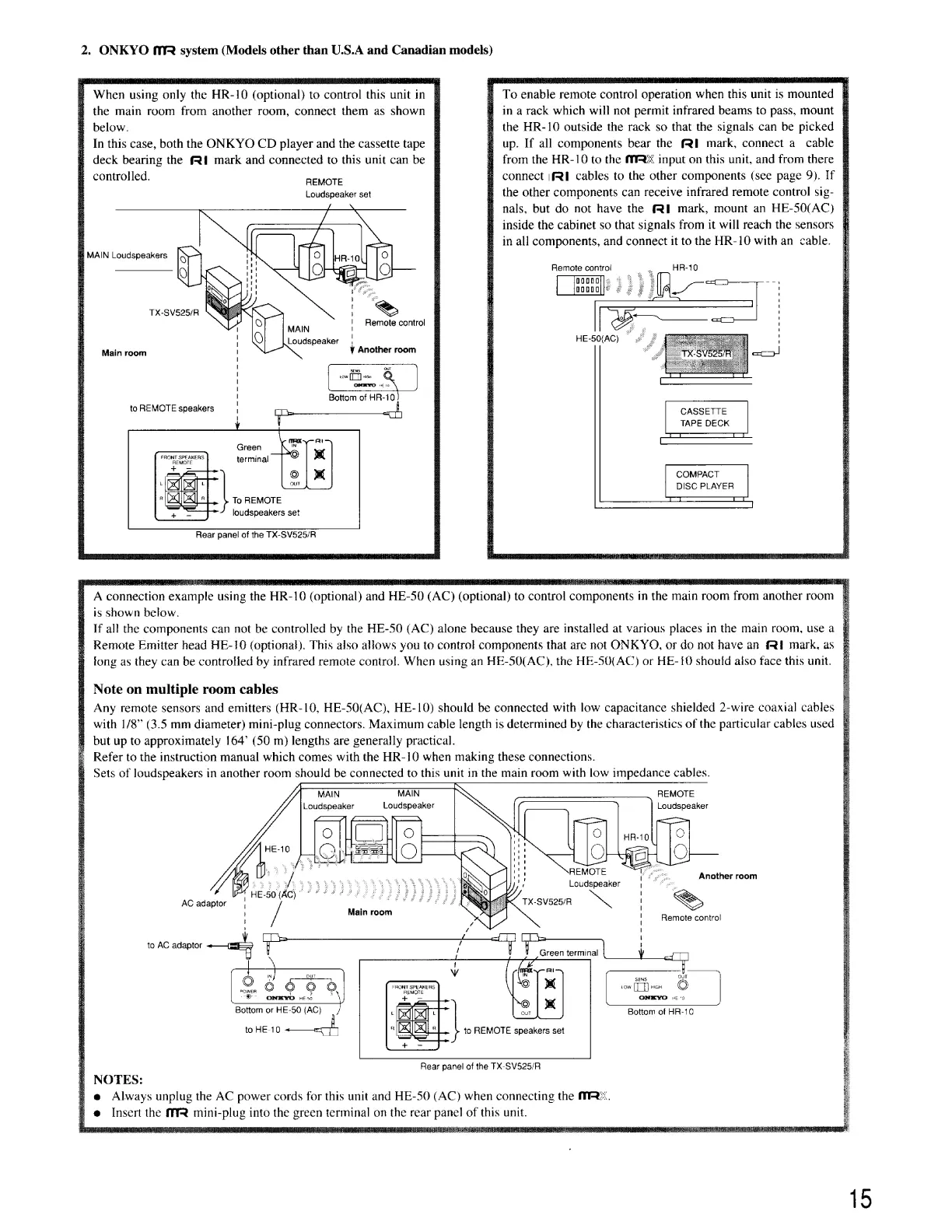

2. ONKYO ff R system (Models other than U.S.A and Canadian models)
To enable remote control operation when this unit is mounted
in a rack which will not permit infrared beams to pass, mount
the HR-10 outside the rack so that the signals can be picked
up. If all components bear the fRI mark, connect a_ cable
from the HR-10 to the MFRXX input on this unit, and from there
connect |RRI cables to the other components (see page 9). If
the other components can receive infrared remote control sig-
nals, but do not have the (QI mark, mount an HE-S50(AC)
inside the cabinet so that signals from it will reach the sensors
in all components, and connect it to the HR-10 with an cable.
When using
the main room from another room, connect them as shown
below.
In this case, both the ONKYO CD player and the cassette tape
deck bearing the QI mark and connected to this unit can be
controlled.
REMOTE
Loudspeaker set
MAIN Loudspeakers
Remote control
poocdl):
goood
TX-8V525/R
Main
room
Another
room
to REMOTE speakers
CASSETTE
TAPE DECK
COMPACT
DISC PLAYER
Green
FRONT SPEAKERS i
EMOTE terminal
To REMOTE
loudspeakers set
Rear panel of the TX-SV525/R
A connection example using the HR-10 (optional) and HE-50 (AC) (optional) to control components in the main room from another room
is Shown below.
If all the components can not be controlled by the HE-50 (AC) alone because they are installed at various places in the main room, use a
Remote Emitter head HE-10 (optional). This also allows you to control components that are not ONK YO, or do not have an QE mark, as
long as they can be controltied by infrared remote control. When using an HE-SO(AC), the HE-S0{AC) or HE-10 shouid aiso face this unit.
Note on multiple room cables
Any remote sensors and emitters (HR-10, HE-50(AC), HE-10) should be connected with low capacitance shielded 2-wire coaxial cables
with 1/8” (3.5 mm diameter) mini-plug connectors. Maximum cable length is determined by the characteristics of the particular cables used
but up to approximately 164’ (50 m) lengths are generally practical.
Refer to the instruction manual which comes with the HR-10 when making these connections.
Sets of loudspeakers in another room should be connected to this unit in the main room with low impedance cables.
MAIN
Loudspeaker
REMOTE
Loudspeaker
MAIN
Loudspeaker
Another room
1 Loudspeaker
HE-50
(AC)
”
°
A)
4
TX-SV525/R
Remote control
SENS GUT
iow [Tuc =O
OMEYO +E‘0
Bottom of HR-10
Bottom or HE-50 (AC}
to HE-10 to REMOTE speakers set
Rear panel of the TX-SV525/R
NOTES:
e Always unplug the AC power cords for this unit and HE-50 (AC) when connecting the MRX.
e Insert the MTR mini-plug into the green terminal on the rear panel of this unit.
